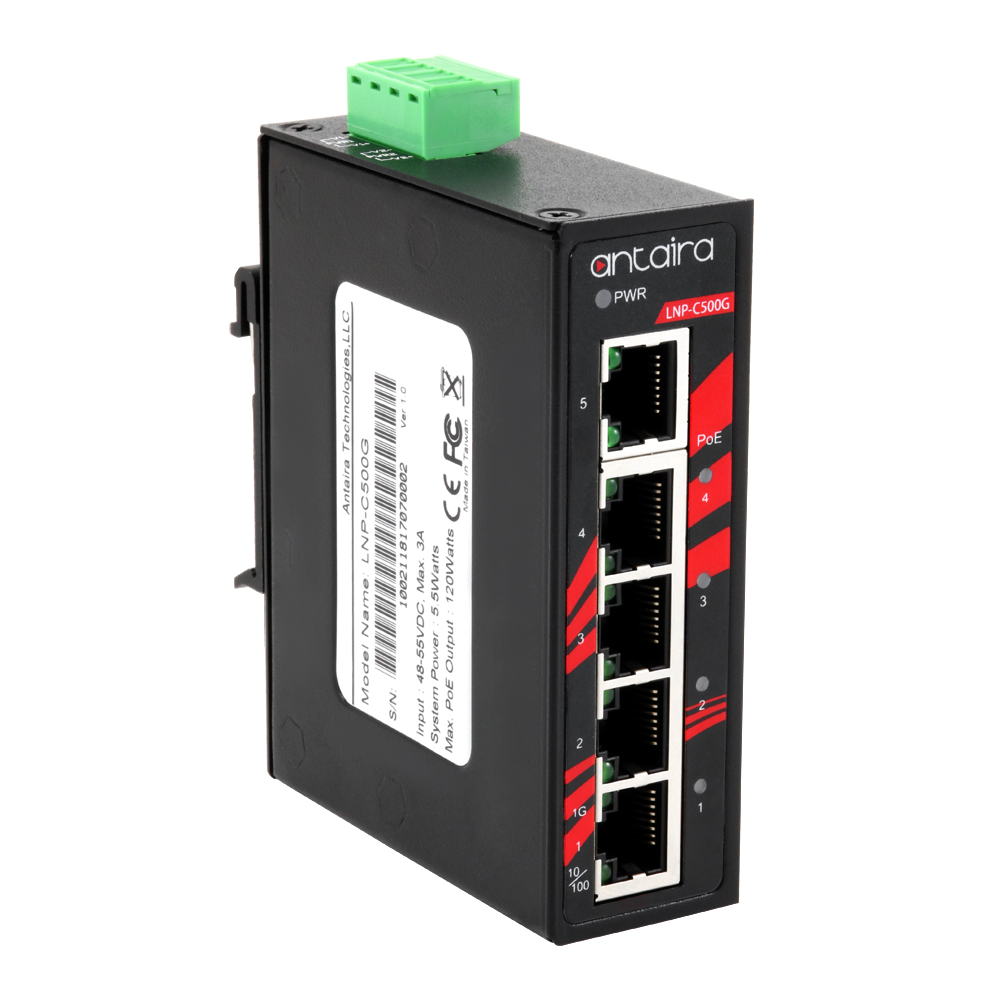

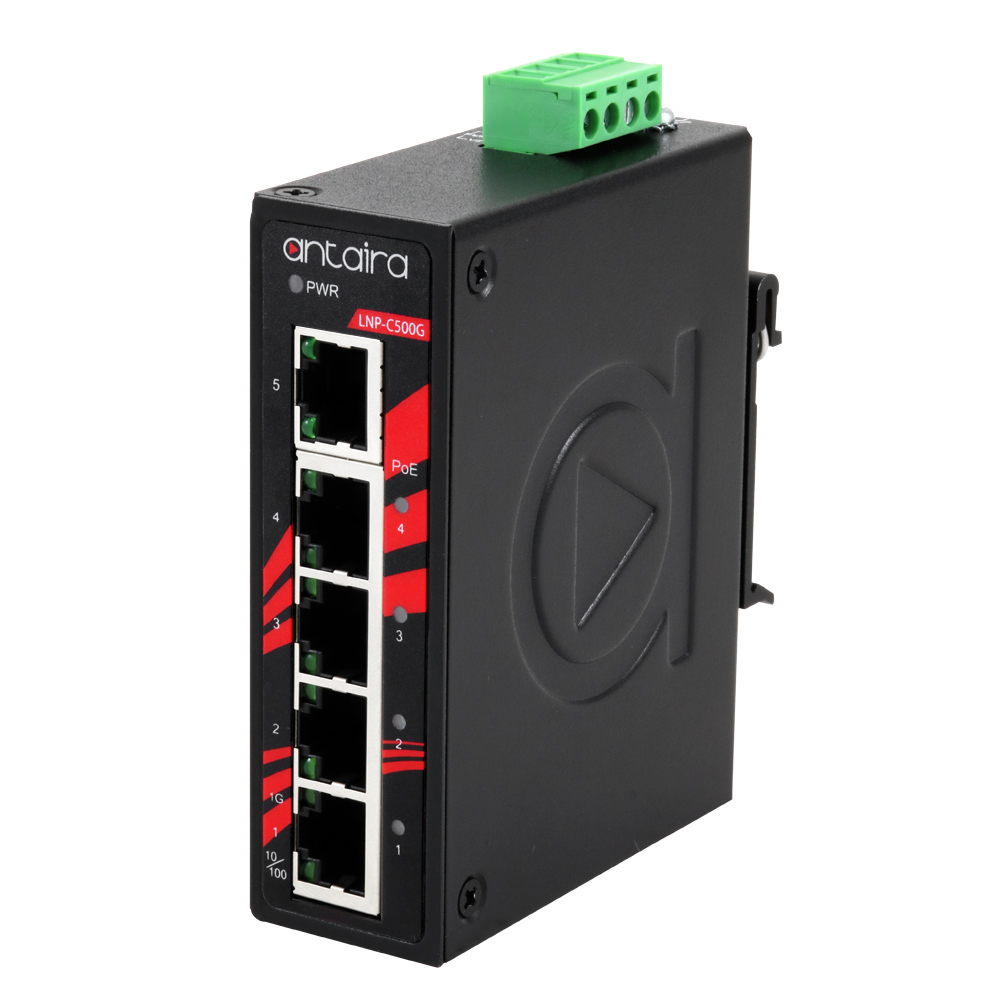

Antaira LNP-C500G

Compact 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/4*10/100/1000Tx (PSE: 30W/Port) + 1*10/100/1000Tx

Mã: LNP-C500G Danh mục: Switch công nghiệp Antaira Từ khóa: LNP-C500G

Mô tả
Sản phẩm liên quan

Antaira Technologies’ LNP-C500G is a compact 5-port industrial gigabit PoE+ unmanaged Ethernet switch. The small form factor of this metal IP30 rated design is 50% smaller allowing for a more versatile implementation. It is equipped with 4*10/100/1000Tx
Ethernet ports that support IEEE 802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx Ethernet port. It can handle high bandwidth applications in tight spaces.

LNP-C500G supports high EFT & ESD protection through the redundant power inputs that support reverse polarity and overload current protection. This model supports DIN-rail as well as wall mountable orientations, and support operating temperature from -10°
to 70° C. This is an industrial grade unit applicable for networking applications in factory automation, ITS, power/utility, water wastewater treatment plants, or any application that needs a compact solution.

Compact Industrial Grade Design
Supports 4*10/100/1000Tx Gigabit Ethernet Ports
(PSE: 30W/Port) and 1*10/100/1000Tx
Supports Auto MDI/MDI-X Function
Jumbo Frame Support: 10k
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 48~55VDC
Power Polarity Reserve Protection
Overload Current Protection
IP30 Rugged Metal Case Design

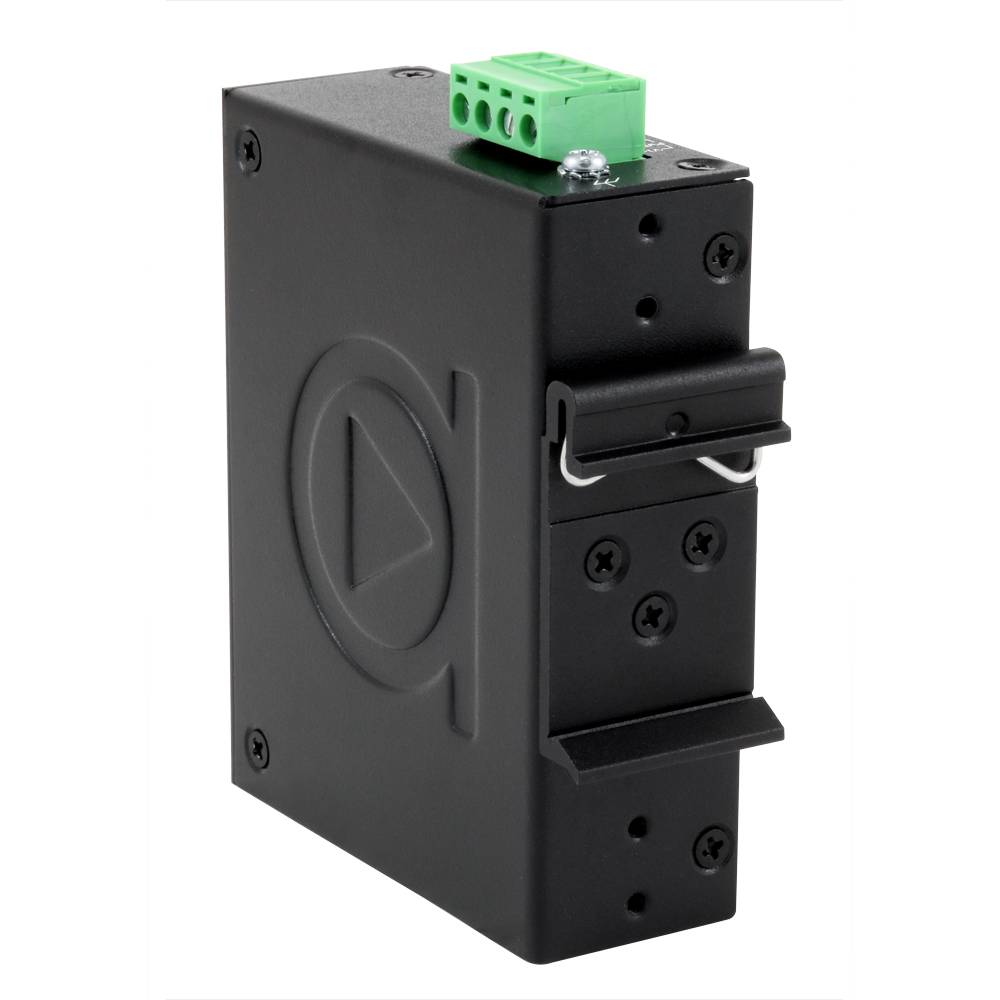

DIN-Rail and Wall Mount Support
Operating Temperature Range:
STD:-10° to 70°C, EOT:-40° to 75°C
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count	5 ports
10/100/1000 BASE-T(X)	5 ports
PoE Port	4 ports (30W/port)
PoE Pin Assignment	V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
Performance
MAC Table Size	8K
Jumbo Frame	10 Kbytes
Memory Buffer	1 Mbit
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Switching Architecture	Back-Plane (Switching Fabric): 10Gbps
Power Requirements
Power Connection	Removable 4-contact terminal block
Input Voltage	48V–55V DC, Redundant Input
Power Redundancy	Yes
System Power Consumption	5.5 Watts
Max. PoE Power Budget	120 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-10° to 70° C (14° to 158° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection
Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	30 × 95 × 75 mm
Weight	Unit weight : 0.77 lb Shipping weight : 0.99 lb
Regulatory Approvals
Certifications	FCC, CE
UL 61010-1 / UL 61010-2-201	✔
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6
Green	RoHs Compliant
Warranty	5 years
