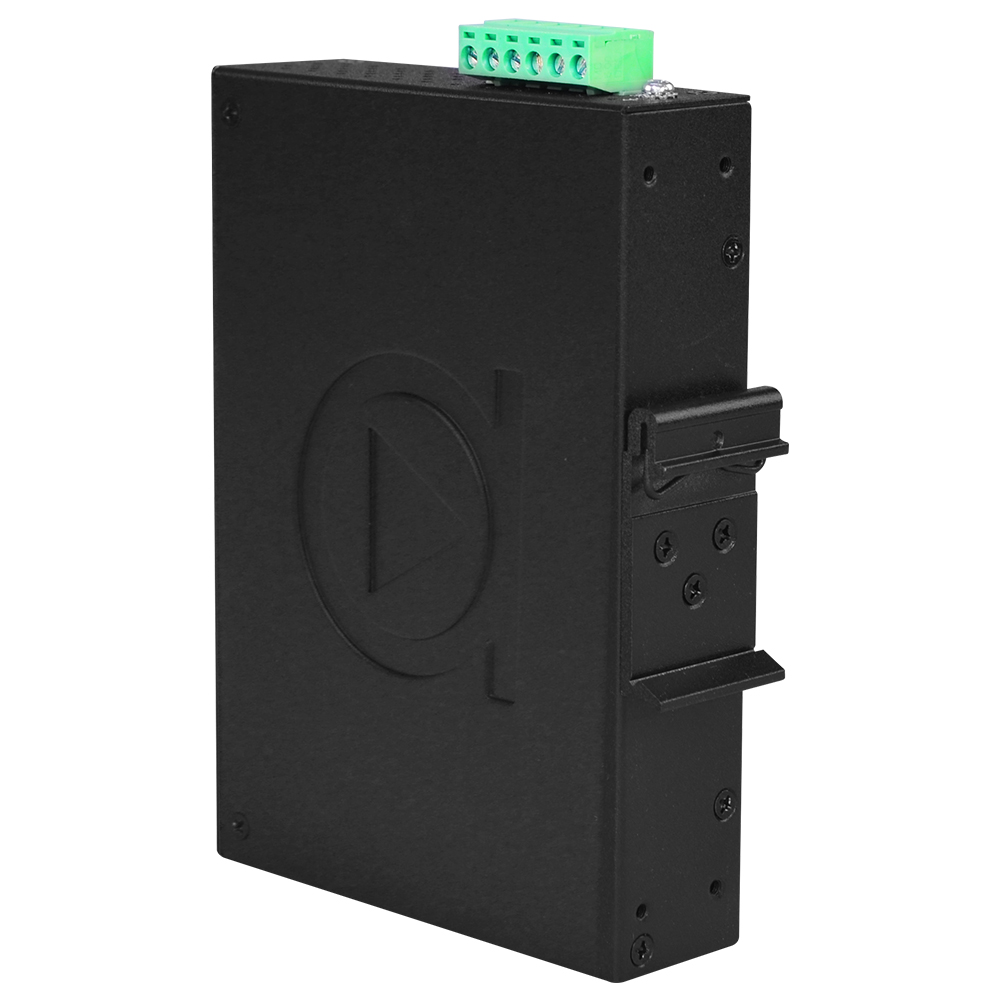

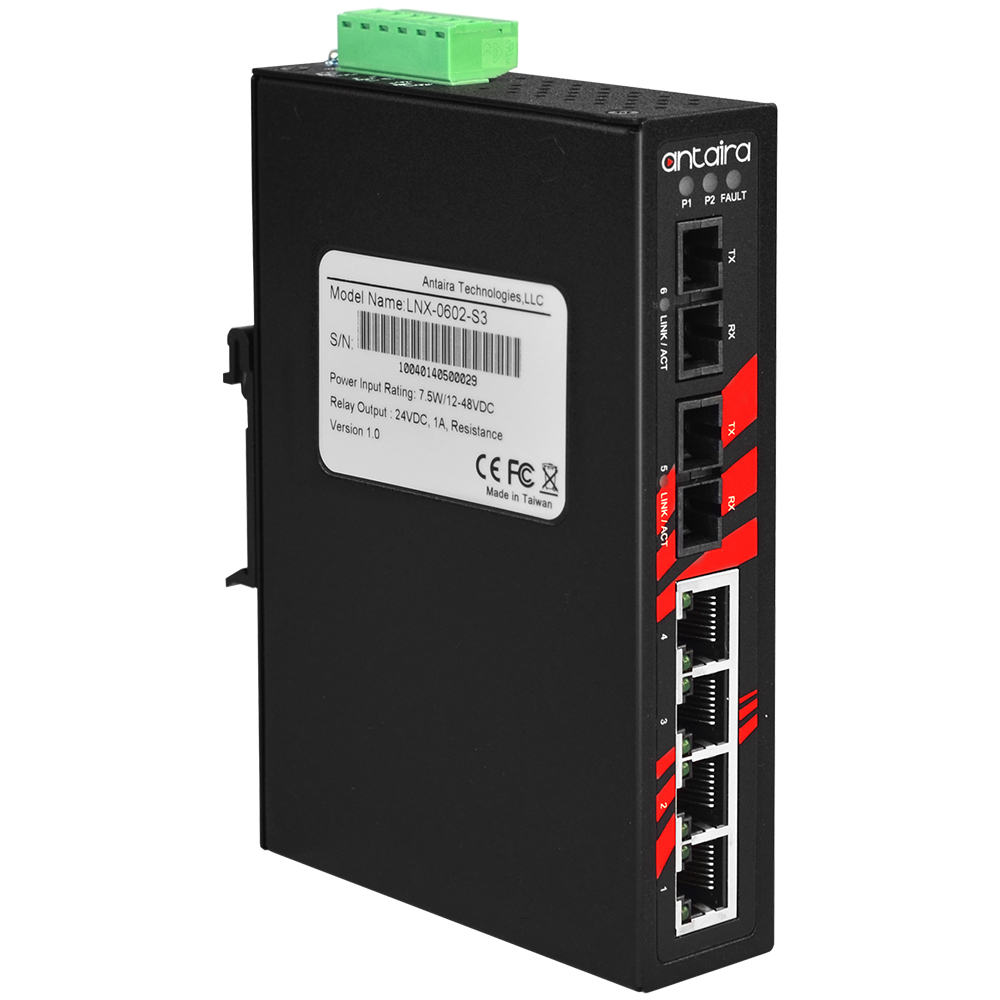

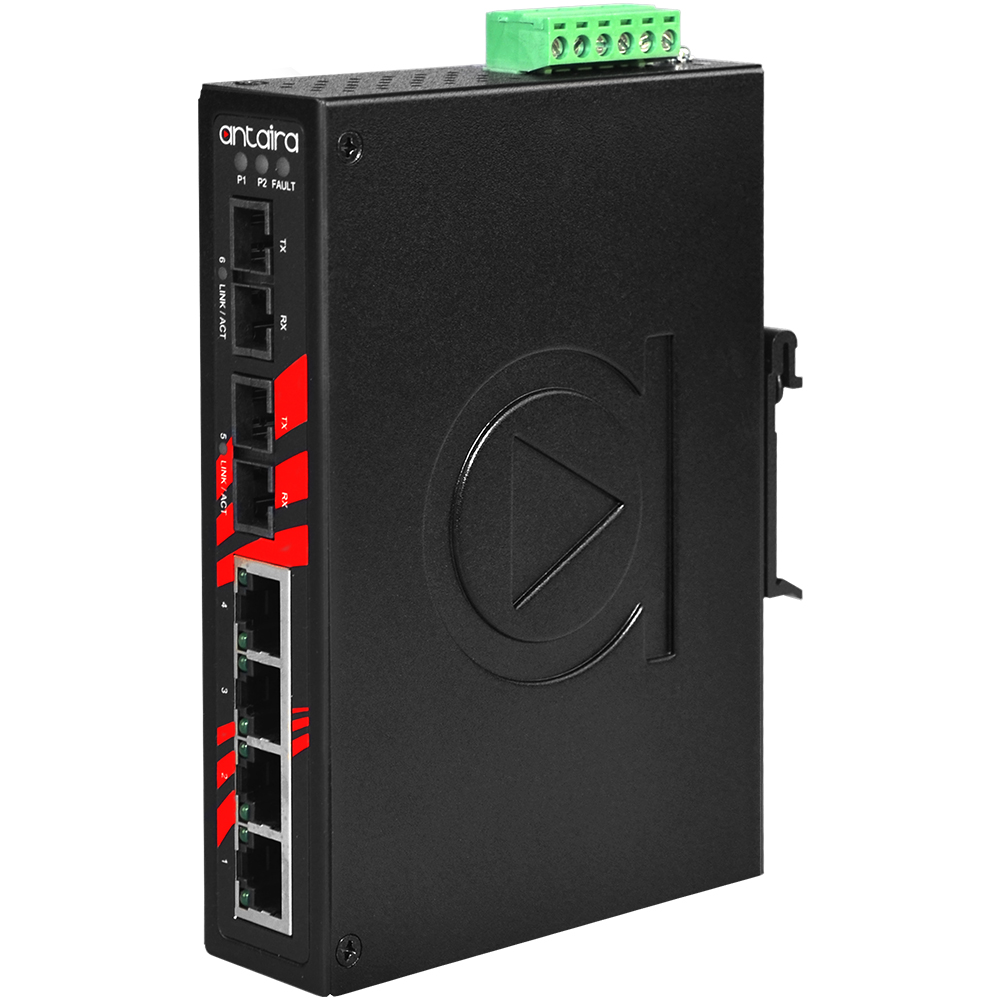

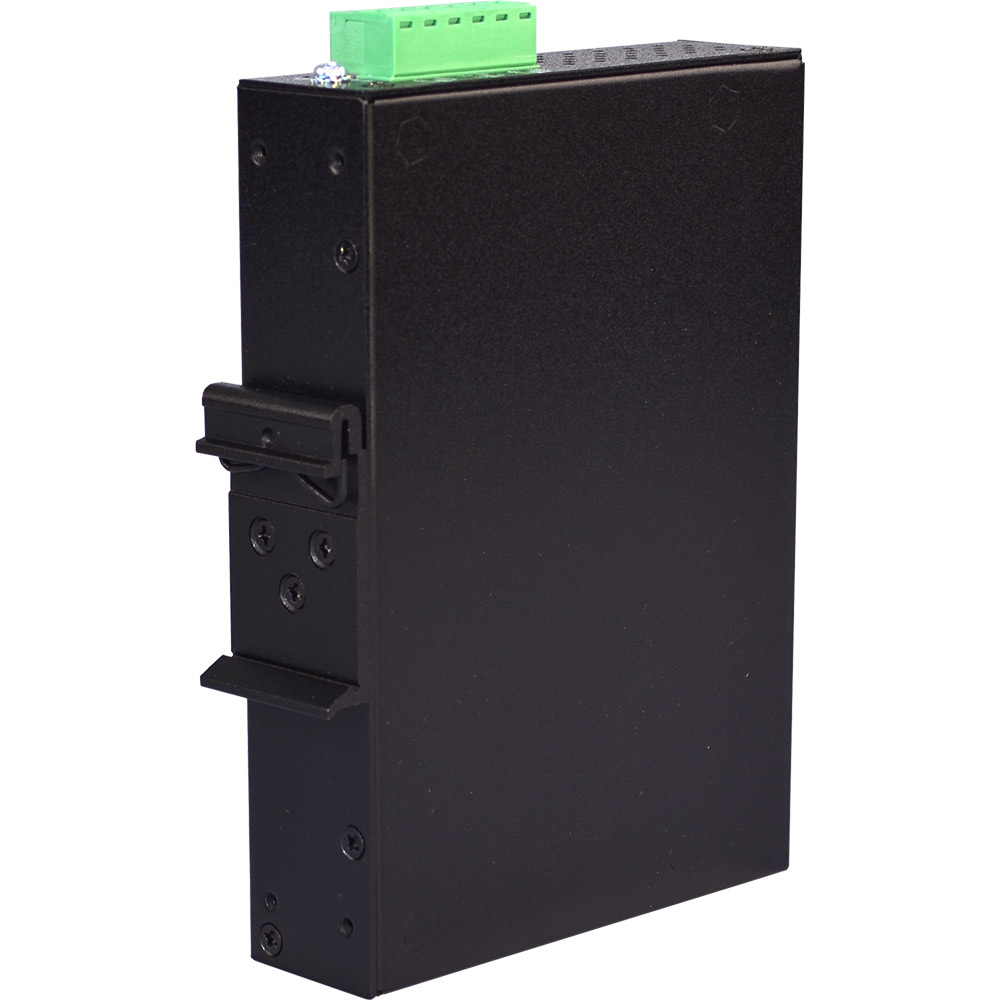

Antaira LNX-0602-S3
Antaira’s LNX-0602-S3 switches are smart 6-port Industrial Unmanaged Ethernet Switches supporting 4-Port 10/100Tx Fast Ethernet and 2-Port 100Fx of SC type connectors for single-mode 30Km.
LNX-0602-S3 switches support 12~48VDC power inputs. It of switches offers an Extended Operating Temperature model (w/-T) which supports from -40° to 75° C. It supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing to
provide an economical solution for the Industrial Ethernet Network.
In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.
- Network broadcast storm protection
- 4-Port 10/100Tx Fast Ethernet
- 2-Port 100Fx SC type connector (Single mode)
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 2K MAC Address Table
- Surge Protection: 2,000 VDC support
- ESD Protection: 6,000 VDC support
- Redundant Power Input Design – 12~48VDC
- Built-in 1 relay output for Port Break Alarm
- IP30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount support
- Operating Temperature range: -10° to 70° C
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3x Flow Control |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 4 ports |
| 10/100 BASE-T(X) | 4 × 10/100BaseT(X) RJ45 ports |
| Fiber Interface | |
| Fiber Port Count | 2 ports |
| 100 BASE-FX Fiber | 2 ports (SC connector) |
| Wavelength | 1310nm (Single-mode) |
| Performance | |
| MAC Table Size | 2K |
| Memory Buffer | 448kbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 1.0Gbps Packet Throughput Ability (Full-Duplex): 1.488Mpps @ 64bytes |
| Power Requirements | |
| Power Connection | Removable 4-contact terminal block |
| Input Voltage | 12V–48V DC, Redundant Input |
| Power Redundancy | Yes |
| System Power Consumption | 7.5 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -10° to 70° C (14° to 158° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |
| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 30 × 142 × 99 mm |
| Weight | Unit weight : 1.1 lbs Shipping weight : 1.45 lbs |
| Regulatory Approvals | |
| UL 508 | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHS Compliant |
| Warranty | 5 years |
