Antaira LNX-0602-ST-S3-T

6-Port Industrial Unmanaged Ethernet Switch, w/2*100Fx, Single-Mode 30 km, with ST Connector. EOT: -40°C ~ 75°C

Mã: LNX-0602-ST-S3-T Danh mục: Switch công nghiệp Antaira Từ khóa: LNX-0602-ST-S3-T

Mô tả
Sản phẩm liên quan

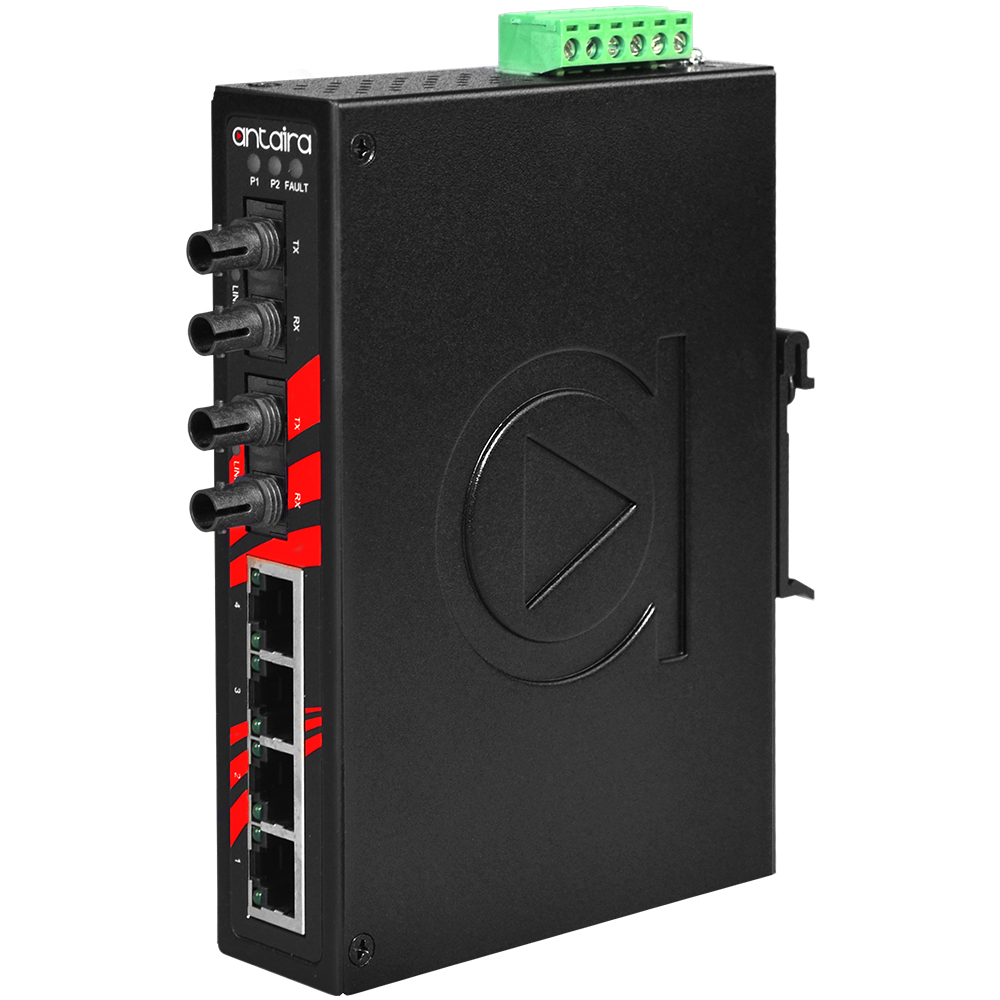

Antaira’s LNX-0602-ST-S3-T switches are smart 6-port Industrial Unmanaged Ethernet Switches supporting 4-Port 10/100Tx Fast Ethernet and 2-Port 100Fx of ST type connectors for single-mode 30Km.

LNX-0602-ST-S3-T switches support 12~48VDC power inputs. It of switches offers an Extended Operating Temperature model (w/-T) which supports from -40° to 75° C. It supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing
to provide an economical solution for the Industrial Ethernet Network.

In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.

Network broadcast storm protection
4-Port 10/100Tx Fast Ethernet
2-Port 100Fx ST type connector (Single mode)
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
2K MAC Address Table
Surge Protection: 2,000 VDC support
ESD Protection: 6,000 VDC support
Redundant Power Input Design – 12~48VDC
Built-in 1 relay output for Port Break Alarm
IP30 Rugged Aluminum Case Design

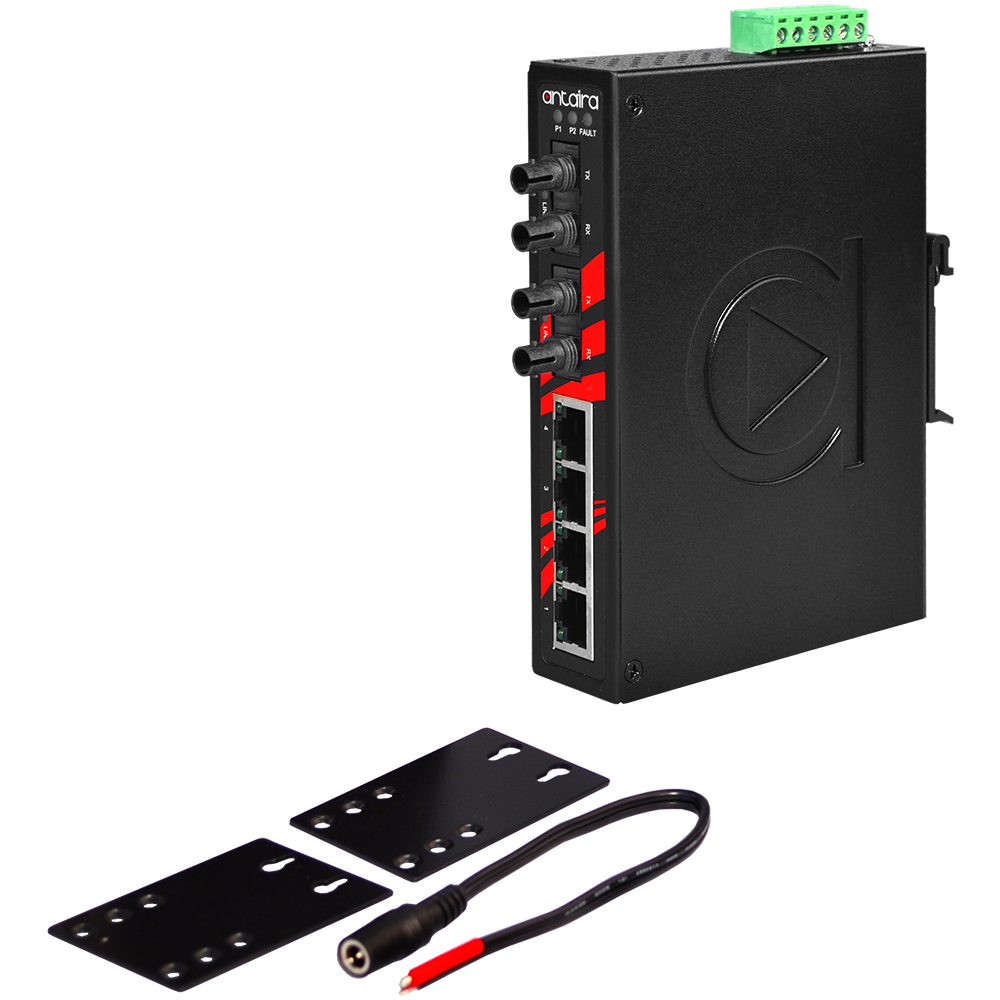

DIN-Rail and Wall Mount support
Operating Temperature range: -40° to 75° C
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3x Flow Control
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count	4 ports
10/100 BASE-T(X)	4 × 10/100BaseT(X) RJ45 ports
Fiber Interface
Fiber Port Count	2 ports
100 BASE-FX Fiber	2 ports (ST connector)
Wavelength	1310nm (Single-mode)
Performance
MAC Table Size	2K
Memory Buffer	448kbits
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port
Switching Architecture	Back-Plane (Switching Fabric): 1.0Gbps Packet Throughput Ability (Full-Duplex): 1.488Mpps @ 64bytes
Power Requirements
Power Connection	Removable 4-contact terminal block
Input Voltage	12V–48V DC, Redundant Input
Power Redundancy	Yes
System Power Consumption	7.5 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-40° to 75° C (-40° to 167° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection

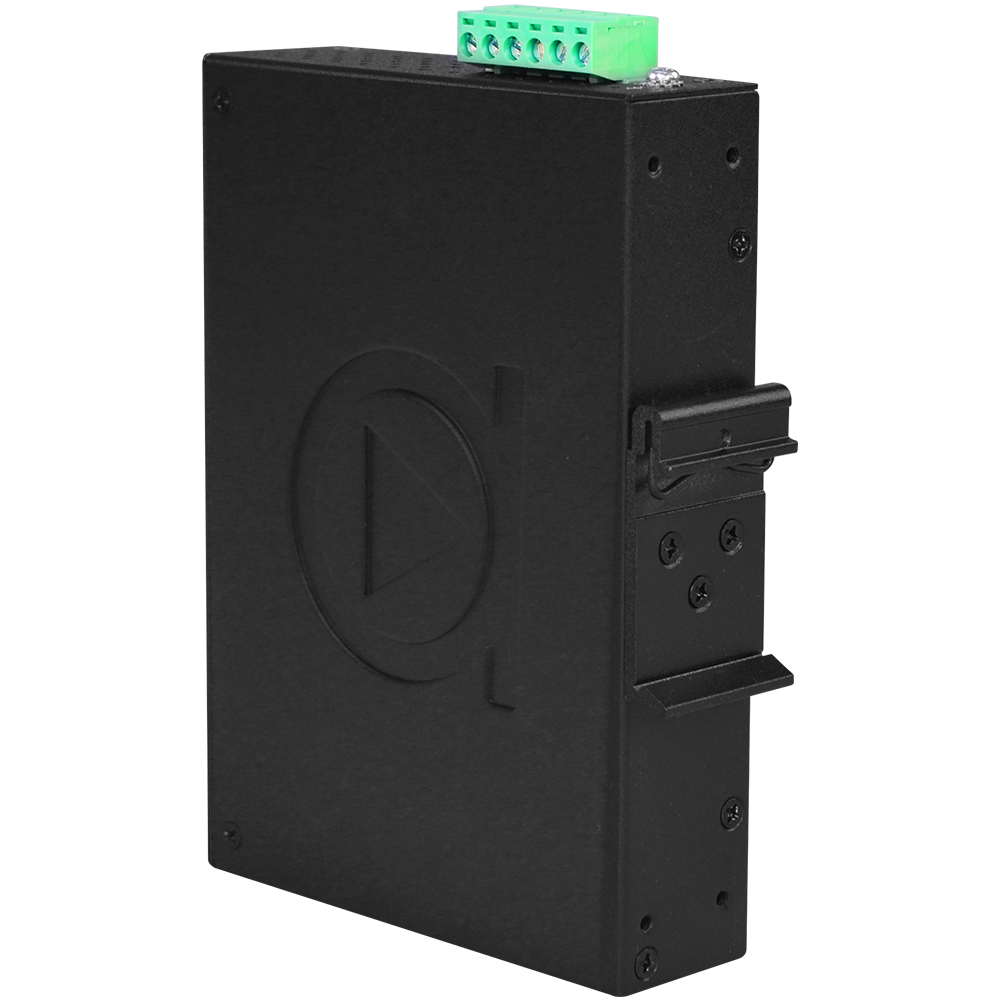

Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	30 × 142 × 99 mm
Weight	Unit weight : 1.1 lbs Shipping weight : 1.45 lbs
Regulatory Approvals
UL 508	✔
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6
Green	RoHS Compliant
Warranty	5 years
