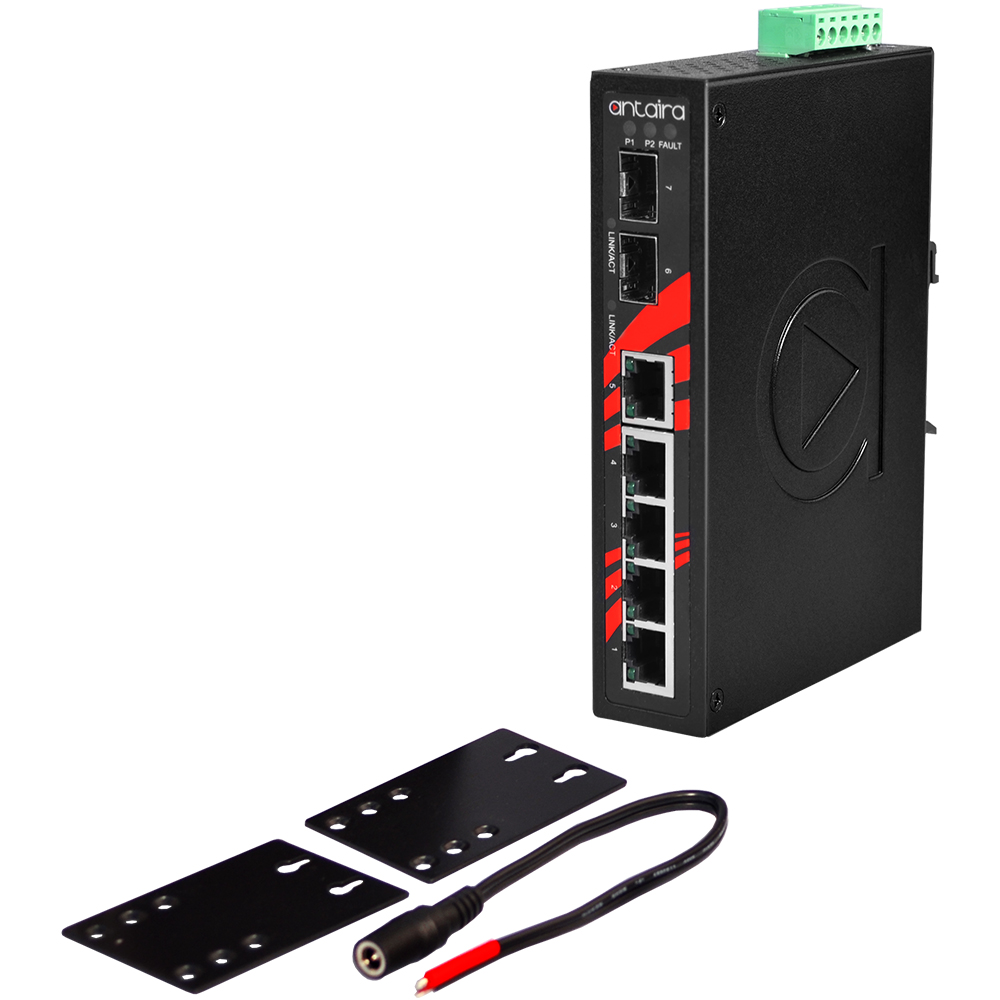

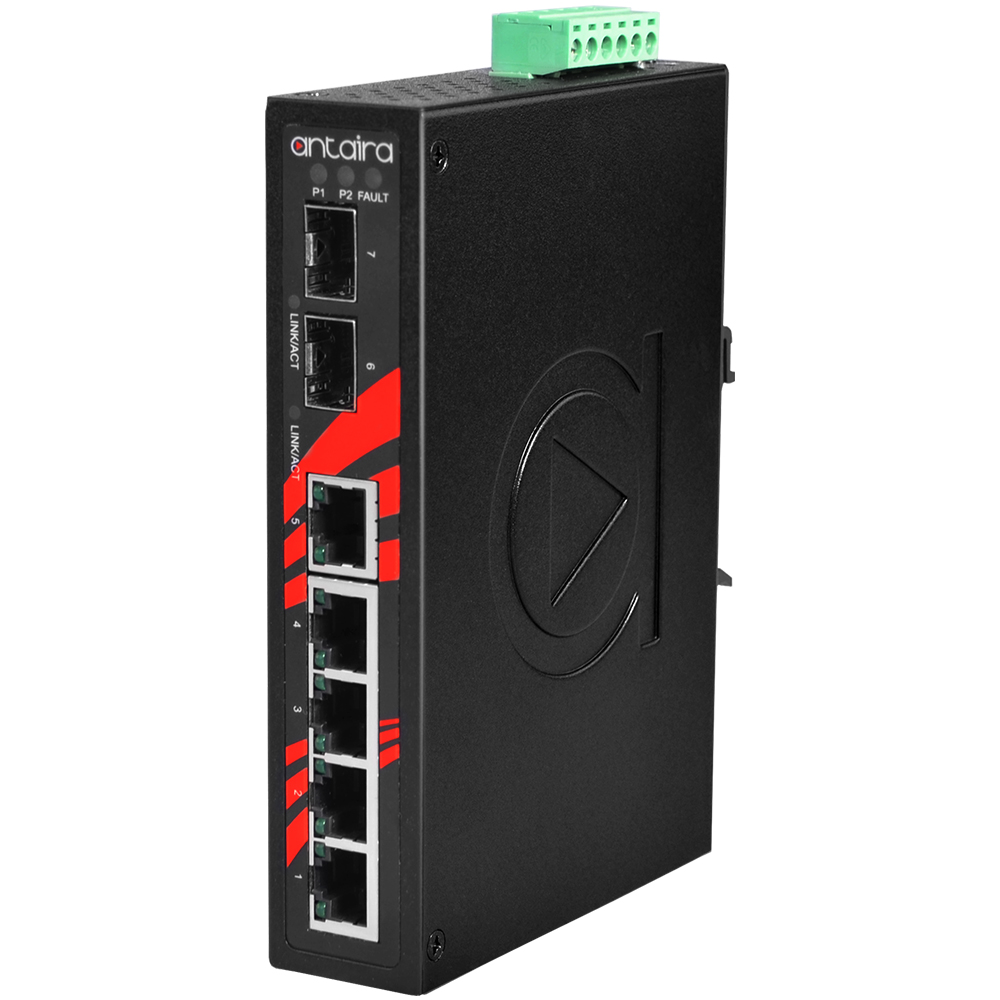

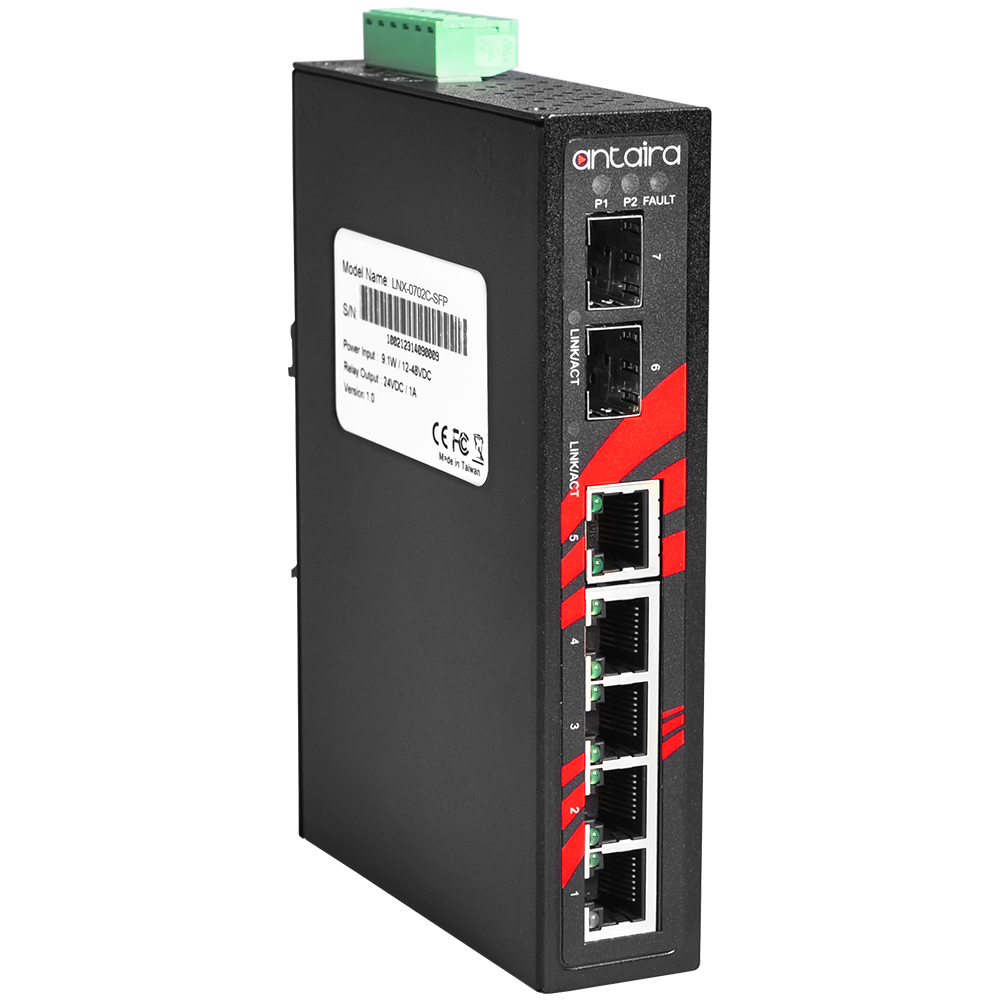

Antaira LNX-0702C-SFP-T

7-Port Industrial Unmanaged Ethernet Switch, w/5*10/100Tx + 2*100/1000 SFP Slot. EOT: – 40 to 75°C

Mã: LNX-0702C-SFP-T Danh mục: Switch công nghiệp Antaira Từ khóa: LNX-0702C-SFP-T

Mô tả
Sản phẩm liên quan

Antaira Technologies’ LNX-0702C-SFP-T industrial gigabit unmanaged Ethernet switch features five 10/100Tx ports and two dual rate 100/1000Fx SFP slots. This model supports a wide power input from 12 to 48VDC, and provides high EFT and ESD protection to protect
against unregulated voltage. It also provides wide operating temperature models for either standard: – 10 to 70C or extended: – 40 to 75C. LNP-0702C-SFP-T is an ideal solution for harsh environments and industrial applications.

Supports 5-Port 10/100Tx and 2-Port 100/1000 SFP Slots
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 12~48VDC
Built-in 1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Operating Temperature Range – EOT: -40° to 75° C
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3x Flow Control IEEE 802.3az EEE Power Management
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count	5 ports
10/100 BASE-T(X)	5 × 10/100Tx RJ45 ports
Fiber Interface
Fiber Port Count	2 ports
100/1000 BASE-(F)X SFP	2 ports
Wavelength	Refers to SFP module
Performance
MAC Table Size	8K
Memory Buffer	4Mbits
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port
Switching Architecture	Back-Plane (Switching Fabric): 10Gbps
Power Requirements
Power Connection	Removable 6-contact terminal block
Input Voltage	12V–48V DC, Redundant Input
Power Redundancy	Yes
System Power Consumption	6 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-40° to 75° C (-40° to 167° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection

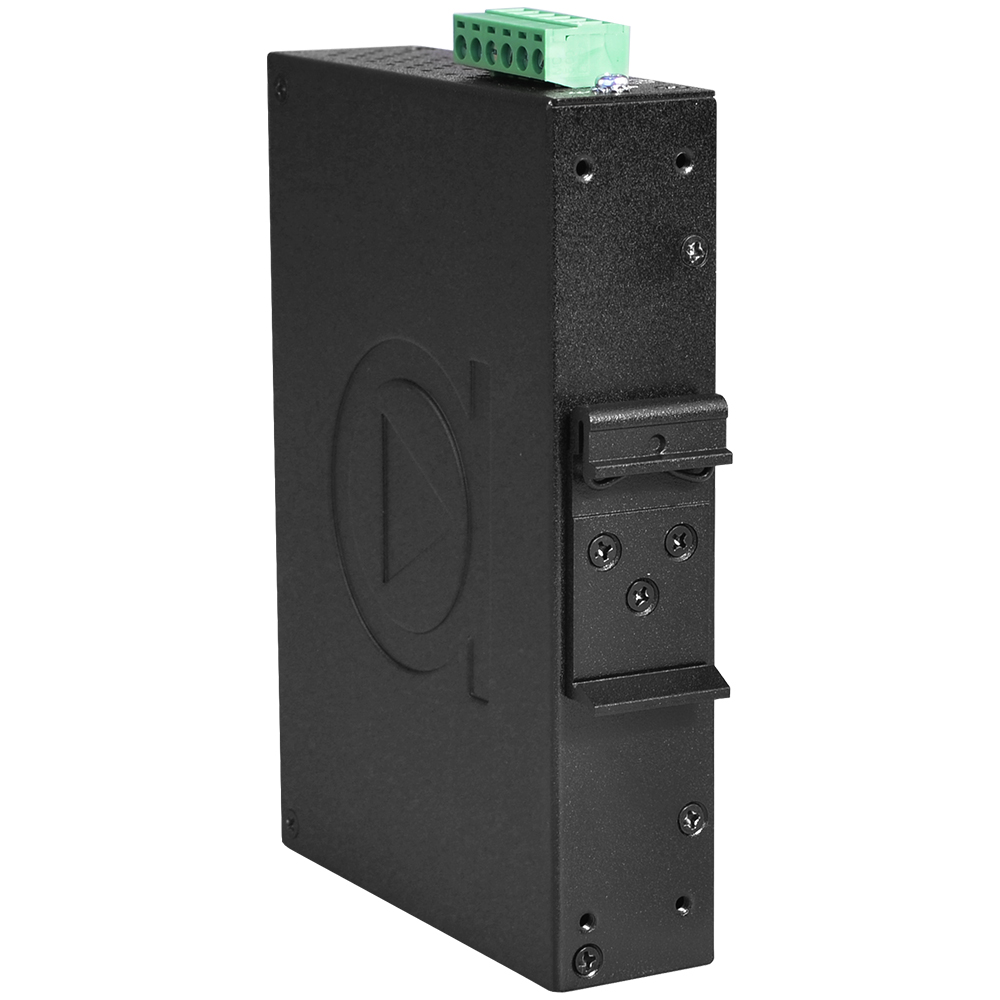

Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	30 × 142 × 99 mm
Weight	Unit weight : 1.3 lbs Shipping: 1.7 lbs
Regulatory Approvals
UL 61010-1 / UL 61010-2-201	✔
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6
Green	RoHS Compliant
Warranty	5 years
