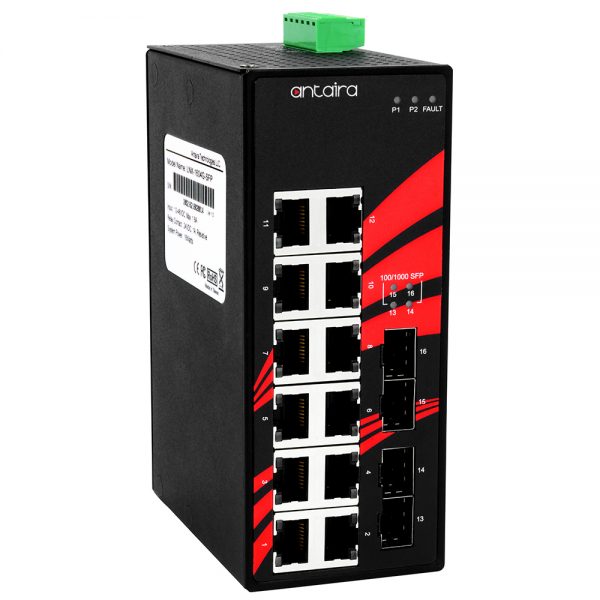

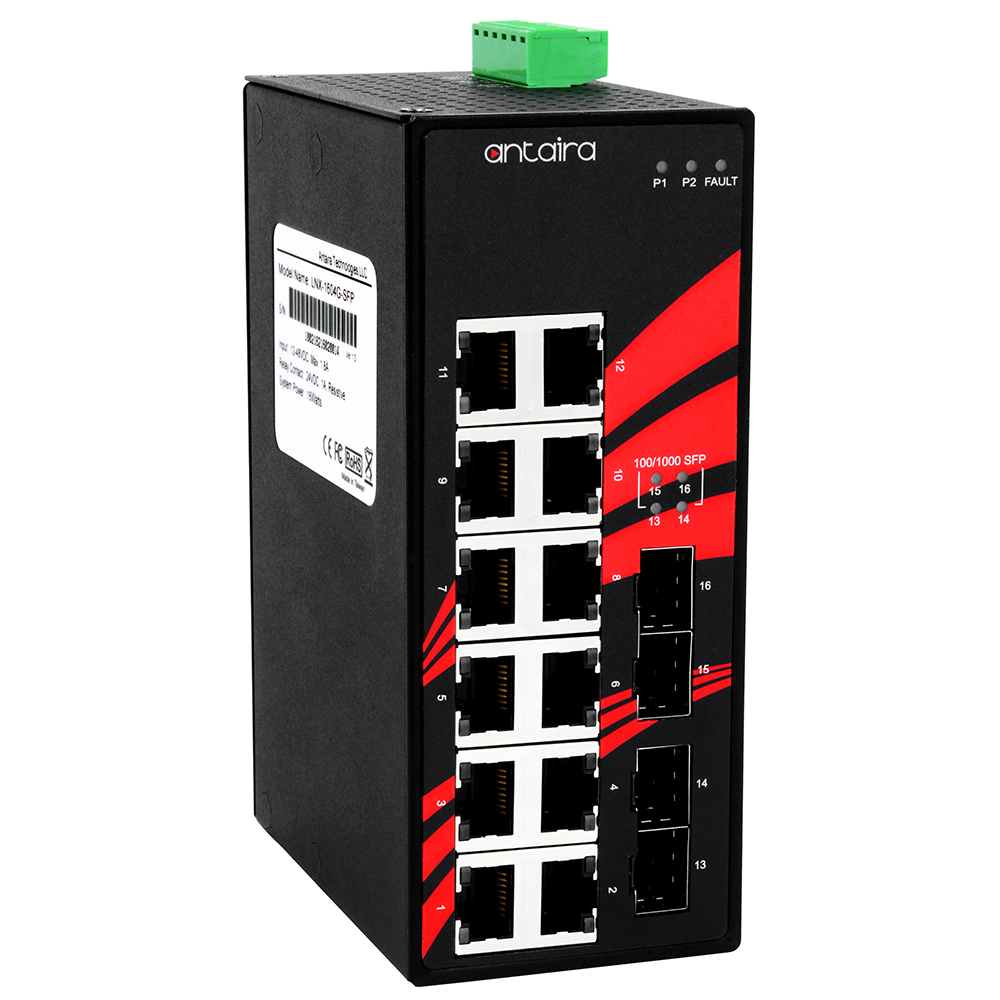

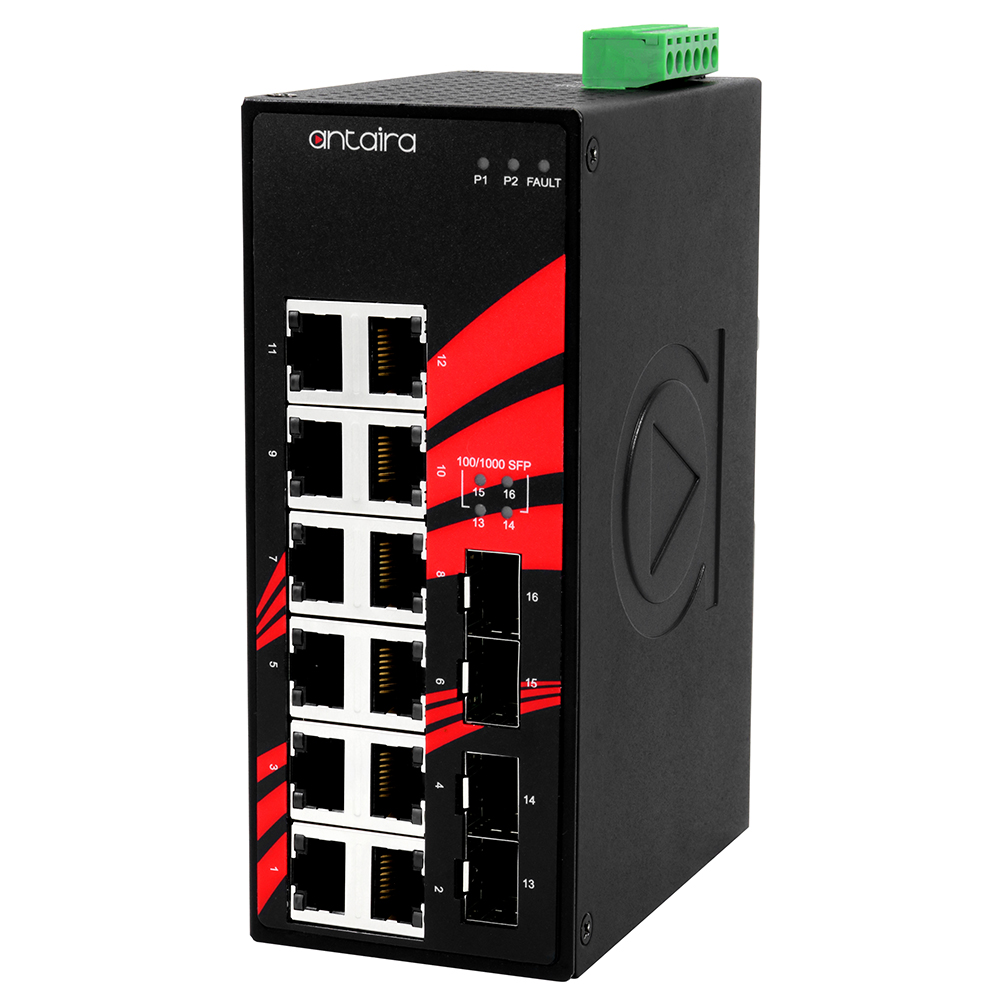

Antaira LNX-1604G-SFP-T

Antaira Technologies’ LNX-1604G-SFP industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is designed with twelve gigabit Ethernet ports and four dual rate (100/1000) SFP slots for fiber connections, making it ideal
for applications that demand high bandwidth and long distance communication; such as, power/utility, water wastewater treatment plants, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

This model has a hardened design providing high EFT and ESD protection to prevent any unregulated voltage. It also has a dual power input support of 12~48VDC. There are two wide operating temperature models to support either a -10 to 70 ̊ C or – 40 to 75
̊ C environment.

• Supports 12*10/100/1000Tx + 4*100/1000 SFP ports
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 8K MAC Address Table
• Jumbo Frame Support: 12.2K
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• Redundant Power Input Design: 12~48VDC
• Built-in 1 Relay Output for Power Failure Warning
• IP30 Rugged Metal Case Design

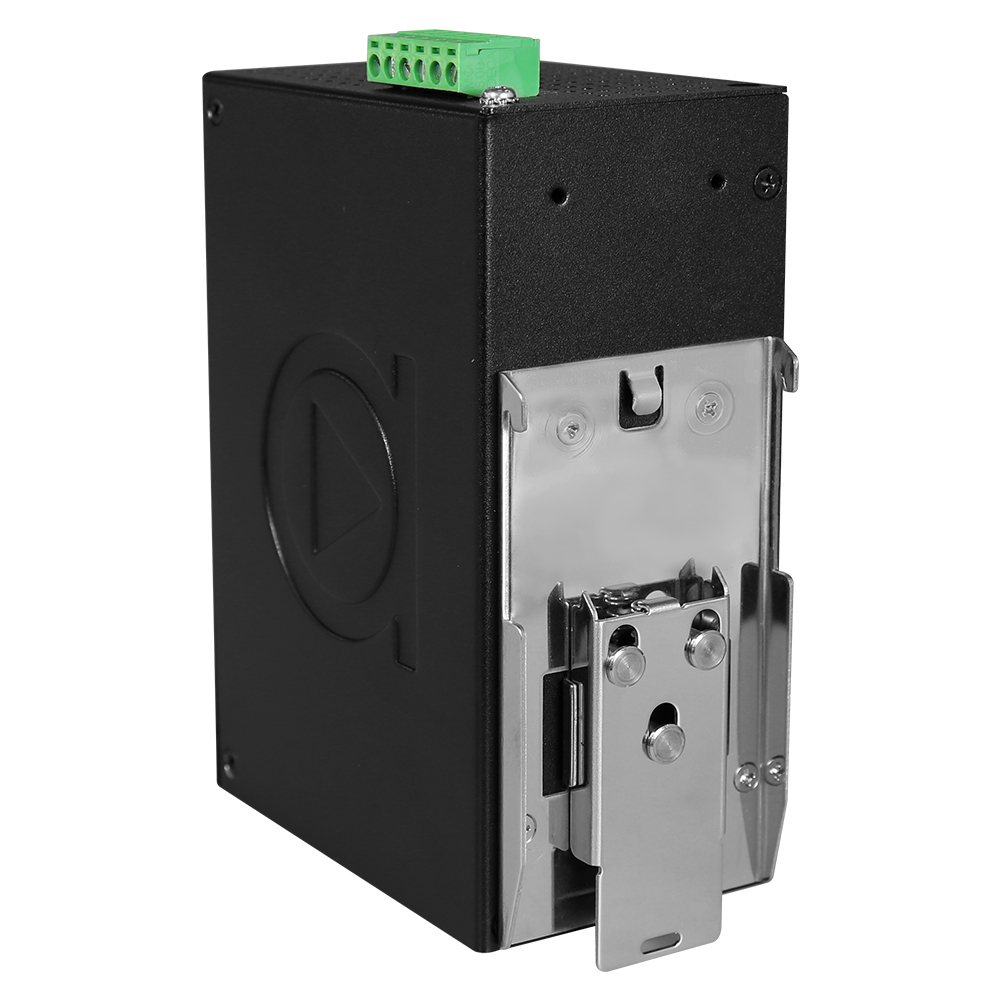

• DIN-Rail and Wall Mount Support
• Operating Temperature Range: -40° to 75° C
• 5-Year Warranty
