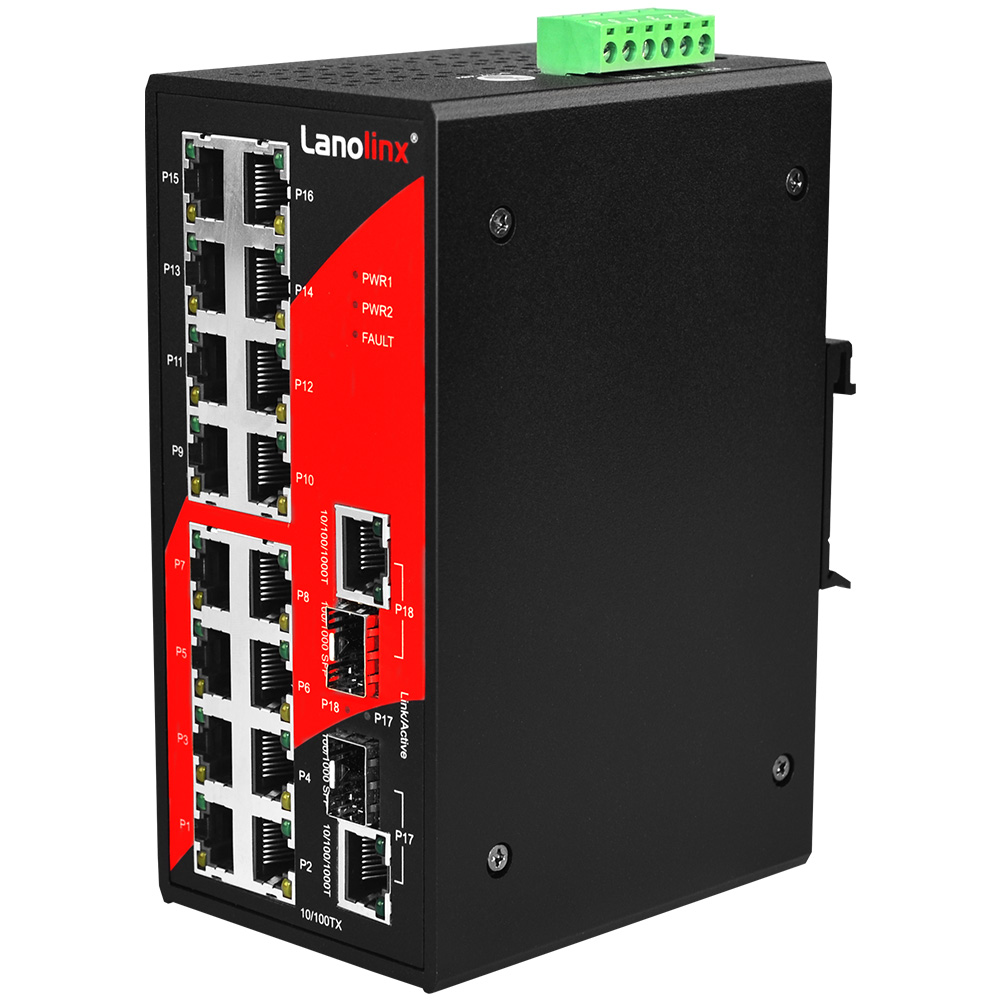

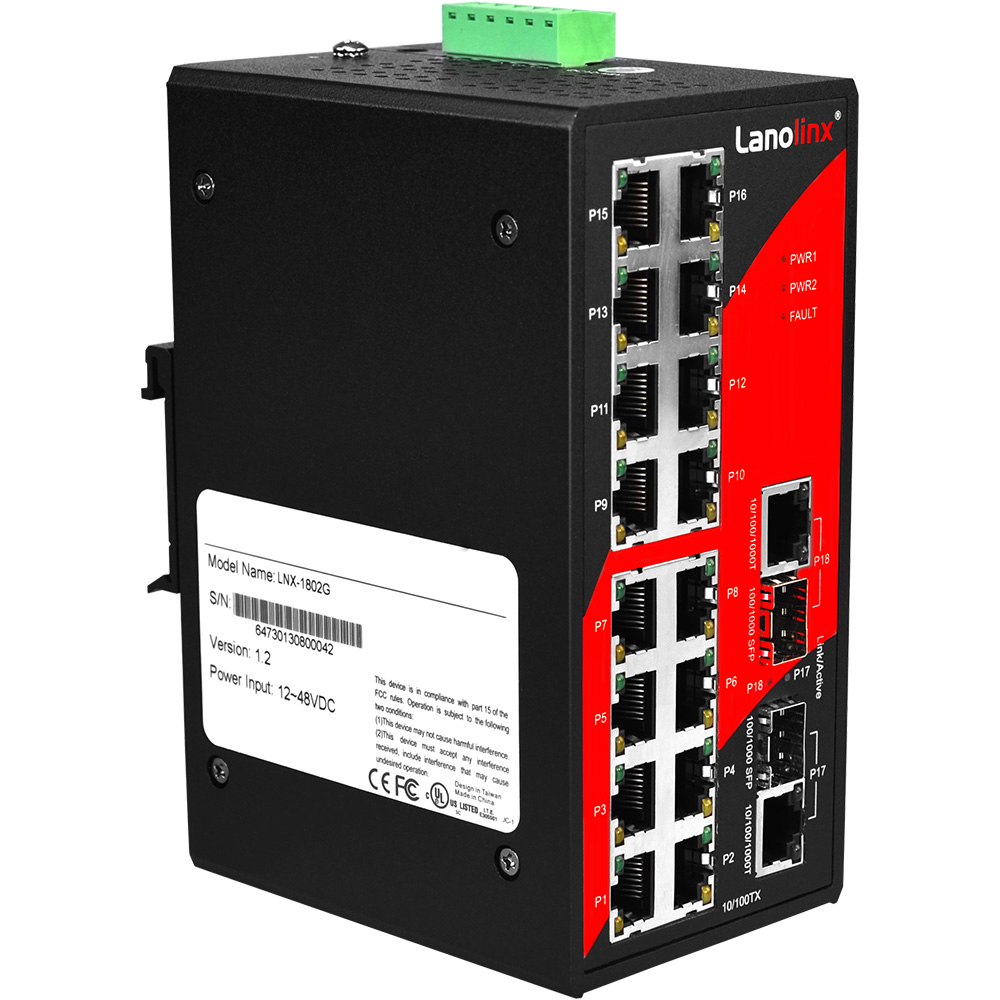

Antaira LNX-1802G

18-Port Industrial Unmanaged Ethernet Switch, w/16*10/100TX + 2 *GigE Combo Ports

Mã: LNX-1802G Danh mục: Switch công nghiệp Antaira Từ khóa: LNX-1802G

Mô tả
Sản phẩm liên quan

LNX-1802G is a 18-port (16-port 10/100TX + 2-port GigE Combo ports supporting 10/100/1000TX or SFP Fiber) Gigabit Industrial Ethernet Switch.

16-Port 10/100TX + 2-Port 10/100/1000T/mini-GBIC Combo
7.2 Gbps Back-Plane (Switching Fabric)
Store-and-Forward Switching Architecture
1 Mbits Packet Buffer
8K MAC Address Table
Wide-Range Redundant Power Design
Provides EFT Protection 3000 VDC for Power Line
Supports 6000 VDC Ethernet ESD Protection
IP30 Rugged Aluminum Case Design
DIN-Rail or Panel Mountable for Easy Installation

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3x Flow Control
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count	16 ports
10/100 BASE-T(X)	16 ports
10/100/1000 BASE-T(X)	2 ports
Fiber Interface
Fiber Port Count	2 ports
100/1000 BASE-(F)X SFP	2 ports
Wavelength	Refers to SFP module
Performance
MAC Table Size	8K
Memory Buffer	1 Mbit
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Switching Architecture	Back-Plane (Switching Fabric): 36Gbps
Power Requirements
Power Connection	Removable 6-contact terminal block
Input Voltage	12V–48V DC, Redundant Input
Power Redundancy	Yes
System Power Consumption	9 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-10° to 65° C (14° to 149° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection

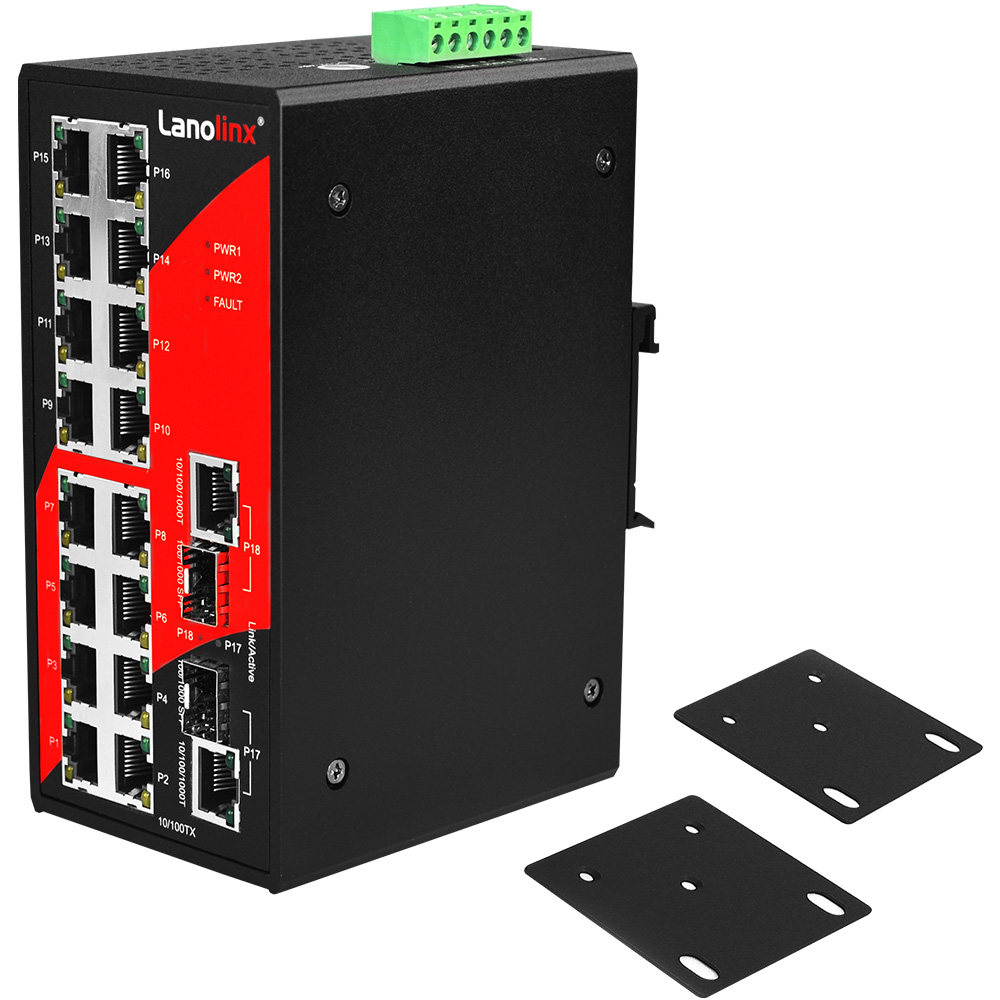

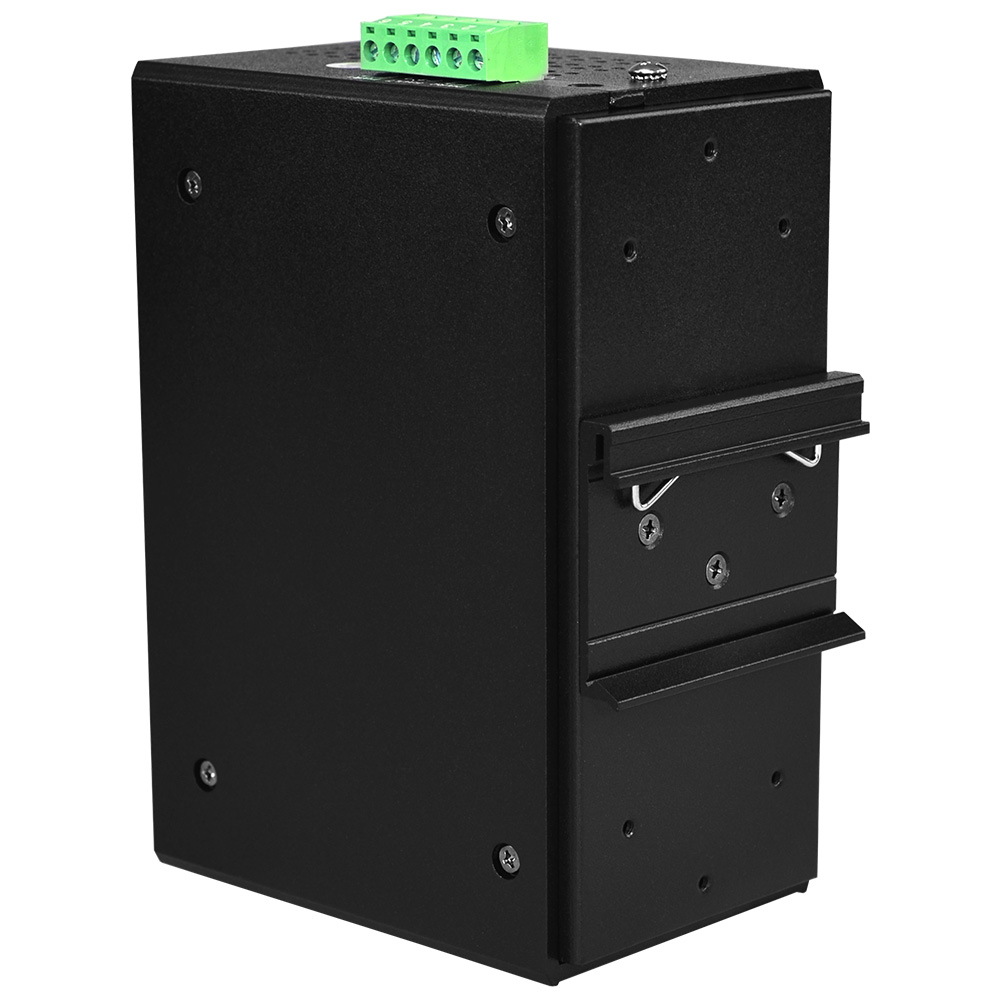

Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	72 × 152 × 105 mm
Weight	Unit weight : 2.2 lbs Shipping weight : 3.3 lbs
Regulatory Approvals
UL 60950-1	✔
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6
Green	RoHS Compliant
Warranty	5 years
