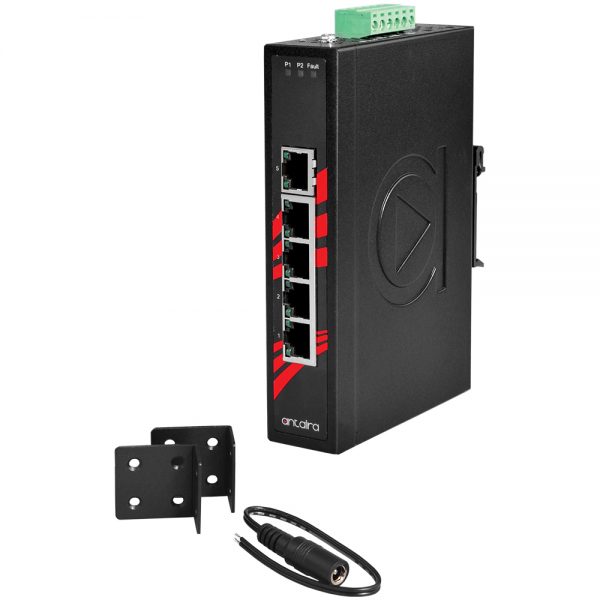

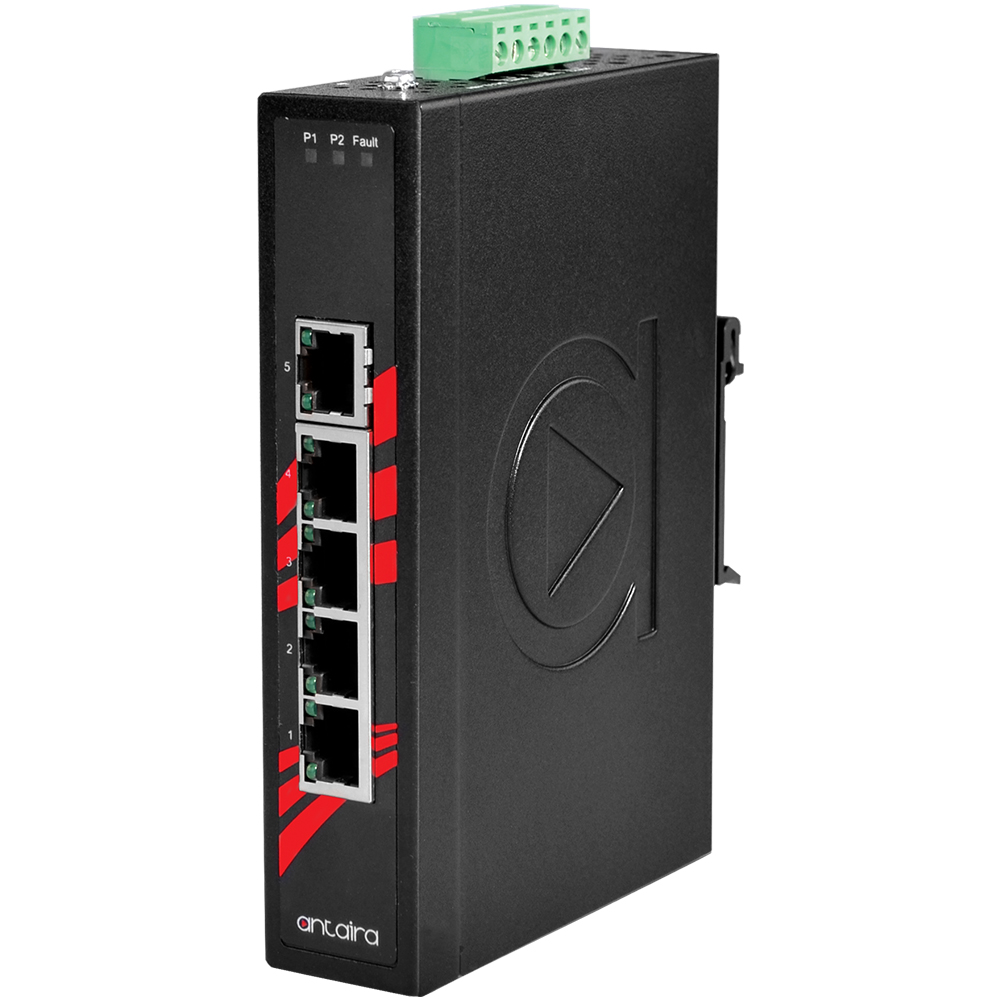

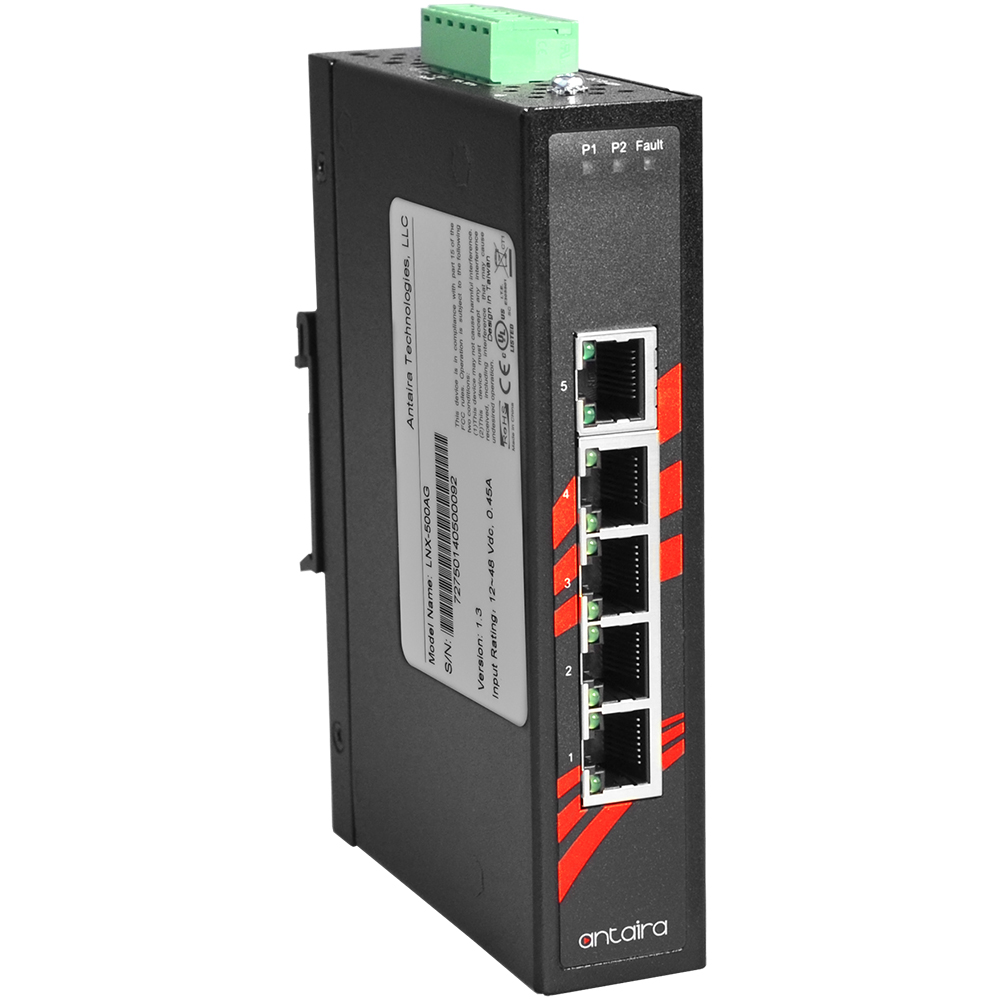

Antaira LNX-500AG-T
Antaira Technologies LNX-500AG-T, 5-Port Gigabit Industrial Unmanaged Ethernet Switch supports 10/100/1000 Mbps Auto-Negotiation and supports operating temperature from -40° to 75° C. It has a wide range DC power input design (12 – 48 VDC). This ruggedized
Gigabit Ethernet switch also supports Auto MDI/MDI-X function, 9K Jumbo Frames, and has a 10 GBPS Back-Plane. LNX-500AG-T has a slim and compact design while being secured in a rugged IP-30 case that is DIN-RAIL ready for industrial applications.
- Extended Operating Temperature -40° ~ 75° C
- RJ-45 Port Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 10 Gbps Back-Plane (Switching Fabric)
- 136 Kbits Memory Buffer
- 8K MAC Address Table
- 9 Kbytes Jumbo Frame
- Wide-Range Redundant Power Design
- Power Polarity Reserve Protect
- Overload Current Reset Fuse Present
- Supports 4000 VDC Ethernet ESD Protection
- IP-30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount Design
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3x Flow Control |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 5 ports |
| 10/100/1000 BASE-T(X) | 5 ports |
| Performance | |
| MAC Table Size | 8K |
| Jumbo Frame | 9.6 Kbytes |
| Memory Buffer | 136 Kbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 10Gbps Packet Throughput Ability (Full-Duplex): 14.88Mpps @ 64bytes |
| Power Requirements | |
| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 12V–48V DC, Redundant Input |
| Power Redundancy | Yes |
| System Power Consumption | 5 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 75° C (-40° to 167° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |
| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 30 × 140 × 95 mm |
| Weight | Unit weight : 1.0 lbs Shipping: 1.5 lbs |
| Regulatory Approvals | |
| UL 60950-1 | ✔ |
| UL 61010-1 / UL 61010-2-201 | ✔ |
| ISA 12.12.01 (UL C1D2) | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHS Compliant |
| Warranty | 5 years |
