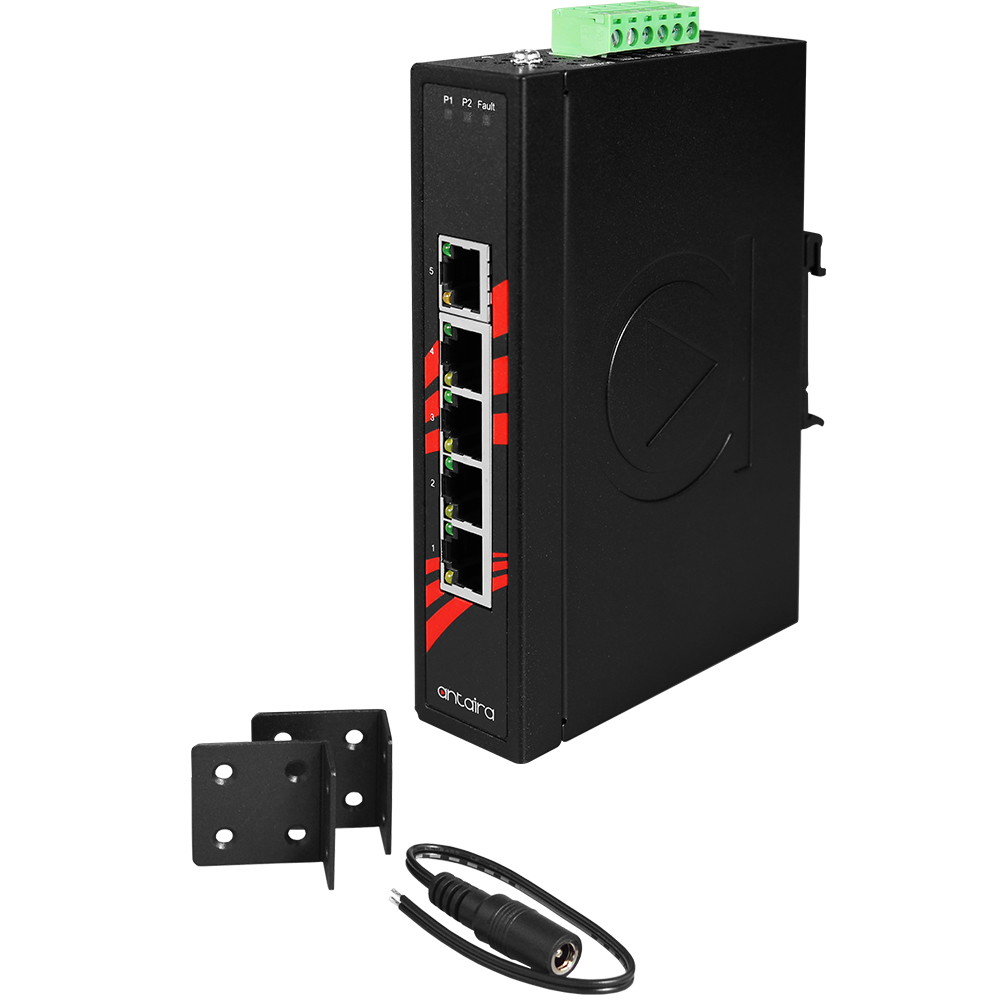

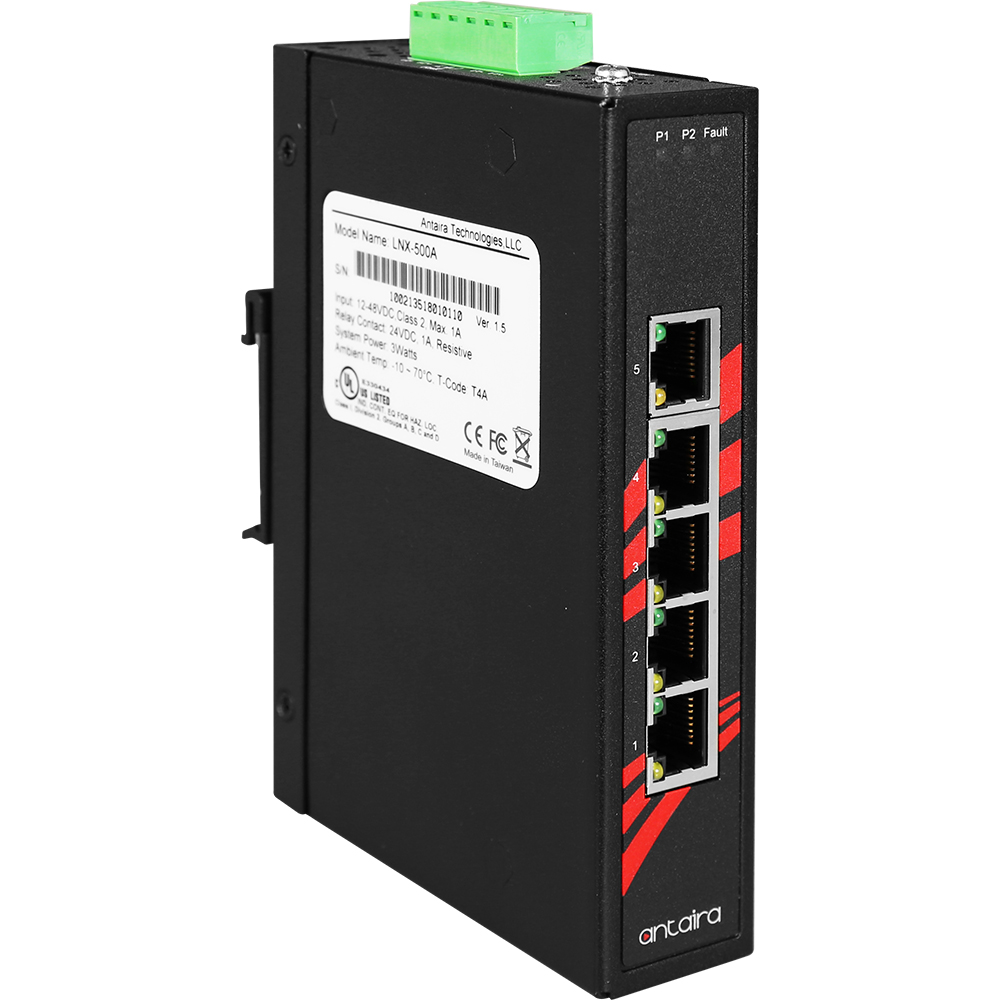

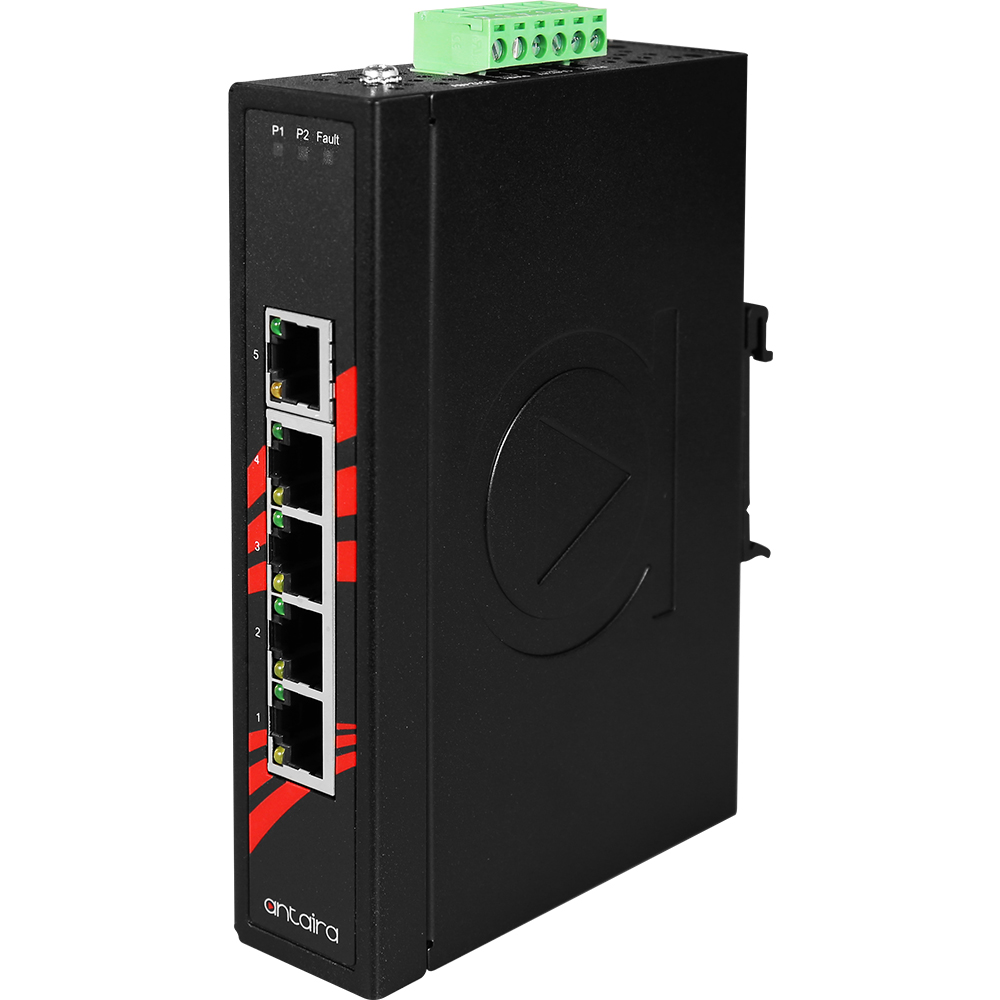

Antaira LNX-500A-T

Antaira Technologies LNX-500A-T Wide Temperature Operating Industrial Ethernet Switch is a leading low price solution for all harsh environment automation or industrial networking projects. This Fast Ethernet supporting 5 port switch supports 10/100 Mbps
Auto-Negotiation and has a wide DC power input design (12 – 48VDC) to allow for all types of applications such as on-vehicle or panel designs. LNX-500A-T has a wide operating temperature of -40° to 75° C. Each port on LNX-500A-T has two LED lights to easily
indicate link status and transmission speed. This ruggedized Ethernet switch also supports Auto MDI/MDI-X function and is also UL Class 1, Division 2 certified for oil and gas applications. LNX-500A-T is packaged in a slim and compact size while being secured
in a rugged IP-30 case that is DIN-RAIL ready for industrial applications.

• Network broadcast storm protection
• 4-Port 10/100Tx Fast Ethernet
• 1-Port 100Fx SC type connector (Multi-mode)
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 2K MAC Address Table
• Surge Protection: 2,000 VDC support
• ESD Protection: 6,000 VDC support
• Redundant Power Input Design – 12~48VDC
• Built-in 1 relay output for Port Break Alarm
• IP30 Rugged Aluminum Case Design

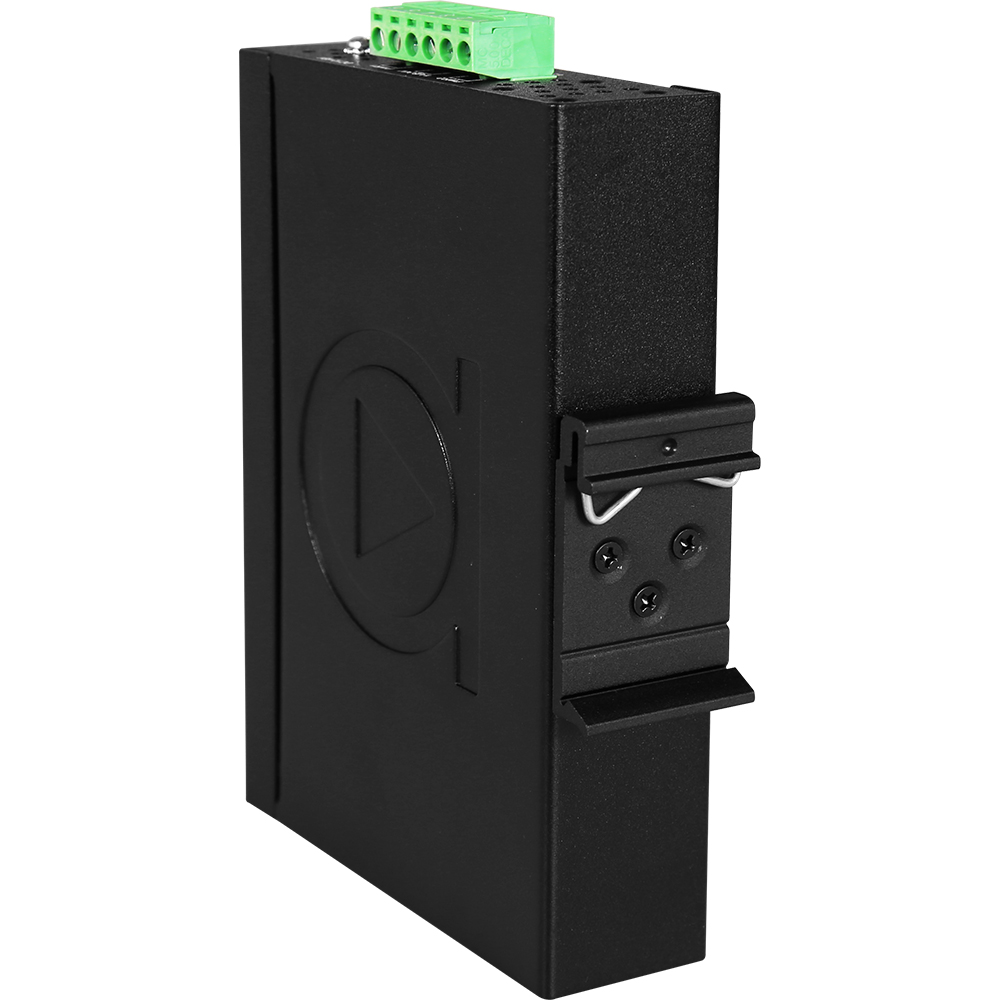

• DIN-Rail and Wall Mount support
• Operating Temperature range – STD: -10° to 70° C, EOT: -40° to 75° C
• 5-Year Warranty
