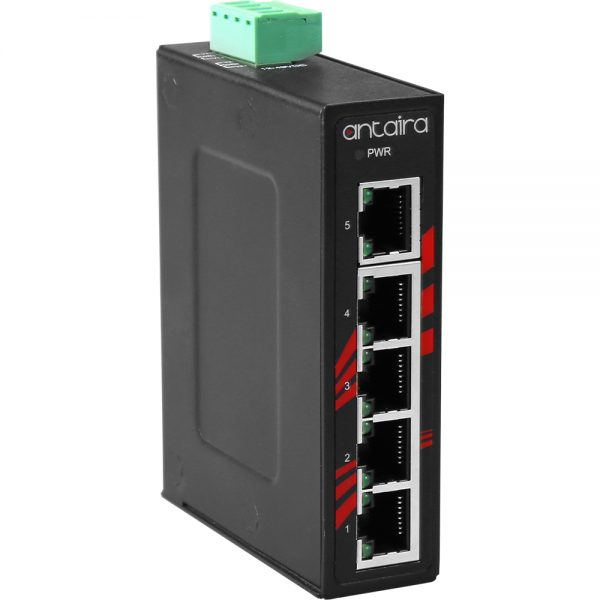

Antaira LNX-C500-T

Antaira Technologies LNX-500A industrial unmanaged Ethernet switch is a leading low price solution for all automation or industrial networking projects. This Fast Ethernet supporting 5-port switch supports 10/100 Mbps Auto-Negotiation and has a wide DC power
input design (12 – 48VDC) to allow for all types of applications such as on-vehicle or panel designs.

Each port on LNX-500A has two LED lights to easily indicate link status and transmission speed. This ruggedized unmanaged Ethernet switch also supports Auto MDI/MDI-X function and is also UL Class 1, Division 2 certified for oil and gas applications. LNX-500A
is packaged in a slim and compact size while being secured in a rugged IP-30 case that is DIN-RAIL ready for industrial applications.

• Compact Industrial Grade Design
• Supports 5*10/100Tx
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 8K MAC Address Table
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• Redundant Power Input Design: 12~48VDC
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Extended Operating Temperature Range: -40° to 75° C
• 5-Year Warranty
