Antaira LNX-C500-T-CC

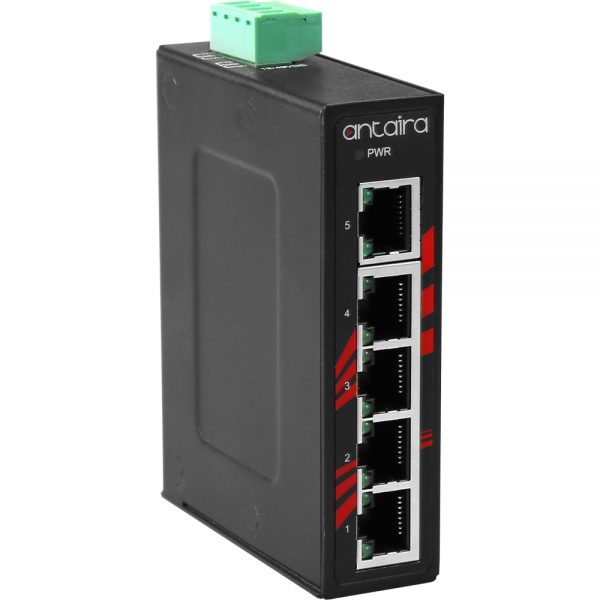

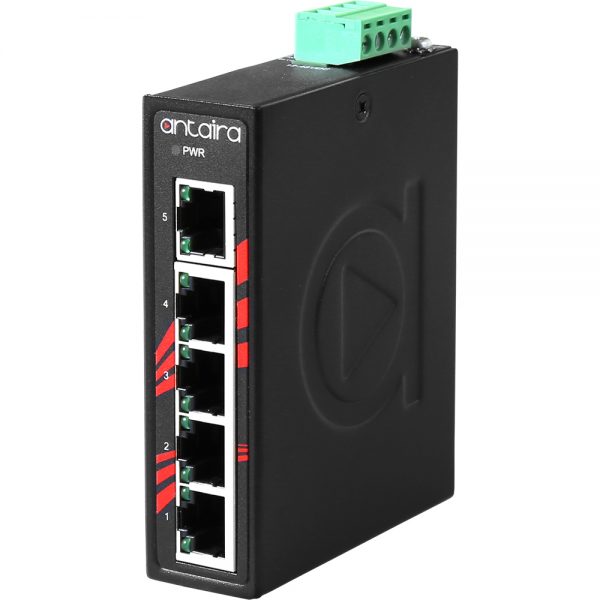

Antaira’s LNX-C500-T-CC is a Compact 5-Port Industrial Unmanaged Ethernet Switch with Confomal coating design. The model is IP30-rated and DIN-Rail mountable. It is equipped with 5*10/100Tx RJ45 Ethernet ports and with a backplane speed of 1gbps. The small
form factor of this industrial switch is 30% smaller allowing for a more versatile implementation.

The conformal coating design adds a layer of protection against gases, dust and water. Conformal coating is a specialty film which conforms to the contours of the printed circuit board to protect the board from adverse environmental conditions. Antaira’s
conformal coating process exceed the standards for protection against gases, dust, and water.

This model provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It also supports an extended operating temperature from -40° to 75° C.

LNX-C500-T-CC is a perfect industrial networking product to support any application such as power/utility, water wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

• Conformal Coating
• Compact Industrial Grade Design
• Supports 5*10/100Tx
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 8K MAC Address Table
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• Redundant Power Input Design: 12~48VDC
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Extended Operating Temperature Range: -40° to 75° C
• 5-Year Warranty
