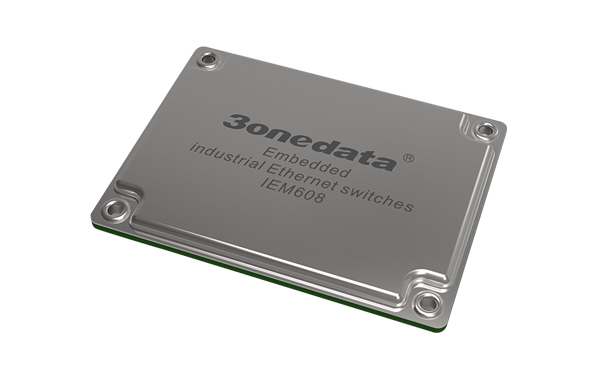

Module nhúng switch công nghiệp 8 cổng Ethernet IEM608

Technology

Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1Q, IEEE802.1X

Interface

Ethernet port:

8 Ethernet ports, available to be set as electrical or optical port as required

Redundant ring network port:

8 Ethernet ports, available to be set as redundant ring network ports

Web setting port:

All Ethernet ports come with Web setting, and support one LVTTL level serial port for serial Web setting

Alarm port:

Two LVTTL level monitor signal inputs provided for collecting alarm message of port and power abnormal

One LVTTL level alarm message output, support local alarm and remote alarm of power, port link and ring network status

System Parameters

Support 100 devices in a ring

Line fault recovery time < 20ms (in full load)

Forward speed: 148810pps

Max filter speed: 148810pps

Transmit mode: store and forward

Switched bandwidth: 2.0G

MAC table size: 2K

Support port-based VLAN protocol

Support 16 VLAN IDs, as many as 4906 VLANs can be built within the whole network

Networking

Single Ring, Tangent Ring, Star, Chain, Coupling Ring, Dual Homing

Failover time < 20ms

Power Supply

Input voltage: 3.3VDC (±5%)

Power Consumption: <4W

Physical Characteristics

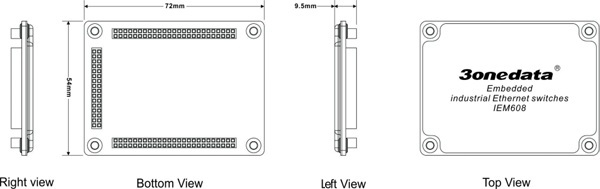

Size (W*H*D): 72mm×54mm×9.5mm

Working Environment

Working temperature: -40-85℃

Storage temperature: -40-85℃

Humidity: 5%~95% (no condensation)

Warranty: 5 years
