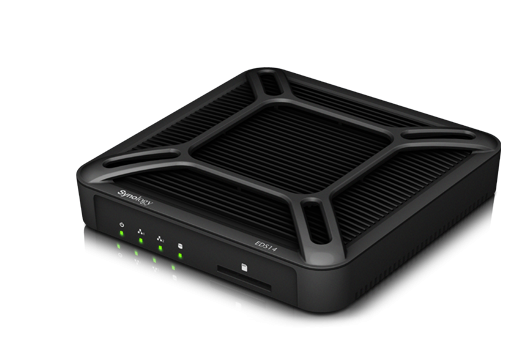

Despite its small size, EDS14 is powered by a 1.2GHz CPU and 512MB of RAM, ensuring both computing and multi-tasking capabilities. For a model dependent upon external drives, EDS14 delivers remarkable read/write performance – up to 111.94 MB/sec reading and 50.58 MB/sec writing speeds with a USB 3.0 drive in a Windows^® environment, as well as 77.81 MB/sec reading and 45.4 MB/sec writing speeds with a UHS-I SDXC card.





Hardware Specifications
CPU
CPU Model	Marvell Armada 370 88F6707
CPU Frequency	1.2 GHz
Floating Point
Hardware Encryption Engine
Memory
System Flash	4 GB eMMC
System Memory	512 MB DDR3
External Ports
USB 2.0 Port	1
USB 3.0 Port	1
SD Card Reader
File System
External Drives	EXT4 EXT3 FAT NTFS HFS+ (Read Only, with max. volume size 2TB)
Appearance
Size (Height x Width x Depth)	31 mm x 125 mm x 125 mm
Weight	0.295 kg
Others
RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
Wireless Support (dongle)
Power Supply Unit / Adapter	24W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	8.66 W (Access) 7.12 W (Idle)
British Thermal Unit	29.55 BTU/hr (Access) 24.29 BTU/hr (Idle)
Dynamic DC Input	7-24V
DC Output	1A
Temperature
Operating Temperature	-20°C to 50°C (-5°F to 122°F)
Adapter Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC Class B CE Class B BSMI Class B EN50155 EN45545
Warranty	3 Years
Notes	Access power consumption is measured when loaded with Adata SDHC 8GB Class 10 SD card. Idle power consumption is measured with one LAN connected.
DSM Specifications
Storage Management
Max File System Size	16 TB
File Sharing Capacity
Maximum User Accounts	128
Maximum Groups	64
Maximum Shared Folder	32
Maximum Shared Folder Sync Tasks	2
Maximum Concurrent CIFS/AFP/FTP Connections	128
NFS Kerberos Authentication
Notes	Performance figures could vary on different environments. The Max File System size (or the Max Volume size) doesn’t equal to the Max Internal Capacity, which is limited by the aggregated space of installed drives.
Add-on Packages
Audio Station
Cloud Station*
Maximum Concurrent File Transfers	128
DHCP Server
DNS Server
Download Station
Maximum Concurrent Download Tasks	50
Glacier Backup
HiDrive Backup
iTunes Server
Media Server
DLNA Certification
Photo Station
SpreadSheet
Surveillance Station
Maximum IP cam (Licenses required)	5 (including 2 Free License)
Total FPS (H.264)*	150 FPS @ 720p (1280×720) 60 FPS @ 1080p (1920×1080) 40 FPS @ 3M (2048×1536) 30 FPS @ 5M (2591×1944)
Total FPS (MJPEG)*	90 FPS @ 720p (1280×720) 54 FPS @ 1080p (1920×1080) 36 FPS @ 3M (2048×1536) 20 FPS @ 5M (2591×1944)
Video Station
Video Transcoding	Group 2
VPN Server
Notes	Shared folder syncing is not supported. When EDS14 works in an environment over 38°C, maximum IP camera will be lowered to 2 for the protection of your device. FPS information in H.264: 2 Ch @ 720P @ 60 FPS; 2 Ch @ 1080P @ 20 FPS; 1 Ch @ 3M @ 10; FPS; 1 Ch @ 5M @ 10 FPS. FPS information in MJPEG: 1 Ch @ 720P @ 20 FPS; 1 Ch @ 1080P @ 10 FPS; 1 Ch @ 3M @ 8 FPS; 1 Ch @ 5M @ 5 FPS Surveillance Station throughput is tested with Axis P1347 (H.264@1280×720@30FPS), using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. Recording video is saved every 5 minutes with the limit of archive folder up to 1GB.
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Welcome Note X 1 AC Power Adapter X 1 RJ-45 LAN Cable X 1
Optional Accessories	Remote Camera License Pack VS240HD VS360HD
