ONV68240-4QFM Core Switch 24 cổng 10G SFP+ & 4 cổng 100G QSFP28 Uplink

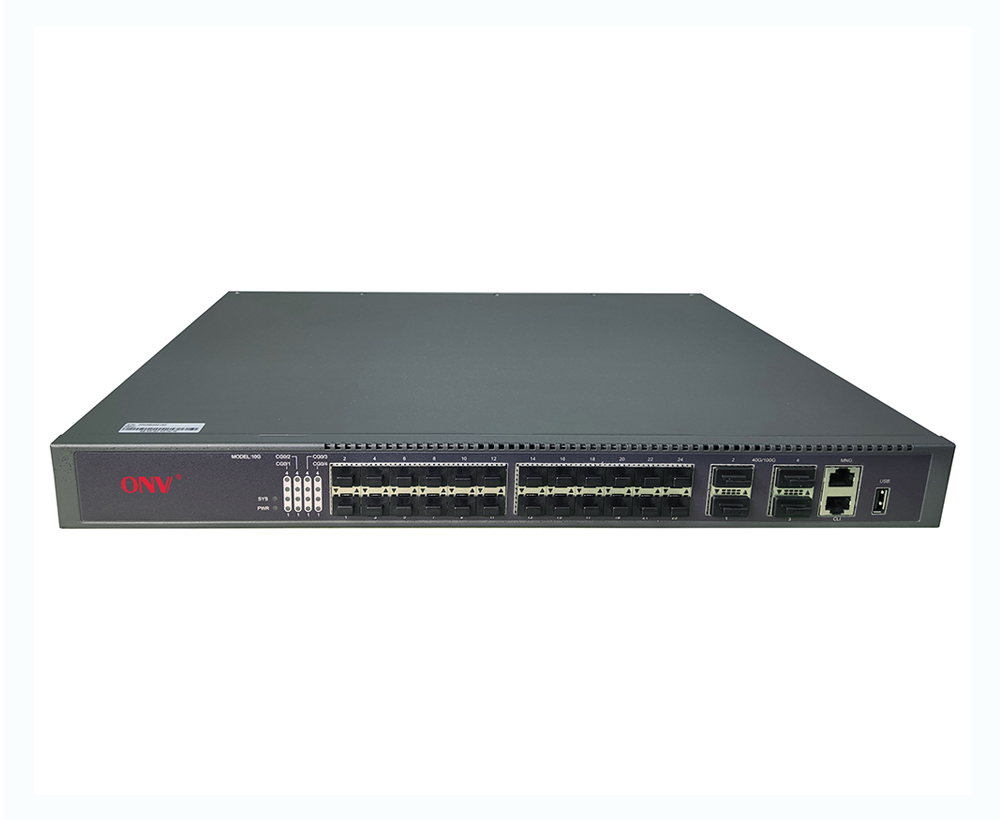

ONV68240-4QFM là Core Switch Managed Layer 3 hiệu suất cao, có thể đáp ứng các yêu cầu của MAN thế hệ tiếp theo, trung tâm dữ liệu, mạng khuôn viên và mạng doanh nghiệp. Nó có 24 cổng 1/10G SFP + và 4 cổng 40G/100G (QSFP28) với mật độ cao và sử dụng thiết kế vỏ gắn kết 1U/19 inch.
Thông số kỹ thuật ONV68240-4QFM
| Model | ONV68240-4QFM |
Interface Characteristics |
|

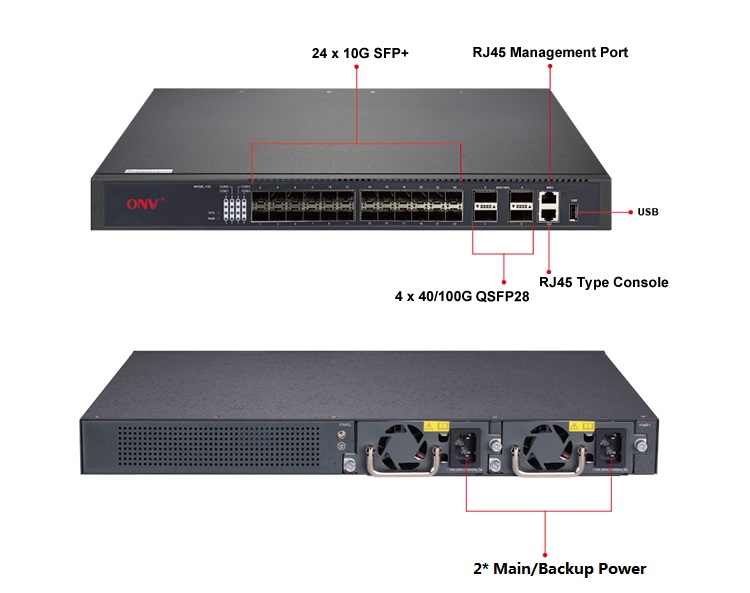

| Fixed Port | 1*USB 2.0 port
24*1/10G SFP+ fiber ports (Data) 1*RS232 Console port(9600,8,N,1) 4*40G/100G QSFP28 fiber ports (Data) 1*10/100/1000M RJ45 management port(Data) |
| Ethernet Port | 10/100/1000Base-T auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
| Optical Fiber Port | 10G SFP+/ QSFP28 optical fiber ports, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
| Optical Cable/ Distance | Multi-mode: 850nm / 0 ~ 500m, single mode: 1310nm/ 0 ~ 40km, 1550nm/ 0 ~ 120km. |
Chip Parameter |
|
| Network Management Type | L3 |
| Network Protocol | IEEE802.3u 100Base-TX , IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X, IEEE802.3ae 10Gb/s Ethernet, IEEE802.3x |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 1.28Tbps (non-blocking) |
| Forwarding
Rate@64byte |
952Mpps |
| MAC | 32K |
| Buffer Memory | 32M |
| Jumbo Frame | 16K |
| LED Indicator | Power: PWRA,PWRB (green), system: SYS (green), Fiber port: CG0-4(green) |
Power Supply |
|
| Total PWR / Input Voltage | 75W*2/ (AC100-240V) |
| Power Consumption | Standby<30W,Full Load<70W |

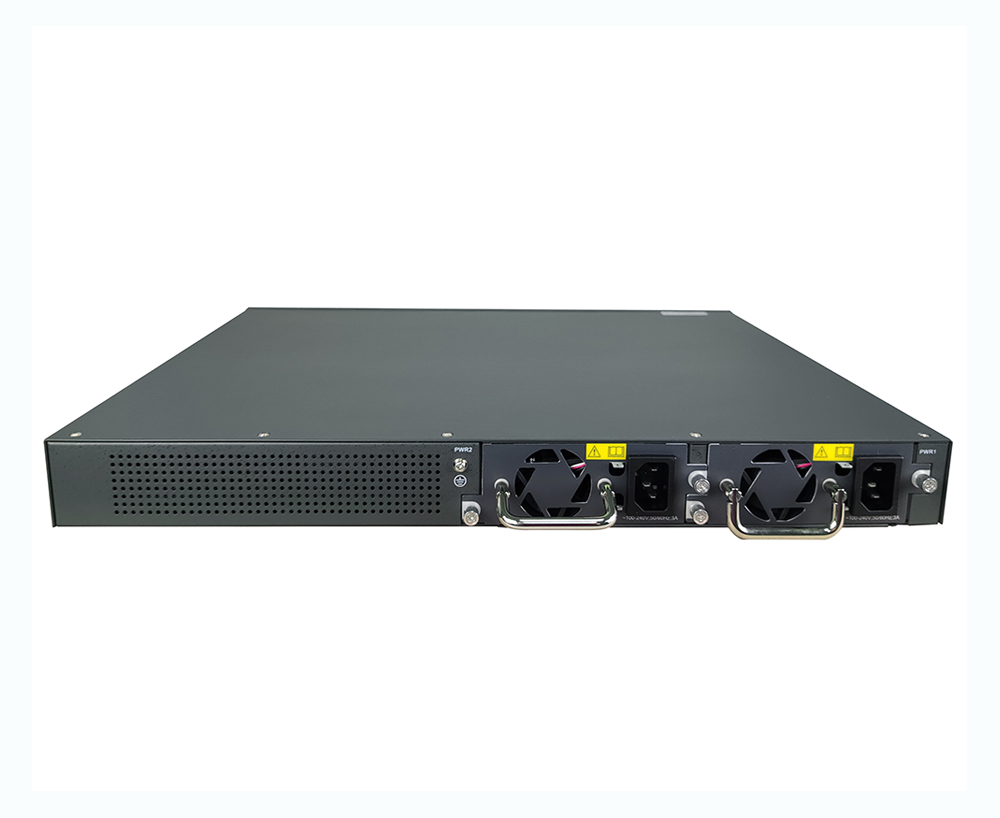

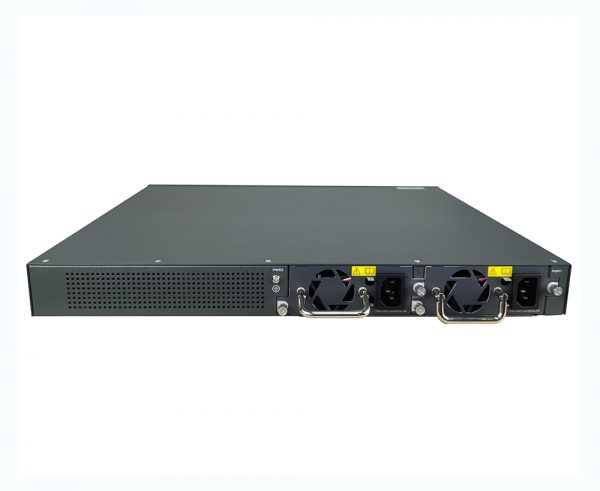

| Power Supply | Built-in power supply AC100~240V 50-60Hz 1A*2 |
Physical Parameter |
|
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 442.5*315*44mm |
| Net /Gross Weight | <6.0kg / <6.3kg |
| Installation | Desktop,19 inch 1U cabinet installation |
Certification & Warranty |
|
| Lightning protection / protection level | Port lightning protection: 6KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN60950
FCC Part 15 Class B, RoHS |
| Warranty | 3 years, lifelong maintenance. |
Network Management Features |
|
| Virtualization and Stacking | Virtualization
Distributed equipment management, distributed link aggregation, distributed flexible routing Stacking via standard Ethernet interface Local stacking and remote stacking MAD stack split detection based on LACP, BFD, ARP |
| IPv4 | PBR, ECMP
BFD for OSPF, BGP Static routing, RIP v1/v2, OSPF, BGP,IS-IS,BEIGRP |
| IPv6 | MLD V1/V2, MLD snooping
ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet IPv6 Static Routing, RIPng, OSPFv3,BGP4+ Manual tunnel, ISATAP tunnel, 6 to 4 tunnel IPv6 neighbor discovery, Path MTU Discovery |
| MAC Switching Capacity | Black-hole MAC items
IEEE 802.1AE MacSec MAC address filtering function Check and delete MAC address Configuring MAC address aging time Limit on MAC address learning number Static configuration and dynamically learning of MAC address |
| VLAN | GVRP
Private VLAN 4K Active VLAN QinQ & selective QinQ 1:1 and N:1 VLAN Mapping |
| Link Aggregation | 10GE port aggregation, Static aggregation, Dynamic aggregation |
| Flow Monitoring | sFLOW |
| DHCP | DHCP server/relay/client/snooping
DHCP auto-config and CWMP-TR069 DHCP Snooping option82/DHCP Relay option82 |
| STP/ERPS | ERPS(G.8032)
802.1D (STP), 802.1W (RSTP),802.1S (MSTP) BPDU protection, root protection and ring protection |
| Multicast | IGMP V1/v2/v3
IGMP Snooping IGMP Fast Leave PIM-SM and PIM-DM Multicast traffic cross VLAN duplication Multicast group policy and multicast number limit |
| ARP | Free ARP, Static entry, ARP anti-attack
Standard proxy ARP and local proxy ARP Dynamic ARP Inspection, ARP source suppression ARP inspection (check according to DHCP Snooping, 802.1x table entry, or IP/MAC static binding) |
| Mirroring | Flow mirroring, N:4 port mirroring, Local and remote port mirroring |
| MPLS VPN | MCE
MPLS TE MPLS OAM LDP protocol P/PE of MPLS VPN |
| QoS/ACL | CAR flow limit
Tail-Drop and WRED 802.1p/DSCP priority mapping Traffic policing and traffic shaping DRR, SP, and DRR+SP queue scheduling algorithms Hash load balancing to ensure the integrity of the traffic output session Traffic classification based on each field of the L2/L3/L4 protocol header Ingress and Egress ACL, matching L2, L3, L4, and IP quintuple, copy, forward, and discard |
| Security | uRPF
Port isolation Radius and BDTacacs+ IEEE 8021x certification DHCP Snooping, DHCP Option 82 Command line hierarchical protection Port security, IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Suppression of broadcast, multicast, and unknown unicast packet Defend against DDoS attack, SYN Flood attack of TCP, and UDP Flood attack |
| Reliability | ISSU
EAPS,ERPS HSRP,VRRP GR for OSPF and BGP BFD for OSPF and BGP Power supply 1+1 backup Static/LACP link aggregation and cross service card link aggregation |
| Management | NTP
ISSU Track System logs Ping,Tracert Power alarm Graded alarm SNMP v1/v2/v3 RMON event history 802.1AG and 802.3AH Fan, temperature alarm Console,Telnet,SSH 2.0 Debug information output Web browser management Telnet remote maintenance ZTP(Zero Touch Provisioning) sFLOW and other traffic statistics analysis SNMP(Simple Network Management Protocol) File upload and download management in TFTP mode |
| Energy Saving | IEEE802.3az green energy Ethernet |
| System | Category 5 Ethernet network cable
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or higher TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
Thông tin đặt hàng ONV68240-4QFM
| Model | Description | Power Supply |
| ONV68240-4QFM | L3 managed full 10G Ethernet core routing switch with 24*1/10G SFP+ fiber ports and 4*40/100G QSFP28 fiber slot ports. Redundant dual AC power supply, 19 inch 1U cabinet installation. | 75W*2
(hot plug and pull) |
| Ghi chú: Chưa bao gồm SFP | ||
Bộ sản phẩm gồm
| PACKING LIST | CONTENT | QTY | UNIT |
| 28-port full 10G core routing switch | 1 | SET | |
| AC power cable | 2 | PC | |
| RJ45 to DB9 adapter cable | 1 | PC | |
| Mounting kits(hanging ears) | 1 | SET | |
| Warranty card | 1 | PC |
