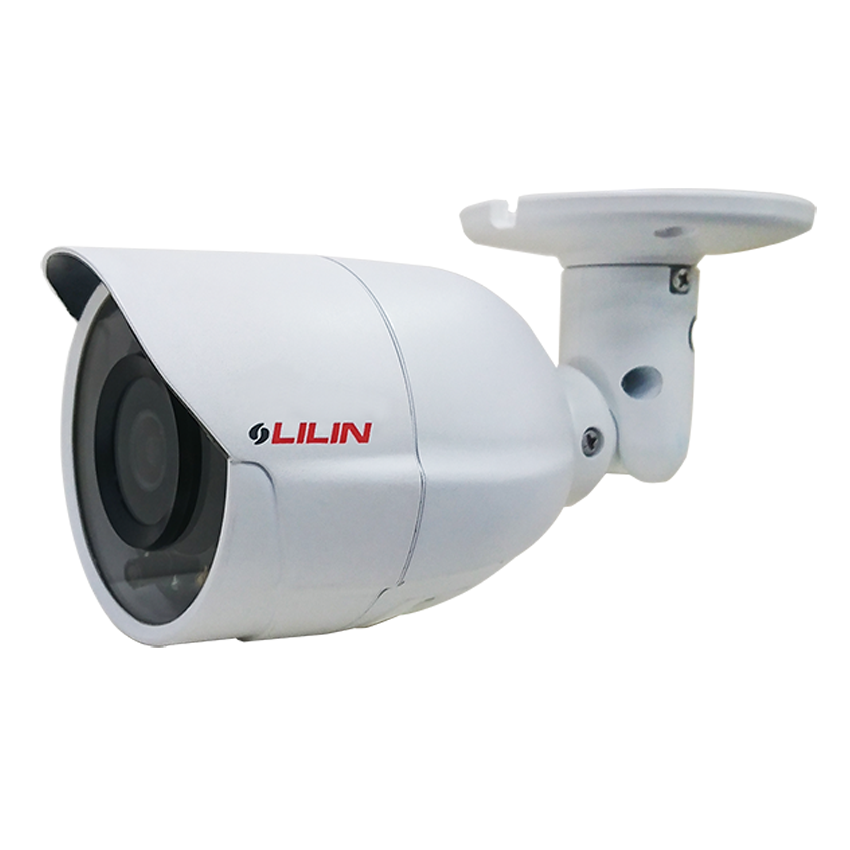

P2R8852E2 | 2MP | 60fps | 30M IR

Cảm biến hình ảnh 1 / 2.8 “CMOS

Điểm ảnh hiệu quả 2616 (H) × 1964 (V) = 5.137.824 (pixel)

Chuẩn nén video: H.265/HEVC, H.264, Motion JPEG

Tỷ lệ khung hình: 25 khung hình/giây @ 2592 × 1944

Chế độ HDR: tối đa 15 khung hình/giây @ 2592 × 1944

Ống kính: 2,8mm

Hổ trợ ONVIF Profile S

Tiêu chuẩn ngoài trời IP67

Danh mục: Camera Lilin Taiwan

Model	P2R8852E2
Image Sensor/Sensor type	1/2.8″ CMOS image sensor
Effective pixels	2616 (H) × 1964 (V) = 5,137,824 (pixels)
Video Compression	H.265/HEVC main profile, H.264 main and high profile , Motion JPEG
Resolution	5MP(2592 × 1944), 3.6MP(2560 × 1440), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240)
Frame Rates	Normal mode: up to 25 fps @ 2592 × 1944 HDR mode: up to 15 fps @ 2592 × 1944
Lens	2.8mm
Iris	F1.6
Angle of View	92.8° (H) 68.8° (V) 116.5° (D)
Max IR distance	30M
Infrared LED Angle	60°
Min. illumination/Low Light Mode (Colour)	Color : 0.01 Lux at F1.6 ; B/W : 0.004 Lux at F1.6 ; 0 Lux with IR LED ON
Video streaming	RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth
Video bitrate	128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, Smart H.264/H.265
Scanning System	Progressive Scan
IR cut filter	Auto / Day (Color) / Night (Mono) / Schedule
Window / Glass Thickness	Ø61 Heat Resistant Glass
Peak wavelength	850nm
White Balance	ATW-NARROW / ATW-WIDE / AWC(MANUAL)
3D Noise Reduction	Off / 1 – 32 Selectable
2D WDR	Off / Auto / x2 / x3 / x4 (by normal mode) Support Onvif
High Dynamic Range(HDR)	Up to 100dB (by HDR mode, 2 shutter line interleave)
Privacy Masking	Off / On (4 zones)
Sense Up	Off / 1 Frame / 2 Frames
Sense Up+	Yes
Auto Gain Control	60 dB Variable Gain
Shutter Time	1/30(1/25)s – 1/30000s
Video Management	ONVIF Profile S / IVS events, LILIN Navigator Enterprise 2.0 support, Third party VMS through LILIN HTTP API
Video Display	LILIN Universal ActiveX , LILIN Java Applet
OSD (On-Screen Display)	Position configurable text overlay for date, time, camera ID, event status and watermark with customizable user demand data
Protocols	IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S , SDDP, Bonjour , 802.1x
Access	Multiple user access levels with password protection
User accounts	10 user accounts available
Encryption	Base64 HTTP encryption, HTTPS encryption
OS	Embedded Linux 3.10
CE	Yes
FCC	Yes
PoE	Yes
Power Consumption	DC12V, 7.2W / PoE, 9.5W
Power Supply	DC12V ±10% / PoE (IEEE 802.3af compliant)
Network Interface/Ethernet	10/100 Mbps Base-T, RJ-45
IP Rating	IP67
ePTZ & Digital Zoom	Yes, ROI (Region of Interest)
CPU requirement	Intel® Core™ i7 or higher grade
OS requirement	Windows 7 or above
RAM requirement	8GB or above, Dedicated Graphics Card
Web browser	Microsoft® Internet Explorer® 9 or above
Users	10 simultaneous users
Alarm event actions	Motion / Tamper / Network lost detection / SmartEvent
Alarm event triggers	FTP / SMTP / HTTP post / SD card / SAMBA / SMTP Trap
SD Card (recording)	Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included)
CPU	Embedded SoC ARM Cortex-A9, 816MHz, 512MB DDR3L, 256MB flash memory
IVS (Intelligent Video Surveillance)	Motion Detection, Tampering Detection, Advanced Motion Detection, Tripwire, Traffic Light Detection, Object Counting
EV (Exposure Value)	Adjustable
Lens distorsion correction (LDC)	Yes
Multi IP address	Yes
IP address filter	IP address filter, MAC address filter
Mobile phone	Integrated to LILIN mobile app (LILIN Viewer), iPhone, iPad, Android support
Languages	English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese
Starting Temperature	-10°C – +50°C (14°F – 122°F)
Operating temperature	-40°C – +50°C (-40°F – 122°F)
Storage temperature	-25°C – +60°C (-13°F – 140°F)
Operating humidity	0% – 90% RH
Dimensions	74(W) × 69(H) × 189(D) mm
Weight	500g TBC
S / N Ratio	More than 50dB (AGC off)
Image Effects	Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation
Authentication	Digest HTTP authentication, RTSP authentication, TLS, 802.1x, DDNS via HTTPS
Material/ Construction	Aluminum alloy
Maintenance	Firmware update via HTTP and IP Scan; Firmware available at web site
