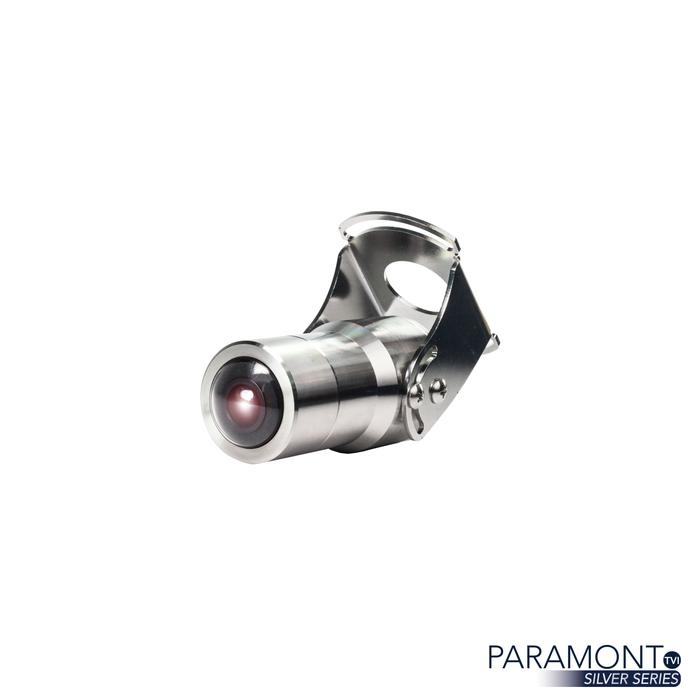

Camera Canada Invidtech PAR-ALLBSS: 2 Megapixel Fixed Mini Bullet

Model

PAR-ALLBSS23

Image Sensor

1/2.9” Sony Exmor CMOS image sensor

Active Pixel

1920(H) x 1080(V)

Resolution

1080p@30fps/1080p@25fps

Min. Illumination

Color : 1.0 lux, BW : 0.5 lux

Color DSS : 0.002 lux, BW DSS : 0.0008 lux

Scanning System

Progressive

Video Output

Universal AHD, CVI, TVI : 1080P

Analog: NTSC/ PAL CVBS

S/N Ratio

More than 50dB (AGC off)

AGC

Off/0 – 15

Shutter Speed

AUTO/MANUAL(1/50(60) ~ 1/50,000 sec)

SENS-UP

Off/X2 – X30

Brightness

0 – 100

Backlight

Off/BLC/HSBLC

D-WDR

Off/0 ~ 8

Defog

Off/Auto

Day & Night

Auto/Color/B&W/EXTERN

White Balance

ATW/AWC/INDDOR/OUTDOOR/Manual/AWB

DNR

Off/Low/Middle/High

Mirror

Off/MIRROR/V-FLIP/ROTATE

Sharpness

0 -10 steps

Privacy Mask

4 Masks

Motion Detection

Off/On

Language

English/Chinese/Germany/French/Italian

Spanish/Polish/Russian/Portuguese/Dutch/Turkish

Housing

IP68 Waterproof, Grade Steel | AISI 316

Power Source

DC12V ±10%

Power Consumption

Max 4.0 Watt at

Operating Temperature

-4° ~ 140°F (-20° ~ 60℃)

Operating Humidity

10% to 85%

Lens

2.3mm Megapixel lens

Dimension Φ x L

Φ1.92 x 4.29 inches (Φ49 x109mm)

Weight

1.19lb (540g) Approx
