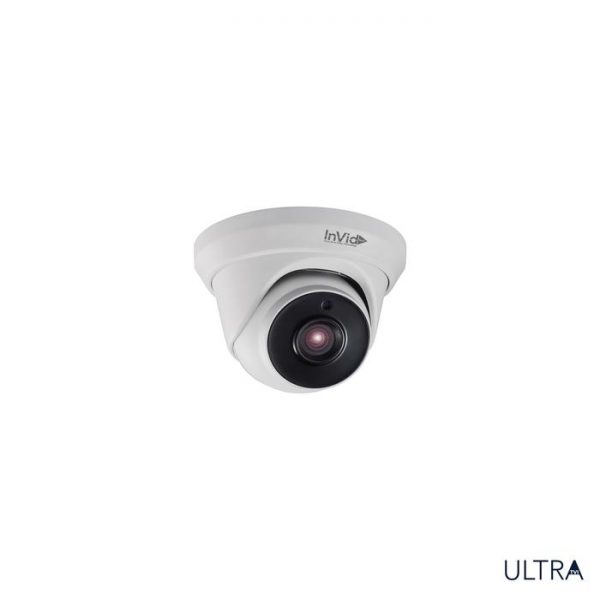

Camera Canada Invidtech ULT-C5TXIRL: 5 Megapixel Turret

Model Number

ULT-C5TXIRL

Image Sensor

5MP CMOS

Video Format

PAL / NTSC

Effective Pixels

2560(H)*1944(V)

Min. Illumination

0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

1/30s to 1/50,000 s

Lens

3.6mm (2.8mm optional)

Angle Adjustment

Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°

Day & Night

ICR

Video Frame Rate

2560*1944 @ 20fps

HD Video Output

1 HD-TVI output

CVBS Output

N/A

D/N Mode

Color / BW / Auto

Function

WDR, DNR, Mirror, Smart IR

WDR

DWDR

Working Temperature / Humidity

-40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing)

Power Supply

12 VDC+15%

Power Consumption

Max. 3.5W

Weather Proof Ratings

IP67

IR Range

Up to 120 ft

Communication

OSD (UTC Control) via DVR

Dimensions

θ4.33”x3.67”

Weight

0.77lbs
