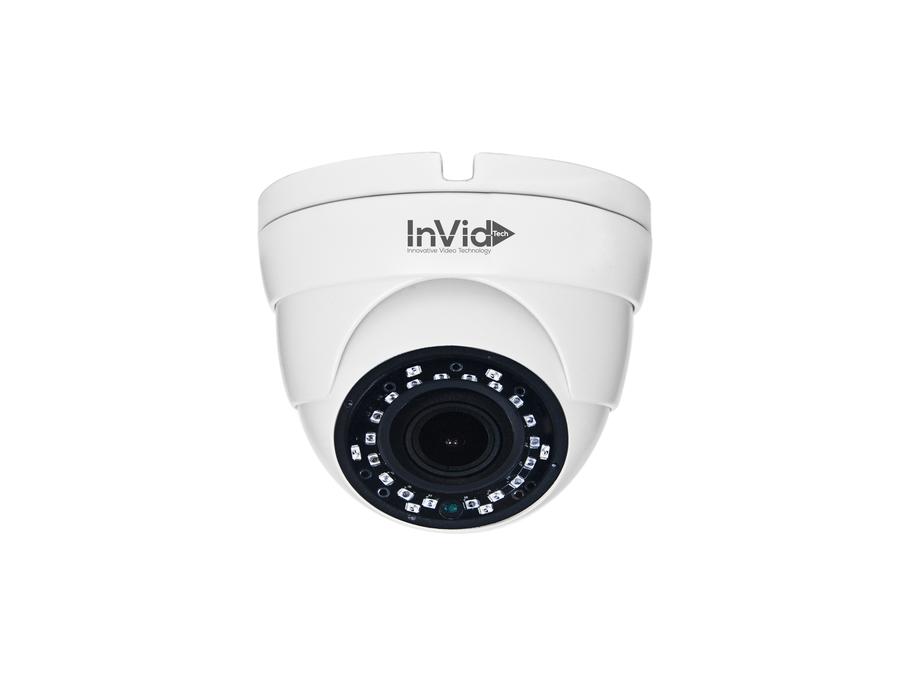

Camera Canada Invidtech PAR-ALLTXIRA2812D: 2 Megapixel TVI/AHD/CVI/Analog Outdoor Turret Camera 2.8-8mm A/F Motorized, 65’ IR Range, Dual Voltage

Model

PAR-ALLTXIRA2812D

Filter

Removable IR Cut Filter

Image Sensor

1/2.9”2.1Mega-pixel Sony CMOS

Pixels

1920(H)*1080(V)

Horizontal Resolution

1080P

Viewing Angle

Horizontal:   90°-   28°

Minimum Lux

0Lux (24PCs SMD IR LEDs ON)

Vertical Frequency

NTSC:60Hz  PAL:50Hz

Scanning System

Progressive

S/N Ratio

≥52dB

Electronic Shutter

NTSC:1/60-1/100,000S  PAL:1/50-1/100,000S

Lens

2.8-12mm Motorized Varifocal IR Lens

White Balance

ATW

OSD

YES

BackLight Compensation

AUTO

AUTO Gain Control

ON

Defog

OFF/ON

DNR

OFF/ON

DWDR

OFF/ON

Day&Night

AUTO/Color/BW/Ext

Available IR Distance

65’

Gamma

0.45

IP Rating

IP66

Video Output

HD-TVI (Default), AHD, CVI, CVBS

Power Supply

DC12V±10%/AC24V±10%

Current consumption

DC12V:800mA (Max)/AC24V:300mA(MAX)

Dimension

Φ4.72”×3.93” (Φ120×100mm)

Weight

1.74lb (790g)

Storage Temperature

-22° – 140°F (-30° – 60℃)

Operating Temperature

-22° – 104°F (-30° – 40℃)
