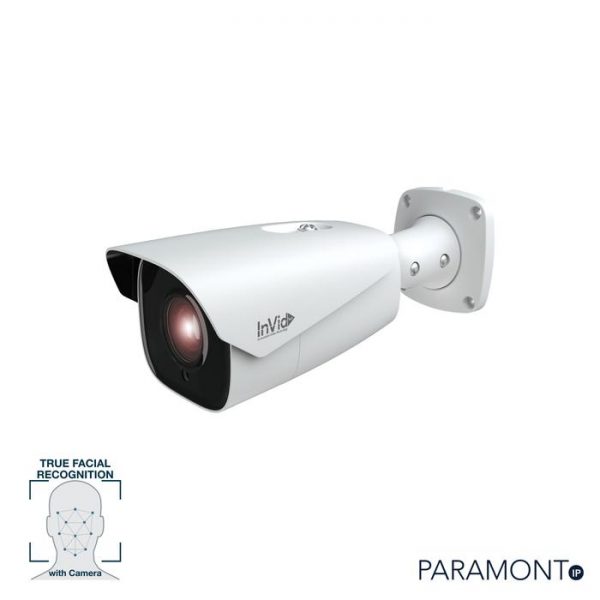

Camera Canada Invidtech PAR-P2FACE722G1: 2 Megapixel bullet, 7-22mm Lens

2 Megapixel IP Plug & Play Outdoor Bullet, True Facial Recognition with NVR, 7-22mm Auto-Focus Motorized, White Light Detection, CVBS Output, D-WDR, Audio Input/Output, SD Card Slot, PoE/12VDC

Danh mục: Camera Invidtech Canada

Mô tả
Sản phẩm liên quan

2 Megapixel IP Plug & Play Outdoor Bullet, True Facial Recognition with NVR, 7-22mm Auto-Focus Motorized, White Light Detection, CVBS Output, D-WDR, Audio Input/Output, SD Card Slot, PoE/12VDC

Features

H.265/H.264/MJPEG Compression
True Day/Night
30 FPS Recording and Live
CVBS Video Output
SD Card Local Storage, 128GB
ONVIF
Smart Analytics
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform
Free MAC client software available to manage your system from your Apple computer
2 Megapixel (1920×1080) Resolution
Motorized Auto-Focus 7-22mm Lens
True Facial Recognition Capable with Compatible NVR
White Light Detection for True Facial Recognition
D-WDR
Audio Input/Output
IP67 Weather Resistant
12VDC/PoE Operation

Camera	PAR-P2FACE722G1
Image Sensor	1 / 2.8 “CMOS
Image Size	1920 × 1080
Electronic Shutter	1 / 25 s ~ 1 / 100000 s
Iris Type	Fixed Iris
Min. Illumination	0 lux
Lens	7~22mm @F1.4, horizontal FoV: 37°-22.5°; recommended face capturing distance: 16-49 Feet
Lens FOV	7-22mm: 37°-22.5° H, 21.5°-12.8° V, 42.3°-25.7 Crossline
Lens Mount	Φ14
Wide Dynamic Range	Digital WDR
BLC	Yes
HLC	Yes
Defogging	Yes
Digital NR	3D DNR
Angle Adjustment	Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°
Video Compression	H.265 / H.264 / MJPEG
H.264 Compression Standard	Baseline Profile/Main Profile/High Profile
Resolution	1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream	60Hz : 1080P/ 720P (1 ~ 30fps ); 50Hz : 1080P/ 720P (1 ~ 25fps )
Sub Stream	60Hz : D1/CIF (1~30fps); 50HZ:D1/CIF (1~25fps)
Third Stream	60Hz : CIF/480×240 (1~30fps); 50HZ: CIF/480×240 (1~25fps)
Bit Rate	128 Kbps ~ 6 Mbps
Bit Rate Type	VBR / CBR
Image Settings	ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpe NR,etc. adjustable through client software or web browser
ROI	Each ROI to be configured separately
Interfaces
Network	RJ45
Video Output	CVBS output (BNC × 1); one on-board CVBS output
Audio	1CH audio input; 1CH audio output
Storage	Built-in micro SD card slot, up to 128GB
Hardware Reset	Yes
RS 485	Yes
Alarm	1CH alarm input; 1CH alarm output
Functions
Remote Monitoring	Web browsing,CMS remote control
Online Connection	Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission
Network Protocol	Ipv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP 802.1x, UPnP, HTTPs, QoS
Interface Protocol	ONVIF
Storage	Network remote storage; micro SD card storage
Smart Alarm	Motion detection; Sensor alarm; SD card full; SD card error; IP conflict; Network disconnection
Intelligent Analytics	Object removal detection, regional intrusion detection, abnormal video detection, line crossing detection, people intrusion, people counting, crowd density, face detection (optional)
General function	Watermark, IP address filtering, video mask, heartbeat, password protection
PoE	Yes (802.3af)
LED View Distance	98-164ft
Ingress Protection	IP67
Face Detection
Face Detection	Pupil distance of a facial image over 20 pixel can be detected
Face Capturing	By precision detecting, tracing, capturing, scoring and screening the moving faces to get the most effective face snapshots
Panorama Capturing	Support panorama capturing and self-defined information overlay, like device ID, time, etc.
Intelligent Light Compensation	Built-in high efficient white light LEDs, time switch available
Others
Power Supply	DC12V/PoE
Power Consumption	< 12W
Operating Environment	-22°F~140°F (- 30 °C ~ 60 °C), Humidity: less than 95 % (non-condensing)
Dimensions ( mm )	Φ 100.3 × 279.5
Weight ( net )	Approx. 1.06KG
Installation	Wall mounting; ceiling mounting
