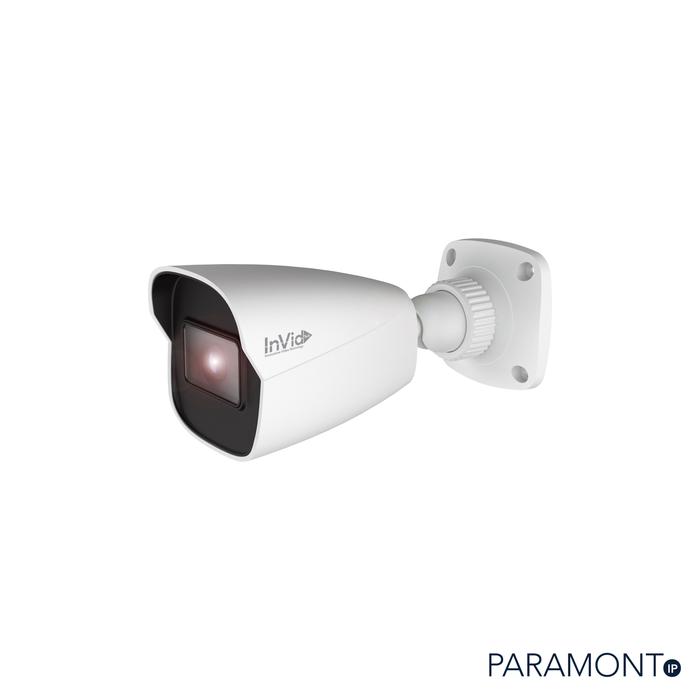

Camera Canada Invidtech PAR-P5BIR-LC: 5 Megapixel Mini Bullet

Camera

PAR-P5BIR-LC

Image Sensor

1 / 2.7 “CMOS

Image Size

2592×1944

Electronic Shutter

1 / 25 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Min. Illumination

0.0236 lux @F2.0, AGC ON; 0 lux with IR

Lens

2.8 mm @F1.85, horizontal field of view: 93.4°

Lens Mount

M12

Wide Dynamic Range

Digital WDR

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°


Video Compression

H.265 / H.264

H.265 Compression Standard

Main Profile@Leve4.1 High Tier

Resolution

5MP ( 2592 × 1944 ), 4MP ( 2560 × 1440 ), 1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, CIF, 480 × 240

Main Stream

60Hz : 5MP(1~20fps)/4MP(1~30fps)/ 1080P(1~30fps)/720P(1~30fps)

Sub Stream

60Hz :720P (1~15fps)/D1 (1~30fps)/CIF (1~30fps)

Third Stream

60Hz : D1/CIF/480×240 (1~30fps)

Bit Rate

64 Kbps ~ 5 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

No

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Interfaces

Simultaneous Live View

4

User/Host

Up to 16-Users, 3-Levels, Admin/Advance/Common

Network

RJ45

Video Output

n/a

Audio

n/a

Storage

n/a

Functions

Remote Monitoring

Web browsing,CMS remote control

Online Connection

Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS

Interface Protocol

ONVIF, API/SDK

Storage

Network remote storage

Smart Alarm

Motion detection

General Function

Watermark, IP address filtering, video mask, heartbeat, password protection

Intelligent Analytics

Object removal detection, abnormal video signal detection, intrusion detection and line crossing detection

PoE

Yes

IR Distance

65 Feet

Ingress Protection

IP67

Other

Power Supply

DC12V/PoE

Power Consumption

< 5W

Operating Environment

-22°F~140°F (-30 °C ~ 60 °C),Humidity: less than 95 % (non-condensing)

Dimensions

6.59” x 2.93” x 2.93” (167.5 × 74.5 × 74.5)

Weight ( net )

Approx. 0.84lb (0.38KG)

Installation

Ceiling mounting; Wall mounting
