| • 1/3″ Progressive CMOS Sensor |
| • Full HD (1920 x 1080 30P) TVI Video Out |
| • WDR (Wide Dynamic Range) |
| • 3D + 2DNR (Digital Noise Reduction) |
| • SENS UP, SMART IR, DEFOG |
| • HLMASK (High Light Masking) |
| • Privacy Masking, Motion Detection |
| • LSC (Lens Shading Correction) |
| • ACE (Adaptive Contrast Enhancer) |
| • 3.6mm Mega Pixel Lens (ICR) |
| • 36pcs IR LEDs |
| • OSD (On Screen Display) Option |
|

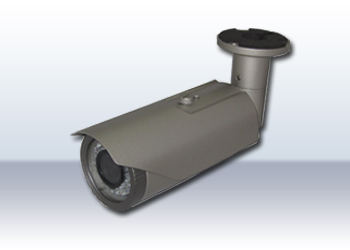

MODEL NAME |
SBP22T-FIR6236 |
|
Image Device |
1/3″ SONY CMOS, 2.43Megapixel |
|
Total Pixels |
2000(H) x 1241(V) / 2,482,000 (Pixel) |
|
Effective Pixels |
1984(H) x 1225(V) / 2,430,400 (Pixel) |
|
Scanning System |
Progressive Scan |
|
Synchronization |
Internal Synchronization |
|
Horizontal Resolution |
More than 1,000 TV Lines |
|
Video Output |
1080P(Full-HD) TVI (NTSC/PAL) |
|
S/N Ration |
More than 50dB (AGC Off) |
|
Lens |
3.6mm Mega Pixel Lens (ICR) |
|
LED |
36pcs IR LEDs |
|
Storage Temp. |
14˚F ~ 122˚F (-10˚C~ + 50˚C) |
|
Operating Temp. |
4˚F ~ 140˚F (-20˚C~ + 60˚C) |
|
Humidity |
Less than 80% |
|
Power Source |
DC12V 430mA |
|
Dimensions |
65.5mm(Φ) X 81.5mm(H) X 250mm(L) |
|
Net Weight |
Approx. 600g |
➡️Thông tin liên hệ mua hàng :
CÔNG TY TNHH GIẢI PHÁP VÀ XÂY LẮP TRƯỜNG SƠN
– ? Địa chỉ : Phòng 702A, Lầu 7, Tòa nhà Centre Point, 106 Nguyễn Văn Trỗi, Phường 08, Quận Phú Nhuận, Hồ Chí Minh
– ? Văn phòng kinh doanh : 214/11 Nguyễn Oanh, Phường 17, Quận Gò Vấp, TPHCM
– ? Điện thoại : (0282) 247 1357 – ? Hotline : 0916 799 345 – Email: info@truongsonsolutions.com
