• 1/3″ Progressive CMOS Sensor
• Full HD (1920 x 1080 30P) TVI Video Out
• WDR (Wide Dynamic Range)
• 3D + 2DNR (Digital Noise Reduction)
• SENS UP, SMART IR, DEFOG
• HLMASK (High Light Masking)
• Privacy Masking, Motion Detection
• LSC (Lens Shading Correction)
• ACE (Adaptive Contrast Enhancer)
• 3.6mm Mega Pixel Lens (ICR)
• 54pcs IR LEDs
• OSD (On Screen Display) Option

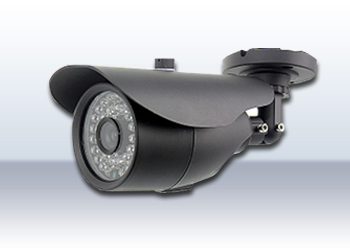

Camera Hàn Quốc SECU-VISION SBP22T-FIR75K54
• 1/3″ Progressive CMOS Sensor
• Full HD (1920 x 1080 30P) TVI Video Out
• WDR (Wide Dynamic Range)
• 3D + 2DNR (Digital Noise Reduction)
• SENS UP, SMART IR, DEFOG
• HLMASK (High Light Masking)
Features
Specification
|
MODEL NAME |
SBP22T-FIR75K54 |
|
Image Device |
1/3′ SONY CMOS, 2.43Megapixel |
|
Total Pixels |
2000(H) x 1241(V) / 2,482,000 (Pixel) |
|
Effective Pixels |
1984(H) x 1225(V) / 2,430,400 (Pixel) |
|
Scanning System |
Progressive Scan |
|
Synchronization |
Internal Synchronization |
|
Horizontal Resolution |
More than 1,000 TV Lines |
|
Video Output |
1080P(Full-HD) TVI (NTSC/PAL) |
|
S/N Ration |
More than 50dB (AGC Off) |
|
Lens |
3.6mm Mega Pixel Lens (ICR) |
|
LED |
54pcs IR LEDs |
|
Storage Temp. |
14˚F ~ 122˚F (-10˚C~ + 50˚C) |
|
Operating Temp. |
4˚F ~ 140˚F (-20˚C~ + 60˚C) |
|
Humidity |
Less than 80% |
|
Power Source |
DC12V 550mA |
|
Dimensions |
70mm(Φ) X 215mm(L) X 82.2mm(H) |
|
Net Weight |
Approx. 700g |
Connection Layout
