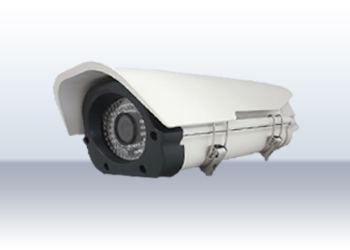

Camera Hàn Quốc SECU-VISION SHP22T-VIR1390A

 MODEL NAME

SH22T-VIR1390A

 Image Device

1/3′ SONY CMOS, 2.43Megapixel

 Total Pixels

2000(H) x 1241(V) / 2,482,000 (Pixel)

 Effective Pixels

1984(H) x 1225(V) / 2,430,400 (Pixel)

 Scanning System

Progressive Scan

 Synchronization

Internal Synchronization

 Horizontal Resolution

More than 1,000 TV Lines

 Video Output

AHD,TVI,CVI or CVBS OUTPUT (NTSC/PAL)

 S/N Ration

More than 50dB (AGC Off)

 Lens

2.8~12mm Mega Pixel Lens (ICR)

 LED

90pcs IR LEDs

 Storage Temp.

14˚F ~ 122˚F (-10˚C~ + 50˚C)

 Operating Temp.

4˚F ~ 140˚F (-20˚C~ + 60˚C)

 Humidity

Less than 80%

 Power Source

DC12V 700mA

 Dimensions

170mm(W) X 105mm(H) X 337mm(D)

 Net Weight

Approx. 1.4Kg
