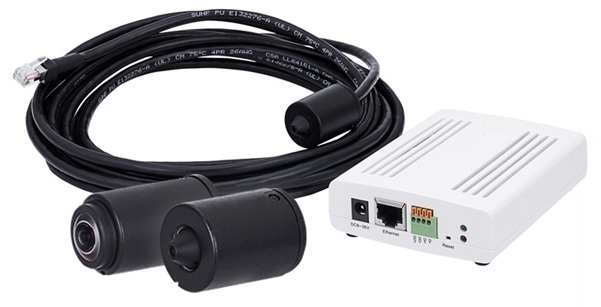

Split-Type Camera System 2.0 Megapixel Vivotek VC8101 (with CU8161-H)
-Bảo hành: 24 tháng.
Split-Type Camera System 2.0 Megapixel Vivotek VC8101 (with CU8161-H)
-Discreet, Recessed-Mount Camera Units.
-Supports 1 Camera Unit 2MP WDR Pinhole.
-Two-Way Audio on Video Core.
-Real-time H.264 and MJPEG Compression
-Smart Stream II to Optimize Bandwidth Efficiency.
-WDR Pro for Unparalleled Visibility in High Contrast Environments.
-3D Noise Reduction.
-Video Rotation for Corridor View.
-Built-in IEEE 802.3af Compliant PoE.
Đặc tính kỹ thuật
| Model | VC8101 (With CU8161-H) |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC Card Slot |
| Seamless Recording | |
| Video | |
| Compression | H.264 & MJPEG |
| Video Source | 1 VIVOTEK camera unit |
| Maximum Streams | 4 simultaneous streams |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Configurable video cropping for bandwidth saving Smart Stream II | |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D Noise Reduction, video rotation |
| Audio | |
| Audio Capability | Two-Way Audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | External Audio input |
| External Audio output | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, ARP, SSL, TLS |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45) |
| ONVIF | Supported, specifications available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card |
| File upload via HTTP, SMTP, FTP, NAS server and SD card | |
| General | |
| Connectors | RJ-45 connector for Network/PoE connection x 1 |
| RJ-12 connector for camera unit connection x 1 | |
| Audio input x 1 | |
| Audio output x 1 | |
| DC 8-36V power input x 1 | |
| Digital input x 1 | |
| Digital output x 1 | |
| LED Indicator | System power and status indicator |
| Power Input | 8-36VDC |
| IEEE 802.3af PoE Class 2 | |
| Power Consumption | Max. 5.5 W |
| Dimensions | 105 (W) x 84 (D) x 30 (H) mm |
| Weight | 119 g |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) |
| Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) | |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~43 (streaming only). Internet Explorer 7.x or 8.x |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
| Model | CU8161-H: Pinhole |
| Image Sensor | 1/2.7 inch Progressive CMOS |
| Maximum Resolution | 30 fps @ 1920 x 1080 |
| Focal Length | f = 3.7 mm |
| Aperture | F2.5 |
| Field of View | 93° (Horizontal) |
| 48° (Vertical) | |
| 117° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Minimum Illumination | 1.10 Lux @ F2.5 (Color) |
| Pan/ tilt/ zoom Functionalities | ePTZ: 12x digital zoom |
| S/N Ratio | 53 dB |
| Dynamic Range | 100 dB |
| Dimensions | Ø 24 x 37 mm (Without cable) |
| Weight | 221 g |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) |
| Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) | |
-Bảo hành: 24 tháng.
