Split-Type Camera System Vivotek VC8201-M33 (5m)

– Recessed Mount camera units.

Danh mục: Camera IP Vivotek

Split-Type Camera System Vivotek VC8201-M33 (5m)

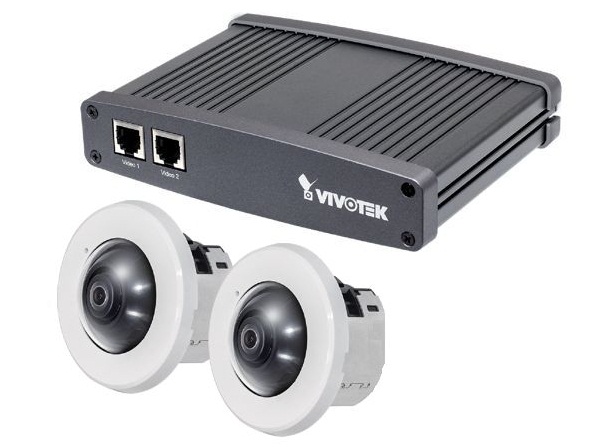

– Split-type camera system VC8201-M33 includes one VC8201 Video Core and two CU8171 Camera Units.

– Recessed Mount camera units.

– Built-in microphone on camera units.

– Maximum cable connection: 5m.

– Real-time Compression: H.264 and MJPEG.

– 3D Noise Reduction.

– Power input: 12VDC/ PoE802.3af.

Specifications

Model	VC8201-M33 (CU8171 x 2)
Camera Features
Image Sensor	1/2.5 inch Progressive CMOS
Maximum Resolution	15 fps @ 1696 x 1696
Focal Length	f=1.27mm
Aperture	F2.0
Field of View	180° (H); 180° (V); 180° (D)
Shutter Time	1/5s ~1/32,000s
WDR Technology	WDR enhanced
Minimum Illumination	0.66Lux@ F2.0, 50 IRE (Color)
Pan/ Tilt/ Zoom	12x digital zoom
On-board Storage	MicroSD/SDHC/SDXC card slot
Video
Compression	H.264 & MJPEG
Video Source	Up to 2 VIVOTEK camera units
Maximum Streams	3 simultaneous streams per camera unit
Video Streaming	Adjustable resolution, quality and bitrate; Configurable video cropping for bandwidth saving
Image Settings	Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D Noise Reduction
Audio
Audio Capability	Audio input
Compression	G.711, GSM-AMR
Network
User	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Interface	10 Base-T/100 BaseTX Ethernet (RJ45)
General
Connectors	RJ-45 connector for Network/PoE connection RJ-12 connector for camera unit connection 2 DC 12V power input Digital input 2 Digital output *2
Power Input	12V DC/ PoE802.3af
Power Consumption	Max. 9.3 W (12VDC) Max. 10.8 W (PoE)

– Sản xuất tại Taiwan.

– Bảo hành 24 tháng.
