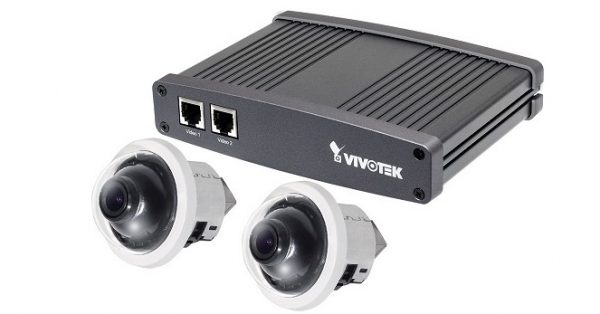

Split-Type Camera System Vivotek VC8201-M11 (8m)

– Recessed Mount Camera Units.

Danh mục: Camera IP Vivotek

Split-Type Camera System Vivotek VC8201-M11 (8m)

– Split-type camera system VC8201-M11 includes 1-video core and 2-camera CU8131.

– Recessed Mount Camera Units.

– Built-in Microphone on Camera Units

– Maximum Cable Connection: 8m.

– Real-time Compression: H.264 and MJPEG.

– 3D Noise Reduction.

– Power input: 12V DC/ PoE802.3af.

Specifications

Model	VC8201-M11 (CU8131 x 2)
Camera Features
Image Sensor	1/3 inch Progressive CMOS
Maximum Resolution	30 fps @ 1280×800
Focal Length	f=3.6mm
Aperture	F1.8
Field of View	86° (H); 51° (V); 103° (D)
Shutter Time	1/5s ~1/32,000s
WDR Technology	WDR Pro
Minimum Illumination	1.05 Lux @ F1.8, 50 IRE (Color)
Tilt Range	70°
Pan/ Tilt/ Zoom	ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
On-board Storage	MicroSD/SDHC/SDXC card slot
Video
Compression	H.264 & MJPEG
Video Source	Up to 2 VIVOTEK camera units
Maximum Streams	3 simultaneous streams per camera unit
Dynamic Range	110 dB
Video Streaming	Adjustable resolution, quality and bitrate; Configurable video cropping for bandwidth saving
Image Settings	Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D Noise Reduction
Audio
Audio Capability	Audio input
Compression	G.711, GSM-AMR
Network
User	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Interface	10 Base-T/100 BaseTX Ethernet (RJ45)
General
Power Input	12V DC/ PoE802.3af
Power Consumption	Max. 9.3 W (12VDC) Max. 10.8 W (PoE)
Dimensions	Ø 145 x 105 x 32 mm
Weight	Net: 360 g (VC8201)

– Sản xuất tại Taiwan.

– Bảo hành 24 tháng.
