Split-Type Camera System Vivotek VC8201-M13 (5m)
– 2 Camera Options: 1MP WDR or 5MP Fisheye Camera.
Split-Type Camera System Vivotek VC8201-M13 (5m)

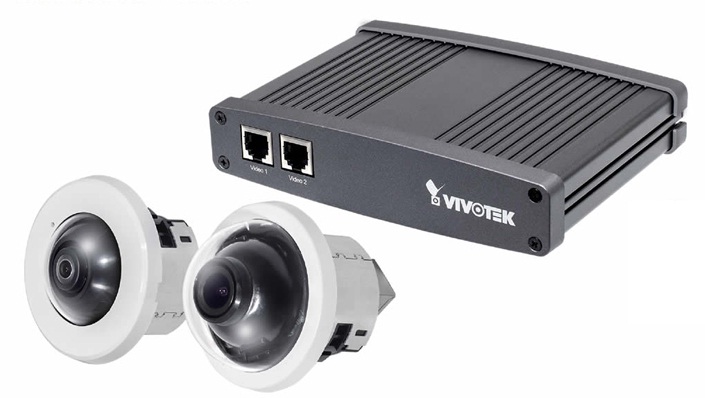

– Split-type camera system VC8201-M13 includes 1-video core and 2-camera with CU8131 + CU8171.
– 2 Camera Options: 1MP WDR or 5MP Fisheye Camera.
– Recessed Mount Camera Units.
– Built-in Microphone on Camera Units.
– Maximum Cable Connection: 5m.
– Real-time Compression: H.264 and MJPEG.
– 3D Noise Reduction.
– Power input: 12V DC/ PoE802.3af.
Specifications
| Model | VC8201-M13 |
| Camera Features | |
| Image Sensor | 1/3 inch Progressive CMOS (CU8131) |
| 1/2.5 inch Progressive CMOS (CU8171) | |
| Maximum Resolution | 30 fps @ 1280 x 800 (CU8131) |
| 15 fps @ 1696 x 1696 (CU8171) | |
| Focal Length | f=3.6mm (CU8131) |
| f=1.27mm (CU8171) | |
| Aperture | F1.8 (CU8131) |
| F2.0 (CU8171) | |
| Field of View | CU8131: 86° (H); 51° (V); 103° (D) |
| CU8171: 180° (H); 180° (V); 180° (D) | |
| Shutter Time | 1/5s ~1/32,000s |
| WDR Technology | WDR Pro (CU8131) |
| WDR enhanced (CU8171) | |
| Minimum Illumination | CU8131: 1.05Lux@F1.8, 50IRE (Color) |
| CU8171: 0.66Lux@ F2.0, 50 IRE (Color) | |
| Tilt Range | 70° (CU8131) |
| Pan/ Tilt/ Zoom | CU8131: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| CU8171: 12x digital zoom | |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264 & MJPEG |
| Video Source | Up to 2 VIVOTEK camera units |
| Maximum Streams | 3 simultaneous streams per camera unit |
| Video Streaming | Adjustable resolution, quality and bitrate; Configurable video cropping for bandwidth saving |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D Noise Reduction |
| Audio | |
| Audio Capability | Audio input |
| Compression | G.711, GSM-AMR |
| Network | |
| User | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ45) |
| General | |
| Connectors | RJ-45 connector for Network/PoE connection RJ-12 connector for camera unit connection *2 DC 12V power input Digital input *2 Digital output *2 |
| Power Input | 12V DC/ PoE802.3af |
| Power Consumption | Max. 9.3 W (12VDC) Max. 10.8 W (PoE) |
– Sản xuất tại Taiwan.
– Bảo hành 24 tháng.
