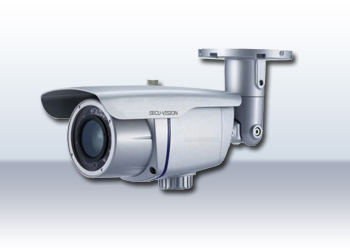

Camera Hàn Quốc SECU-VISION SVNN71B54XR

Model Name

SVNN71B54XR

CPU

ARM1176JZF-S (400 MHz, Instruction cache: 32kbyte, data cache

Flash

2Gbit Flash memory

SDRAM

2Gbit DDR3

Image sensor

2 Mega 1/1.9′ SONY progressive scan CMOS

Total Pixels

2065(H) x 1565(V) 3.23 Megapixel

Effective Pixels

2065(H) x 1553(V) 3.20 Megapixel

S/N Ratio

More than 50dB

Min. Illumination

0 Lux (IR On)

IR Distance

80M (4 Built-in Power LED’s)

Day & Night

ICR

Lens

4.4~10mm Motorized Zoom Lens

Video compression

H.264 High Profile@4.0, MJPEG–Image quality: 3 Steps

Resolutions

Up to 1920×1080  2MP

Frame rate

Triple Stream / 1st stream: 30fps@1920×1080
2nd stream: 30fps@1280×720,3rd stream: 30fps@640×480

Video streaming

Triple stream with H.264/MJPEG, Adjustable frame rate, CBR/VBR in H.264

Pan/Tilt/Zoom

Digital PTZ

Corridor view

Corridor view in H.264 (90degree/ 270degree)

Image setting

Brightness, contrast, Sharpness,Day & Night,Auto White Balance
Auto Exposure,Privacy Mask,DSS, Effect – Color, Mirror/V-Flip, etc

Audio Streaming

Two Way

Audio Compression

G.711

Sample Rate

8KHz

Alarm In/Out

In: 1, Out: 1

Security

Password Protection, User access log, HTTPS encryption

Supported protocol

HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP,
RTSP, RTP, TCP, UDP, ICMP, DHCP

Intelligent video

Object based Motion detection up with 12x 12 block
Tamper detection with Global scene change and defocus.

Alarm events

File upload via ftp, E-mail, Notification via email,SD Card.

Video buffer

5MB pre-alarm and 180 sec (max) post-alarm

Firmware upgrade

Remote upgrade via network

API

CGI Interface document, ActiveX Interface(ocx(dll) + document)

Power Source

DC12V/1.5A, PoE(Power over Ethernet): 802.3af-Optional

Storage

Micro SD Slot (Built-in)

Power Consumption

Max. 11W with IR

Net Weight

1,500g

LED’s

Power, Network Connection

Dimension

109.9mm(W) x 146.3mm(H) x 297mm(D) incl. Bracket

Operating Temperature

-10 degree~50 degree Celsius(14F~122F)

Included Software

NVR C/S (16 Channel), IP Installer (Windows only)
