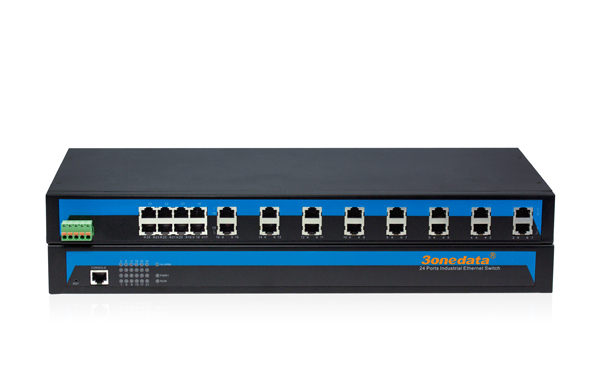

Switch Công Nghiệp 24 Cổng Ethernet IES5024

Mã: Model : IES5024 Danh mục: Switch công nghiệp 3Onedata

Mô tả
Sản phẩm liên quan

1.Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
2.SW-Ring ring network patent technology (Fault recovery time<20ms）
3.Support RSTP, way exchange time<50ms
4.Support static multicast, IGMP Snooping and GMRP
5.Support Port based VLAN and IEEE 802.1Q VLAN
6.Support QOS absolutely and opposite priority
7.Support rate control, Broadcast storm control
8.Support WEB, SNMP and Telnet configuration
9.Support MAC address learning, aging automatic
10.Support DHCP server and port frame statistics
11.Support email warning and relay warning
12.Support port status display, data update.
13.Support configuration file up and download
14.Support 1 channel relay alarm output
15.Industrial grade 4 design, -40-75℃ working temperature
16.IP30 protection grade, 19-inch rack mounting
17.No fan design

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
Protocol: ARP, ICMP, TCP, DHCP, DNS, HTTP, Telnet, SW-Ring, RSTP, SNMP
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Function
Switch function: SW-Ring, QOS, 802.1QVLAN, RSTP, SNMP, Port trunking, static multicast filter, port mirroring, bandwidth management, broadcast storm control, port flow statistics, upgrade online, up and download configuration file, user name access system
SW-Ring: Support Single, Couple, Chain, Dual homing
Exchange attribute
100M forward speed: 148810pps
100M maximum filter speed: 148810pps
Transmit mode: store and forward
System exchange bandwidth: 12.8G
MAC address table: 8K
Memory: 4M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
Console port: debug serial port carry out CLI command
Alarm port: 2 bit terminal block
1 channel relay alarm output
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
LED indicator
Run indicator: Run
Interface indicator: Link (1~24)
Power supply indicator: PWR
Alarm indicator: Alarm
Power supply
Input Voltage: 100～240VAC
Type of input: 3 bits terminal block
Overload current protection: 1.2A
Consumption
No-load consumption: 7.4W
Full-load consumption: 10.1W
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP30 protection grade, metal shell
Installation: 19” 1U rack
Size (W×H×D): 441.6mm×45mm×208.9mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES5024(plus terminal block) × 1
2. User manual × 1
3. Attached CD × 1
4. Certificate of quality × 1
5. Warranty card × 1
6. Power cable × 1

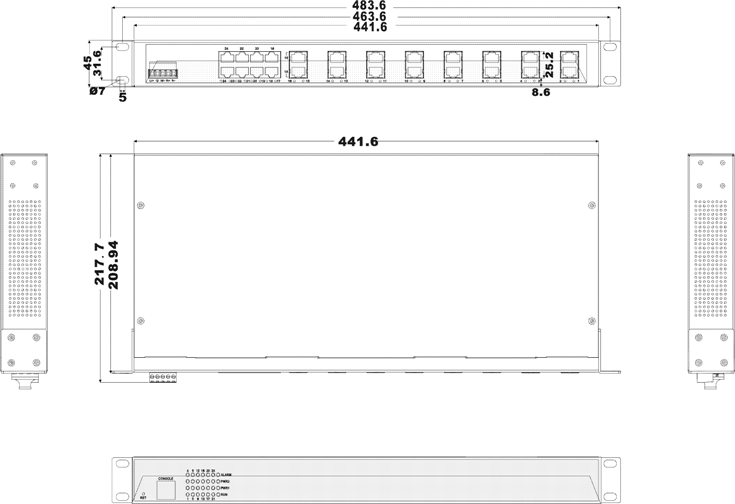

ies5024-kt

ies5024-datasheet

ies5024-usermanual

ies5024-software-manual

ies5024-cli-manual

IES5024:

24-port 10/100Base-T(X) Industrial Ethernet Switch, Web managed, Rack mounted, 100~240VAC/DC
