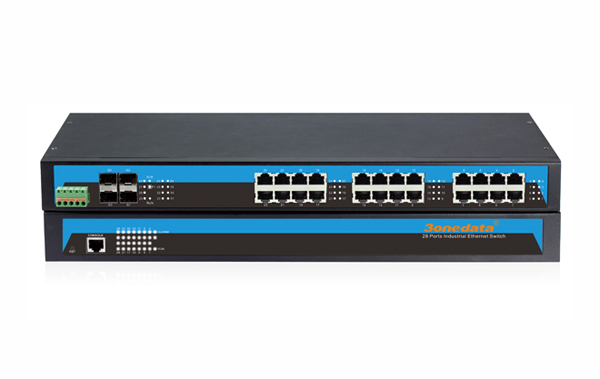

Switch công nghiệp 24 cổng Gigabit Ethernet + 4 cổng quang SFP IES5028G-4GS

Mã: Model : IES5028G-4GS Danh mục: Switch công nghiệp 3Onedata

Mô tả
Sản phẩm liên quan

◎Support IEEE802.3, 802.3u/802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W

◎Support 24 10/100/1000Base-TX Ethernet electrical ports and 4 1000Base-FX optical ports

◎8K MAC table size

◎Backplane bandwidth 56Gbps

◎Back pressure and flow control prevent data package loss under high network load

◎SW-Ring patented technology, support Single, Couple, Star, Double-star, failover time < 20ms

◎Support MAC auto learning, auto aging

◎Support WEB page configuration, import and export of configuration file

◎Support port status display, port data update

◎Support link trunking

◎Support port isolation

◎Support port-based VLAN, MAC-based VLAN, protocol-based VLAN

◎Support GMRP, IGMP Snooping, and static multicast

◎Support STP, RSTP, MSTP

◎Support network security management, access control

◎Support 802.1x certification

◎Support remote network monitoring

◎Support multi-port mirroring, single port mirroring, and network diagnosis

◎Support rate control, broadcast, unknown multicast, unknown unicast storm control

◎Support LLDP, QoS, DHCP Server, DHCP-monitor, ACL, loop back

◎Support password management and static address lock

◎Support 1 power input, and 1 relay alarm output

◎Industrial design, -40-75℃ working temperature

◎Solid aluminum plate shell

◎Fanless design

◎IP40 protection grade, 19″ standard rack-mounted

Technology

Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1W

Protocol: ARP, ICMP, TCP, DHCP, DNS, HTTP, Telnet, RSTP, MSTP, LLDP, LACP, IGMP, GMRP, SNMP

Flow Control: IEEE802.3x flow control, Back Pressure

Function

Switch Functions: SW-Ring, QOS, VLAN, MSTP, SNMP, ACL, LLDP, RMON, DHCP, GMRP, IGMP Snooping, link trunking, static multicast, port mirroring, port isolation, bandwidth management, storm control, port traffic statistics, online update, up and download configuration file, user name access system

SW-Ring: Single, Couple, Chain, Dual homing

Interface

Electrical port: 10/100/1000Base-TX self-adaptive RJ45 port, full / half duplex or forced working mode, support MDI/MDI-X self-adaptive

Optical port: 1000Base-FX

Alarm port: 2 bits 7.62mm terminal block

1 relay alarm message output

Console port: CONSOLE management port

Transmission distance

Twisted pair: 100M (standard CAT5/CAT5e cable)

Optical: Multi-mode 850nm/2Km

Multi-mode 1310nm/2Km/5Km

Single-mode 1310nm/20/40/60Km

Single-mode 1550nm/80/100/120Km

Switch Properties

1000M forward speed: 1488100pps

Transmit mode: store and forward

Switched bandwidth: 56G

Buffer: 1.5M

MAC table size: 8K

Indicator

Power indicator: PWR

Alarm indicator: ALARM

Run status indicator: RUN

Port connection / run status indicator: (1-28)

Power Supply

Input voltage: 220VAC (100~240VAC)

Terminal block: 3 bits terminal block

No-load power: 13.3W@220VAC

Full-load power: 21.2W@220VAC

Physical Characteristics

Shell: IP40 protection grade, metal shell

Installation: 19″ rack-mounted

Weight: 2950g

Size (H*W*D): 441.6mm×208.9mm×44.6mm

Working Environment

Working temperature: -40℃～75℃

Storage temperature: -40℃～85℃

Humidity: 0%~95% (no condensation)

Industry Standard

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD), Leve4

EN61000-4-4 (EFT), Level 3

EN61000-4-5 (Surge), Level 4

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty

Warranty period: 5 years

Certification

CE, FCC, RoHS, UL508 (pending)

Packing List

1. Ethernet switch IES5028G-4GS(plus terminal block) × 1

2. User manual ⅹ 1

3. CD ⅹ 1

4. Certificate of quality ⅹ 1

5. Warranty card ⅹ 1

6. Power cable ⅹ 1

ies5028g-4gs-kt

ies5028g-4gs-datasheet

IES5028G-4GS:

24-port 10/100/1000Base-T(X) + 4 * Gigabit SFP ports, rack-mounted, 100-240VAC
