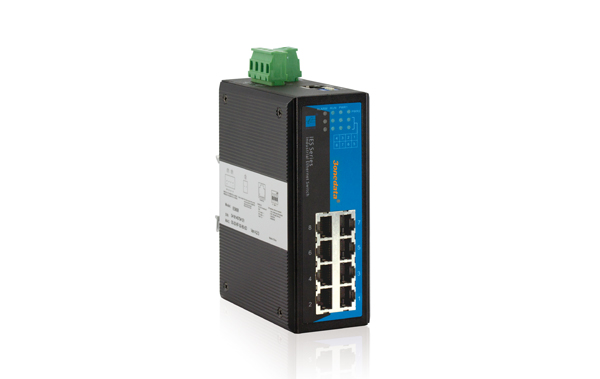

Switch công nghiệp 8 cổng Ethernet IES308

Technology
Standard: IEEE802.3、IEEE802.3u、IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Exchange attribute
100M forward speed: 148810pps
100M maximum filter speed: 148810pps
Transmit mode: store and forward
System exchange bandwidth: 2.0G
MAC address table: 2K
Memory: 1M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
Alarm port: 2 bit terminal block
1 channel relay alarm output
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
LED indicator
Run indicator: Run
Interface indicator: Link (1~8)
Power supply indicator: PWR1, PWR2
Alarm indicator: Alarm
Power supply
Input Voltage: 24VDC (12~48VDC)
Type of input: 4 bits 7.62mm terminal block
Support dual power supply redundancy
Support overload current protection
Relay
Current load capacity: 1A@30VDC
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN rail mounted
Weight: 800g

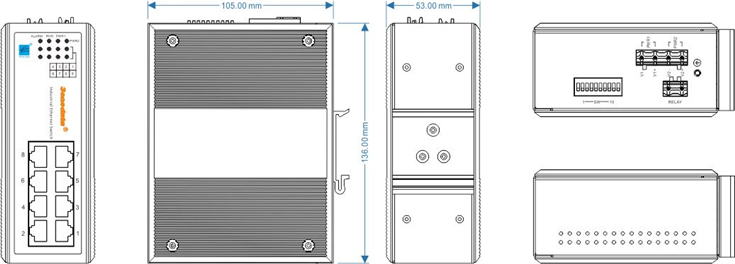

Size (W×H×D): 136 mm×52mm×105mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES308(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1
