Camera Canada Invidtech ULT-ALLMI: 2 Megapixel Miniature, Fixed Lens

Camera

ULT-ALLMI

Image Device

1/3” type Panasonic MOS

Scanning System

Progressive Scan

Total Pixels

1956(H) x1266(V) : 2.48Mega pixel

Effective Pixels

1944(H) x 1092(V) :2.12Mega pixel

Lens fitted

3.6mm board, 4.3mm pinhole

Min. Illumination

0.1Lux@F2.5 , 30IRE

Sync System

Internal

Electronic Shutter

60Hz : 1/30~1/30,000sec,  50Hz : 1/25~1/30,000sec

Angle of View

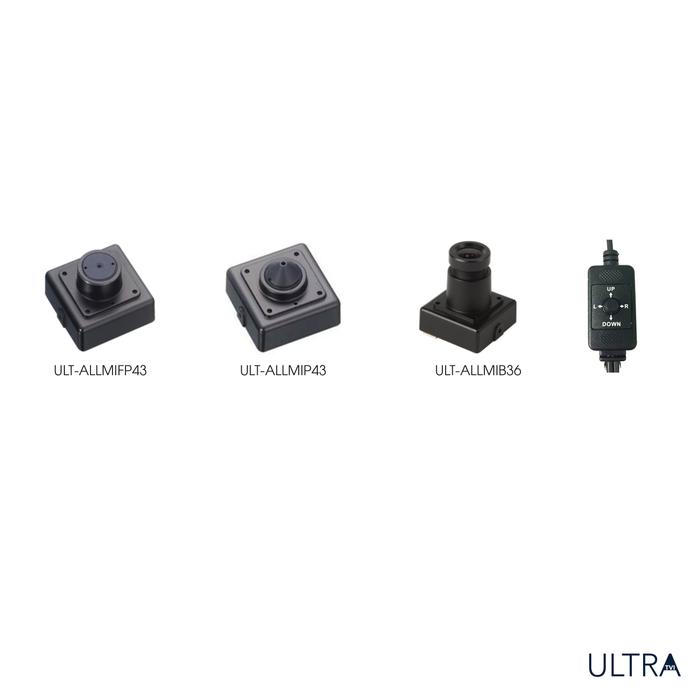

ULT-ALLMIFP43: 4.3mm (90(H)/57.80(V)/48.60(D) ULT-ALLMIP28: 2.8mm (125(H)/82(V)/56(D))

ULT-ALLMIP43: 4.3mm (78.20(H)/60.50(V)/44.50(D))

ULT-ALLMIB36: 3.6mm (96(H)/72(V)/120(D))

Video

Output

TVI/CVI/AHD/CVBS(960H)

Resolution& Frame rate

1080@30p/25p, 720@30p/25p

Other

Operating Temperature

14°~122° (-10℃~+50℃)

Storage Temperature

-4°~140° (-20℃~+60℃)

Humidity

Less than 80%

Power Consumption

DC12V(±10%), Max.130mA

Weight(g)

Approx. 220
