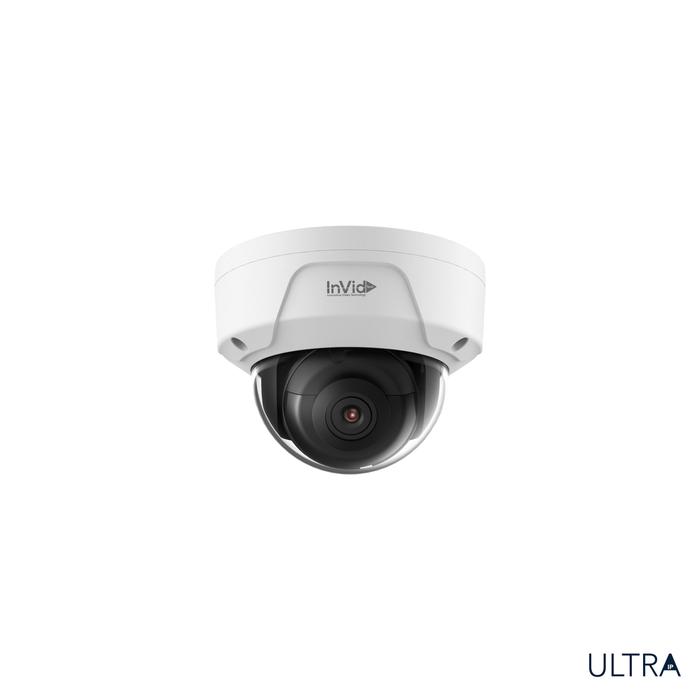

Camera Canada Invidtech ULT-P4DRIRN: 4 Megapixel, Plug & Play Dome

Model Number

ULT-P4DRIRN

Image Sensor

1/3” progressive scan CMOS

Min. illumination

0.01 lux @ (F1.2, AGC ON), 0 lux with IR

Shutter time

1/3s ~ 1/100,000s

Lens

4mm @ F1.2 2.8mm optional

Angle adjustment

Pan: -90° ~ 90°, tilt 0° ~ 75°, Rotation: 0-355°

Digital noise reduction

3D DNR

Wide dynamic range

True WDR

Day & night

ICR

Video compression

H.264 / H.264+ / MJPEG / H.265 / H.265+

Triple Stream

Yes

Max. image resolution

2688 × 1520

Frame rate

30fps (2688×1520)

Image settings

Saturation, brightness, contrast, sharpness adjustable

through client software or web browser

BLC

Yes, zone configurable

On Board Storage

Micro SD slot, up to 128GB

Alarm trigger

Motion detection, tampering alarm

Protocols

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP,

NTP, SNMP, HTTPS, FTP, 802.1x, Qos

System Compatibility

ONVIF, CGI

General functionalities

User authentication, watermark

Communication interface

1 RJ45 10M/ 100 M Ethernet interface

Operating conditions

-22°F ~ 140°F ( -30°C ~ 60°C) humidity 90% or less

(non-condensing)

Power supply

12 VDC +/- 10%, PoE (802.3af)

Power consumption

Max, 6W

Ratings

IP67 / IK10

IR range

Up to 90ft.

Dimensions

Ø 4.4” x 3.2” (111.7 x 81.28mm)

Weight

1.3 lbs (610g)
