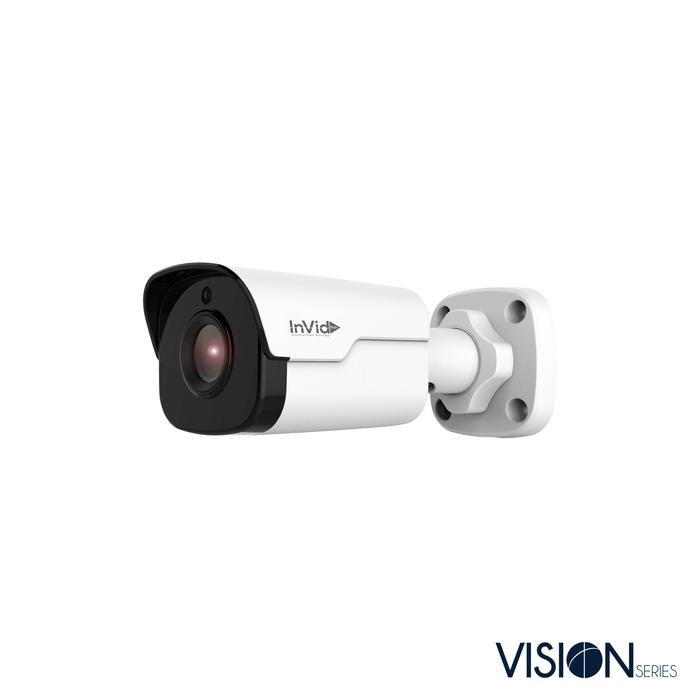

5 Megapixel IP Plug & Play, Outdoor Bullet,4mm Fixed Lens, 98′ EXIR Range, PoE/DC12V
Features
- 5 Megapixel (2592 x 1944) Resolution
- Fixed Lens
- Ultra H.265/H.265/H.264/MJPEG Compression
- True Day/Night
- D-WDR
- Cloud Upgradeable
- Smart EXIR Range up to 98’
- IP67 Weather Resistant
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) to manage multiple units & sites from a single platform
- Free MAC client software available to manage your system from your Apple computer
Camera |
VIS-P5BXIR4LC |
Sensor |
1/2.7”, 5.0 megapixel, progressive scan, CMOS |
Lens |
4.0mm@F2.0, 6.0mm@F2.0 |
DORI Distance |
4.0: 196ft. (Detect), 78ft. (Observe), 39ft. (Recognize), 19ft. (Identify) 6.0: 295ft. (Detect), 118ft. (Observe), 59ft. (Recognize), 29ft. (Identify) |
Angle of View(H) |
4.0mm: 79.7°, 6.0mm: 50.5° |
Angle of VIew(V) |
4.0mm: 51.8°, 6.0mm: 35.9° |
Angle of View(O) |
4.0mm: 98.0°, 6.0mm: 62.1° |
Adjustment Angle |
Pan: 0-360°, Tilt: 0-90°, Rotate: 0-360° |
Shutter |
Auto/Manual, 1~1/100000 s |
Min. Illumination |
Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on |
Digital Noise Reduction |
2D/3D DNR |
IR Range |
Up to 30m (98 ft) IR range |
Day/Night |
IR-cut filter with auto switch (ICR) |
S/N |
>52 dB |
WDR |
DWDR |
Video |
|
Video Compression |
Ultra 265,H.265, H.264, MJPEG |
H.264 code profile |
Baseline profile, Main Profile, High Profile |
Frame Rate |
Main Stream:4MP (2592*1944): Max. 15 fps; Sub Stream:720P (1280*720): Max. 20 fps; |
HLC |
Supported |
BLC |
Supported |
OSD |
Up to 4 OSDs |
Privacy Mask |
Up to 8 areas |
ROI |
Up to 2 areas |
Motion Detection |
Up to 4 areas |
Network |
|
Protocols |
IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
Compatible Integration |
ONVIF (Profile S), API |
Interface |
|
Network |
10M/100M Base-TX Ethernet |
General |
|
Power |
12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 4W |
Dimensions (L × W × H) |
167.3 x 62.9 x 62.7MM (6.6” x 2.5” x 2.5”) |
Weight |
0.37 kg (0.81 lb) |
Working Environment |
-30°F ~ 60°F (-3-22°C ~ +140°C), Humidity ≤ 95% RH(non-condensing) |
Ingress Protection |
IP67 |
VIS-P5BXIR4LC: 5 Megapixel Bullet, 4mm
