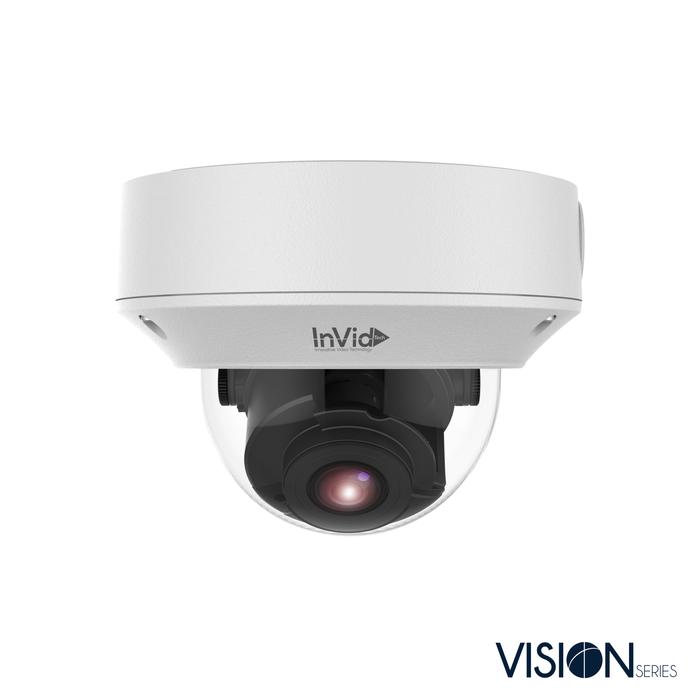

Camera Canada Invidtech VIS-P5DRXIRA2812LC: 5 Megapixel Dome, A/F Motorized Lens

5 Megapixel IP Plug & Play, Outdoor Rugged Dome, 2.8-12mm Auto-Focused Motorized, 98′ EXIR Range, SD Card Slot, PoE/DC12V

Danh mục: Camera Invidtech Canada

Mô tả
Sản phẩm liên quan

5 Megapixel IP Plug & Play, Outdoor Rugged Dome, 2.8-12mm Auto-Focused Motorized, 98′ EXIR Range, SD Card Slot, PoE/DC12V

Features

5 Megapixel (2592 x 1944) Resolution
Motorized Auto-Focus 2.8-12mm Lens
Ultra H.265/H.265/H.264/MJPEG Compression
True Day/Night
D-WDR
Cloud Upgradeable
Smart EXIR Range up to 98’
SD Card Local Storage, 128GB
IK10 Vandal Resistant
IP67 Weather Resistant
Withstand up to -40F Operation
12VDC/PoE Operation
ONVIF
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform
Free MAC client software available to manage your system from your Apple computer

Camera	VIS-P5DRXIRA2812LC
Sensor	1/2.7”, 5.0 megapixel, progressive scan, CMOS
Lens	2.8~12 mm, motorized zoom lens
DORI Distance	2.8mm: 206’ (Detect), 82’ (Observe), 41’ (Recognize), 20’ (Identify) 12mm: 885’ (Detect), 354’ (Observe), 177’ (Recognize), 88’ (Identify)
Angle of View (H)	105.3°~25.4°
Angle of View (V)	69.5°~18.4°
Angle of View (O)	136.9°~31.2°
Adjustment Angle	Pan: 0°~360°, Tilt: 0°~80°, Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Color: 0.005Lux (F1.6 AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265,H.265, H.264,MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:5MP (25921944): Max. 20fps; Sub Stream: 720P (1280720): Max. 30 fps; Third Stream: D1 (704×576): Max. 30fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration	ONVIF(Profile S, Profile G), API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
Edge Storage	MicroSD, up to 128GB
General
Power	DC12V±25%, PoE (IEEE802.3 af)
Power	Power consumption: Max 8.7W
Dimensions (Ø x H)	Φ148 x 111.3 mm (Ø5.8” x 4.4”)
Weight	0.92kg (2.0lb)
Working Environment	-40°F ~ 140°F (-40°C ~ +60°C), Humidity:10%~ 95% RH(non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10
Reset Button	Supported
