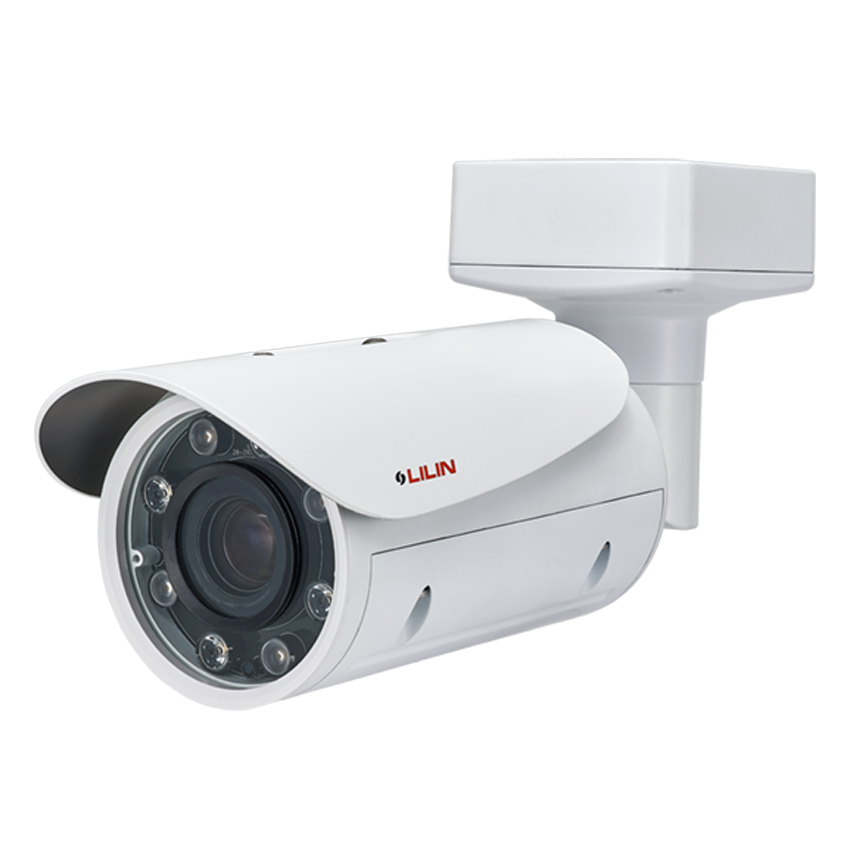

Z2R8052EX25, 2MP, 60fps, 100M IR

Cảm biến hình ảnh CMOS 5 megapixel
Nén video hiệu suất cao 5MP H.265 / HEVC và H.264 / AVC
Truyền phát đồng thời các luồng được mã hóa H.265 và H.264
Tự động lấy nét với thu phóng
Hỗ trợ DC-IRIS
Giảm nhiễu 3D (MCTF)
Chức năng 2D WDR
Chức năng HDR lên tới 100dB
Hỗ trợ PTZ kỹ thuật số
IVS được hỗ trợ
Giả mạo / Âm thanh / Báo động / Chuyển động / Mạng bị mất chức năng phát hiện sự kiện
Đèn LED hồng ngoại hiệu quả cao, khoảng cách rạng rỡ lên tới 100m

Model	Z2R8052EX25
Image Sensor/Sensor type	1/2.8″ CMOS image sensor
Effective pixels	2616 (H) × 1964 (V) = 5,137,824 (pixels)
Video Compression	H.265/HEVC main profile, H.264 main and high profile , Motion JPEG
Resolution	5MP(2592 × 1944), 3.6MP(2560 × 1440), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240)
Frame Rates	Normal mode: up to 25 fps @ 2592 × 1944 HDR mode: up to 15 fps @ 2592 × 1944
Min. illumination/Low Light Mode (Colour)	Color : 0.1 Lux at F1.6(W) ; B/W : 0.02 Lux at F1.6(W) ; 0 Lux with IR LED ON
Lens	5.3 – 130 mm
Iris	F1.6(W) – F4.3(T)
Angle of View	55.0° (W) – 2.3(T) (H) 41.6° (W) – 1.7(T) (V) 67.9° (W) – 2.8(T) (D)
Auto Focus	One Push
Max IR distance	100M (Wide:45m – Tele:130m)
Infrared LED Angle	20°, 45°
Video streaming	RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth
Video bitrate	128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, Smart H.264/H.265
Scanning System	Progressive Scan
IR cut filter	Auto / Day (Color) / Night (Mono) / Schedule
Window / Glass Thickness	Ø82 heat resistant glass & Rain repellent glass
Peak wavelength	850nm
White Balance	ATW-NARROW / ATW-WIDE / AWC(MANUAL)
3D Noise Reduction	Off / 1 – 32 Selectable
2D WDR	Off / Auto / x2 / x3 / x4 (by normal mode) Support Onvif
High Dynamic Range(HDR)	Up to 100dB (by HDR mode, 2 shutter line interleave)
Privacy Masking	Off / On (4 zones)
Sense Up	Off / 1 Frame / 2 Frames
Sense Up+	Yes
Auto Gain Control	60 dB Variable Gain
Shutter Time	1/30(1/25)s – 1/30000s
Audio	Two-way Audio, G.711 u-law / PCM / AAC, SIP
Audio Input / Output	Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block
Video Management	ONVIF Profile S / IVS events, LILIN Navigator Enterprise 2.0 support, Third party VMS through LILIN HTTP API
Video Display	LILIN Universal ActiveX , LILIN Java Applet
Protocols	IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S , SDDP, Bonjour , 802.1x
Alarm Input / output	Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block
Access	Multiple user access levels with password protection
User accounts	10 user accounts available
Encryption	Base64 HTTP encryption, HTTPS encryption
OS	Embedded Linux 3.10
CE	Yes
FCC	Yes
Power Consumption	DC12V, 12W / PoE, 14W
Power Supply	DC12V ±10% / PoE (IEEE 802.3af compliant)
Control interface	RS-485, Half duplex, Support MLP2, PELCO D/P communication protocol
Network Interface/Ethernet	10/100 Mbps Base-T, RJ-45
IP Rating	IP67
Vandal Resistant Rating / IK Rating	IK10
ePTZ & Digital Zoom	Yes, ROI (Region of Interest)
CPU requirement	Intel® Core™ i7 or higher grade
OS requirement	Windows 7 or above
RAM requirement	8GB or above, Dedicated Graphics Card
Web browser	Microsoft® Internet Explorer® 9 or above
Users	10 simultaneous users
Alarm event actions	FTP / SMTP / HTTP post / SD card / SAMBA / SMTP Trap
Alarm event triggers	Motion / Tamper / Audio / Alarm / Network lost detection / SmartEvent
OSD (On-Screen Display)	Position configurable text overlay for date, time, camera ID, event status and watermark with customizable user demand data
SD Card (recording)	Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included)
CPU	Embedded SoC ARM Cortex-A9, 816MHz, 512MB DDR3L, 256MB flash memory
IVS (Intelligent Video Surveillance)	Motion Detection, Tampering Detection, Advanced Motion Detection, Tripwire, Traffic Light Detection, Object Counting
S / N Ratio	More than 50dB (AGC off)
Image Effects	Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation
Smart IR	Yes
EV (Exposure Value)	Adjustable
Lens distorsion correction (LDC)	Yes
Authentication	Digest HTTP authentication, RTSP authentication, TLS, 802.1x, DDNS via HTTPS
Multi IP address	Yes
IP address filter	IP address filter, MAC address filter
Maintenance	Firmware update via HTTP and IP Scan; Firmware available at web site
Mobile phone	Integrated to LILIN mobile app (LILIN Viewer), iPhone, iPad, Android support
Languages	English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese
Starting Temperature	-10°C – +50°C (14°F – 122°F)
Operating temperature	-40°C – +50°C (-40°F – 122°F)
Storage temperature	-25°C – +60°C (-13°F – 140°F)
Operating humidity	0% – 90% RH
Dimensions	116(W) × 112(H) × 372(D) mm
Weight	1800g
Material/ Construction	Aluminum alloy
