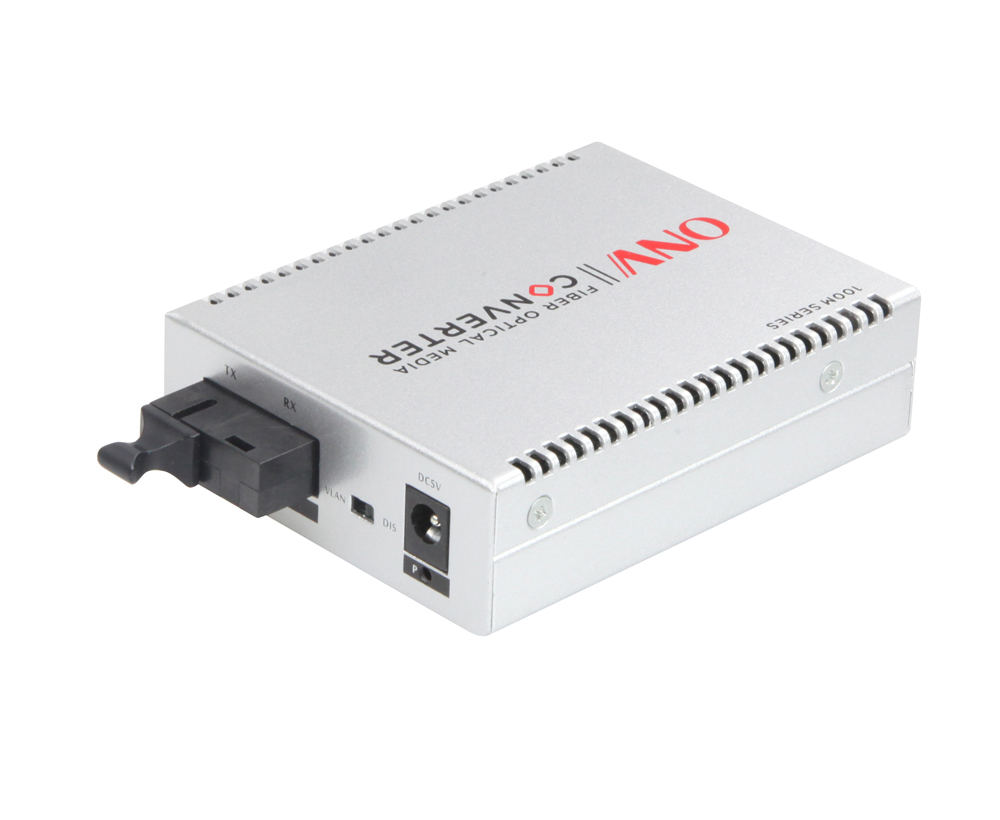

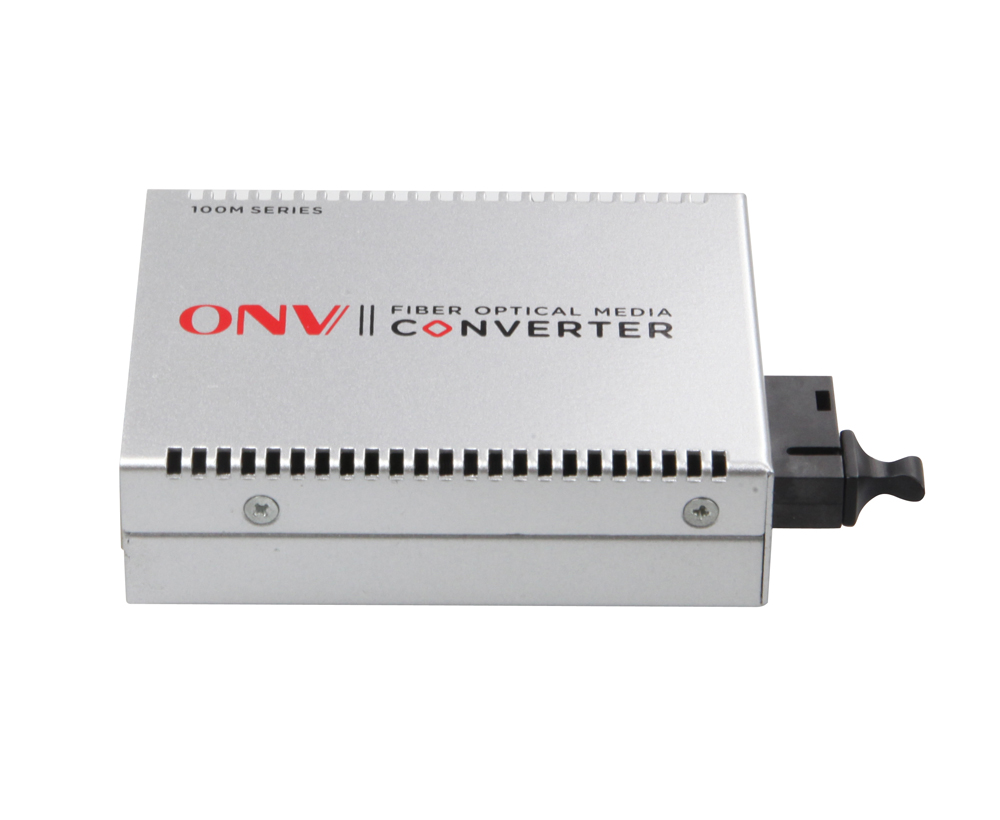

10/100M 4-port multimode dual fiber media converter

OVERVIEW

10/100M series of fiber optic transceivers can be use between 100Base-TX cable and 100Base-FX fiber cable or 10Base-T cable and 10Base-FL fiber cable for the data transmission usage. Suitable for intelligent community, it extends the network transmission from 100m to 100Km.

Also it can be realize the interconnection between motherboard server, Repeaters, hubs, switches, and terminal.Plug and play design makes easy installation, no on-site adjustment, all the light, electricity interfaces are in line with international standards, Products applicable to different harsh industrial environment.

FEATURE

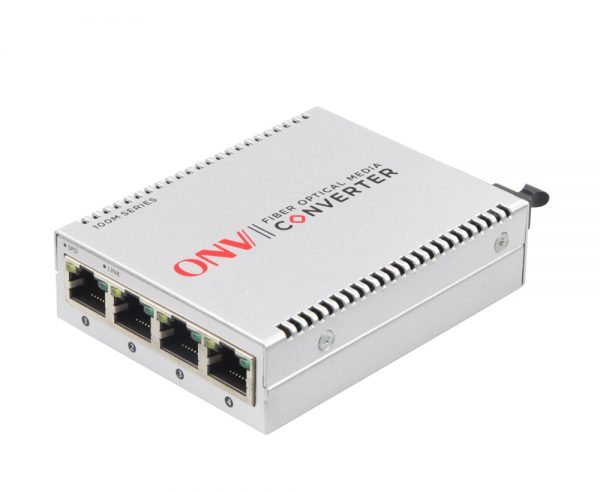

u 4*10/100M RJ45 Ports + 1*155M Fiber Port

u Ethernet 10Base-T or 100Base-TX to 100Base-FX fiber optical media converter

u Supports IEEE 802.3af, IEEE 802.3, IEEE 802.3U, IEEE 802.3X, IEEE 802.1d standard

u Ethernet RJ45 port supports the consultations between rate and duplex mode, parallel / crossover line adaptive function or enforcement mode

u Supports 10Mbps and 100Mbps automatically adaptive (Working bandwidth can be 200Mbps in full-duplex mode)

u Features with link loss diagnosis, electrical port link diagnosis and optical port link diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator

u Supports super long frame transmission, fully compatible with various expansion standards data frame

u Supports optical path interruption transfer function, and transfer the interruption-alarm to the opposite equipment

u Provides single/dual fiber transmission, many optical interface configuration for different wavelength and LED power,etc.

u Various status indicators, can easily and accurately show the working status of the interface and link

ORDERING INFORMATION

PACKING LIST
