Gigabit 4-port single-mode dual fiber media converter

OVERVIEW

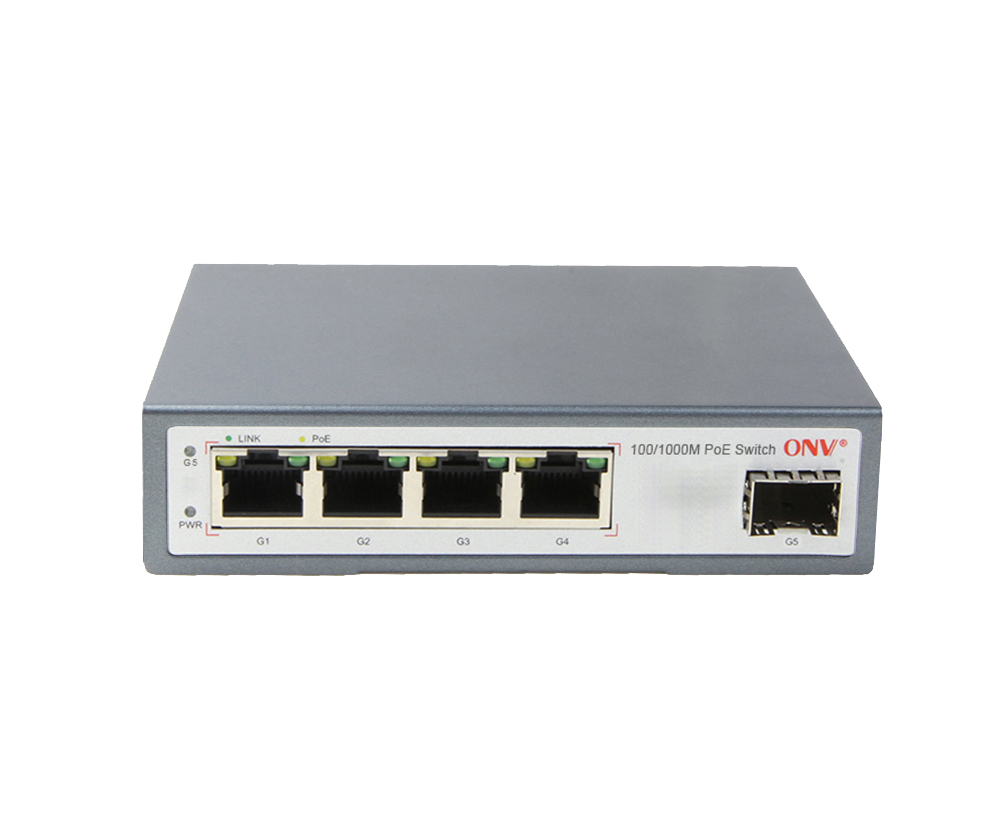

ONV1110-SLX-S4 series is a gigabit fiber media converter independently developed by ONV. It has 4* 10/100/1000Base-T ports and 1*1000M uplink SC /LC fiber port, User can select different optical modules, such as multimode dual fiber, single-mode dual fiber, and single-mode single fiber. The media converter adopts the enterprise-class Taiwan Realtek company’s carrier-grade chip solution, which has stable performance, good quality and high cost performance.It is suitable for optical fiber access application scenarios such as security monitoring, wireless coverage, intelligent transportation, and safe cities to form a cost-effective and stable communication network.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

Gigabit photoelectric Ethernet conversion transmission

◇ All series supports gigabit RJ45 port and gigabit fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Easy to use and simple to maintain

◇ Compatible with IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X network protocol, gigabit R45 port rate auto-negotiation

◇ Support full-duplex/half-duplex working mode with auto-negotiation function

◇ Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines

◇ Plug and play, no configuration required, centralized power supply and centralized connection management through 2U-14 slot rack

◇ LED working status indication for network diagnosis and fault checking, reducing maintenance workload.

Stable and reliable

◇ Low power consumption, No fan, galvanized steel casing.

◇ CCC,CE, FCC, RoHS.

◇ Comply with telecommunication network access requirements, and have the telecommunications equipment network access license of the MIIT.

DIMENSION

ORDERING INFORMATION

PACKING LIST
