10/100M PoE media converter

OVERVIEW

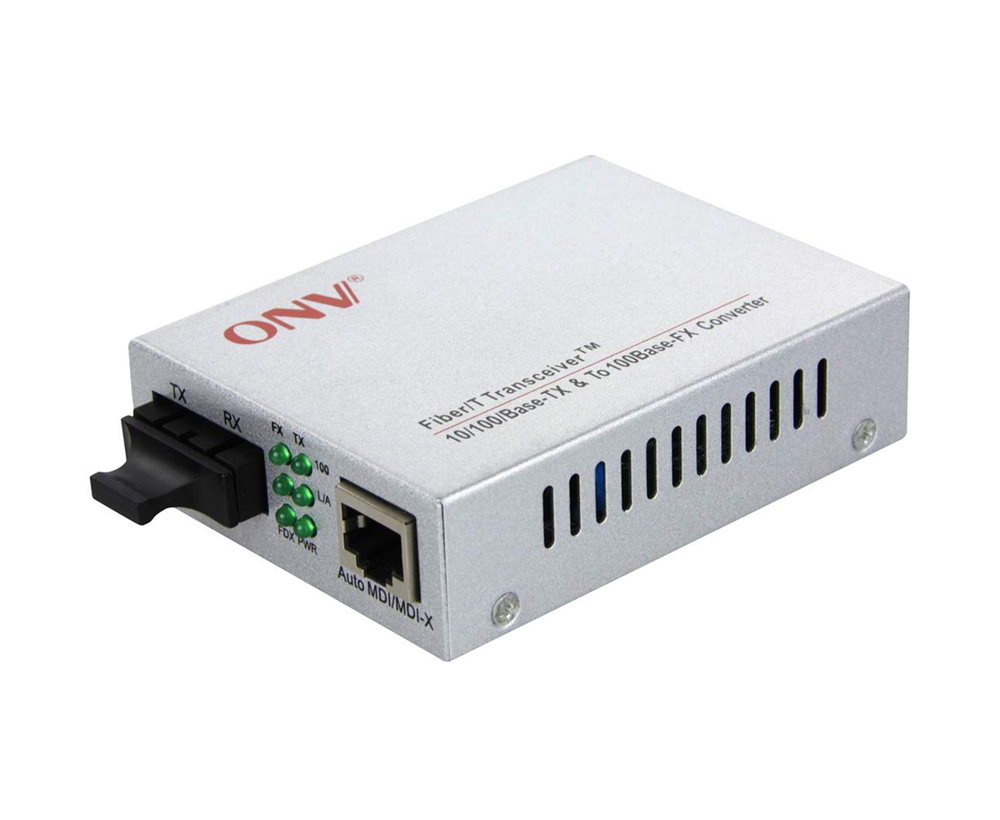

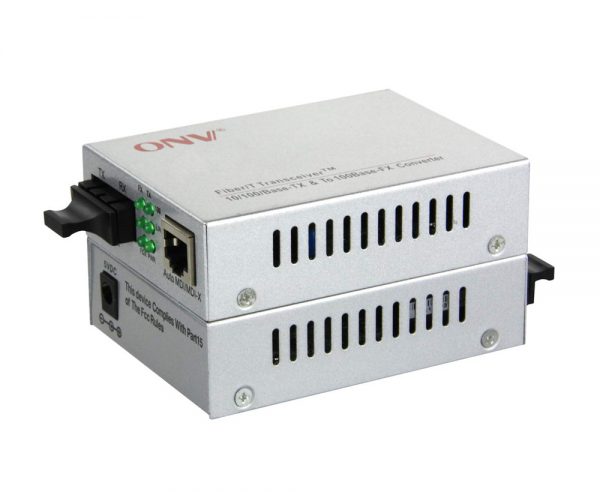

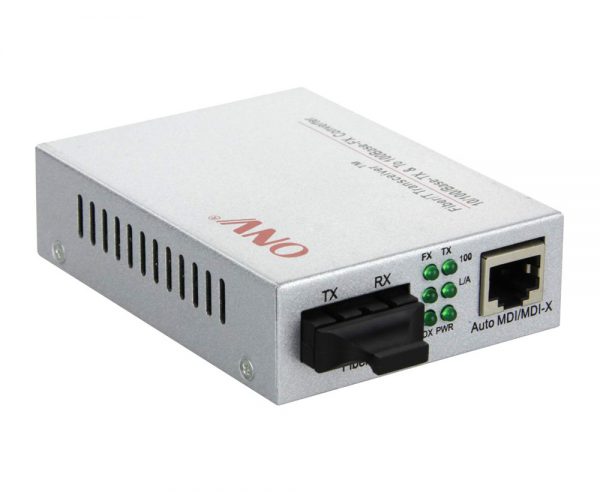

The ONV-POE31001PF series is an unmanaged PoE media converter. It has 1*10/100M RJ45 port and 1*155M uplink SC slot port. Ethernet port support IEEE 802.3af/at PoE standard, Single port PoE power up to 30W, the maximum PoE output power is 36W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. it can automatically detect and identify the the electrical equipment that meets the standard and supply power to it through the network cable, devices including wireless AP, IP camera, IP telephone and other PoE terminal equipment etc. In addition, it is suitable for networking system of hotel, campus, dormitory and small&medium enterprise etc.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100M fast Ethernet access, SC port uplink

◇ 1*10/100Base-TX RJ45 port and uplink SC port for easy long distance transmission, which facilitates flexible networking and meets network requirements for various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Smart PoE power supply

◇ 1*10/100Base-TX RJ45 port can support POE power supply to meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

Stable and reliable

◇ CCC,CE, FCC, RoHS.

◇ Low power consumption, galvanized steel casing. No fan.

◇ Plug and play, no configuration, simple and convenient.

◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link ,PoE.

DIMENSION

 ORDERING INFORMATION

 PACKING LIST
