250m transmission 10/100M 5-port PoE switch

OVERVIEW

The ONV-POE31004PL is a 10/100M unmanaged PoE switch independently developed by ONV. It has 4*10/100M PoE ports and 1*10/100M uplink RJ45 port . Port 1-4 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 65W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100Mbps fast Ethernet access , Uplink SC port

◇ 4*10/100Base-TX RJ45 ports and uplink SC port for easy long distance transmission, which facilitates flexible networking and meets network requirements for various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Smart PoE power supply

◇ 4*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

Stable and reliable, Easy to operate

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ Low power consumption, galvanized steel casing, No fan.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.

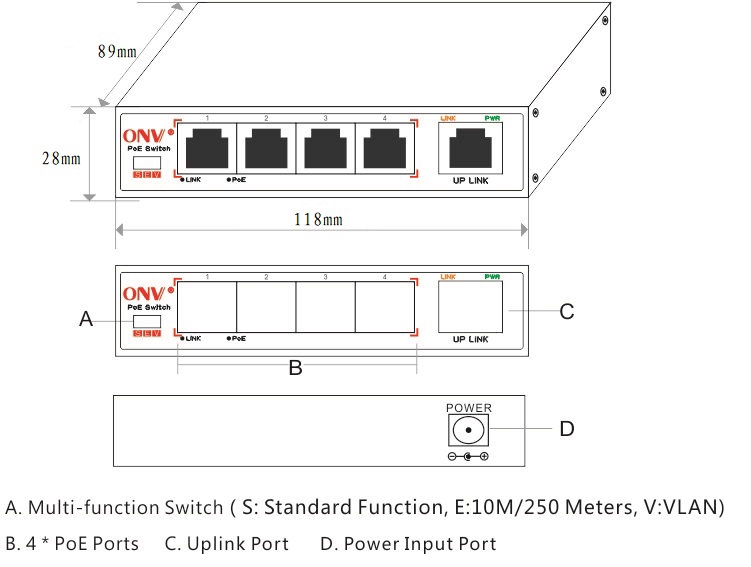

DIMENSION

ORDERING INFORMATION

 PACKING LIST
