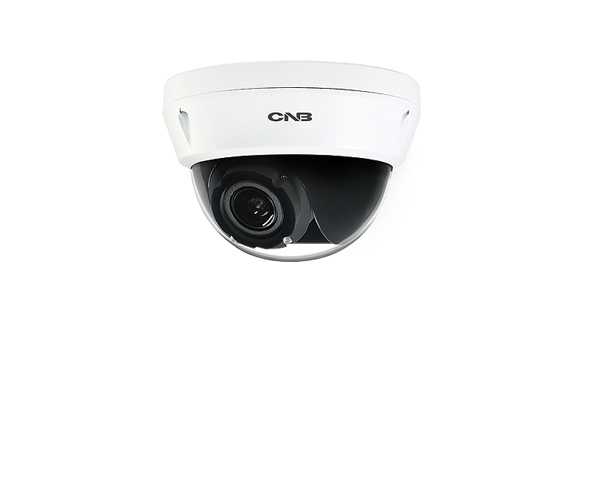

Camera IP CNB NV55-1PR

Model

CNB NV22-1MH

[Camera]

Image Sensor

Progressive scan 1/1.8 inch CMOS 5M pixels

Full resolution

2,592 x 1,944 pixels (5M)

Sync. System

 Internal

Min. illumination

0.05Lux (Color), 0 Lux (IR LED On)

S/N Ratio

50dB or more

White Balance

AWB

DSS

Supported

WDR

Supported

Lens

3.6 ~ 10mm Motorized Lens

Day & Night

Supported (TDN, IR LED)

Super IR LED

2EA

[Video]

Compression method

Multi Codec (H.265 / H.264 / MJPEG)

Resolution

2,592 x 1,944@30fps

Multi-Profile Streaming

* 4 Simultaneous video profiles

* Select the codec type, resolution and frame rates for each profile

Intelligent Bit-rate Control

Hybrid Bit rate control (VBR+CBR)

PTZ

Digital PTZ & Video crop

Image Setting

Text overlay, Privacy mask, De-interlace filter

Motion detection

3 regions

[Audio]

Multi-Profile Streaming

* 5 Simultaneous video profiles

* Select the codec type, resolution and frame rates for each profile

Intelligent Bit-rate Control

Hybrid Bit rate control (VBR+CBR)

PTZ

Digital PTZ & Video crop

Image Setting

Text overlay, Privacy mask, De-interlace filter

Motion detection

3 regions

[Audio]

Mono Upstream

32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in

Mono Downstream

64Kbps 16bit μ-law PCM ~ Line-out

[Network]

Network Protocol

IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS

Dynamic IP

Supported

Security

– User ID & Password protection, IP address filtering,

– Digest Authentication, User Access Log

Streaming method

-RTSP streaming with proprietary format for control informations

– Standard RTSP streaming

– HTTP streaming

– Onvif Profile-S

[External Terminals]

LAN

10/100BaseTLAN (auto MDIX)

Alarm input / output

Alarm I/O (1 Sensor input & 1 Relay output)

Factory Reset

Supported

Other

MIC, Line in / Line out / DC 12V in

[System Integration]

Intelligent Video

Motion Detection

Alarm Triggers

Motion Detection + Sensor Input + Audio Detection

Alarm Events

Video file upload(FTP), Still image(Email), PTZ preset, Relay output

Alarm Buffer (Audio/Video)

configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec)

[Client Software]

NVR2

64ch(free of charge)

Smart App

Android, iOS (free of charge)

[Operating Environment, Power, Dimensions]

Operating Temperature

-10℃ ~ 50℃

Operating Humidity

8 ~ 80% RH

Power

DC 12V, 0.6A, PoE (IEEE802.3af)

Dimensions

Ø100mm x 92mm

Weight

1kg

Casing

AL, PC, IP66

Approvals

FCC, CE, KC

Package information

IP camera, CD (User’s guide, Software…)

[Optional Items]

Local storage

Micro SD card

Adapter

DC 12V, 1.5A
