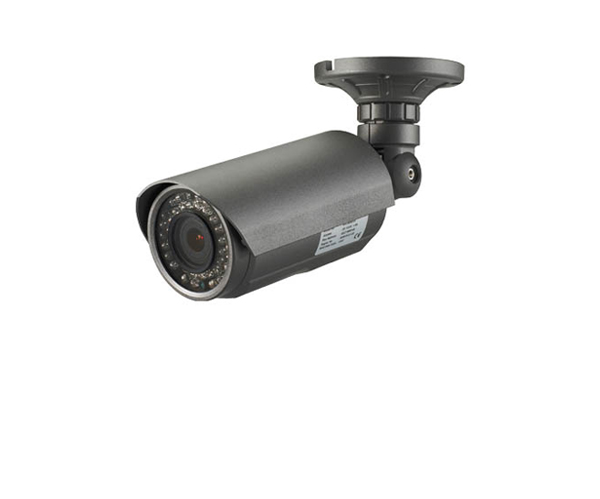

Camera IP CNB MXC6050VR

Model

MXC6050VR

[Camera]

Image Sensor

1/2.9” Progressive CMOS Sensor

Scaning System

16:9 Progressive

Sync. System

Internal

Effective Pixels Number

1920(H) x 1080(V) 2.0 Mega

Horizontal Resolution

1100 TV Lines

Video Output Level

Select NTSC/PAL 1.0Vp-p (BNC 75Ω, composite)

Lens

Built-in DC Iris Vari-focal Mega Pixel Lens (f=3.5~16mm)

Day & Night System

ICR (Cds Type)

IR LED and Sensor

36EA (850nm, 45˚) & Sensor 1EA

Min. Illumination

0.12Lux (Color), 0.00 Lux (IR LED On)

White Balance

Auto

[Video]

Compression

H.264 / MJPEG

Resolution

Full HD, 720P, 4CIF, VGA, CIF, Crop

Multi-Profile Streaming

* 5 Simultaneous video profiles

* Select the codec type, resolution and frame rates for each profile

Intelligent Bit-rate Control

Intelligent Bit-rate Control

Image setting

Text overlay, Privacy mask, De-interlace filter

Motion detection

3 regions

[Audio]

Mono Upstream

32Kbps G.726 ADPCM (Line-in / Mic-in)

Mono Downstream

128Kbps 16bit Linear PCM, Line-out(1.0Vp-p)

[Network]

Protocol

IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnPP, NTP, DNS, DynDNS, Socks

Supported DDNS

Supported (CNB DDNS)

Security

– User ID & Password protection, IP address filtering,

– HTTPS encryption, Digest Authentication, User Access Log

LAN

10/100 Base-T LAN (auto MDIX)

Alarm

Alarm I/O (1 Sensor input & 1 Relay output)

Other

Mic, Line in / Line Out / 12VDC

[ALARM / EVENT]

Intelligent Video

Motion Detection

Alarm Triggers

Sensor Input

Alarm Events

Video file upload(FTP), Still image(Email), PTZ preset, Relay output

Video Buffer

Pre & Post alarm

[Applications]

Browser

Internet Explorer 8 or Higher

Monitoring Application

XNET NVR 2, and Utility (IP-Installer)

[Maintenance]

System Upgrade

Firmware upgrade over HTTP

[Mechanical]

Standard PoE

Standard IEEE 802.3af supported

Power

DC 12V Max. 1A

Dimensions

100(W) x 125(H) x 267.75(D)mm

Operating Temp. / Humidity

-10℃ ~ 50℃

Weight

Approx. 1.2Kg
