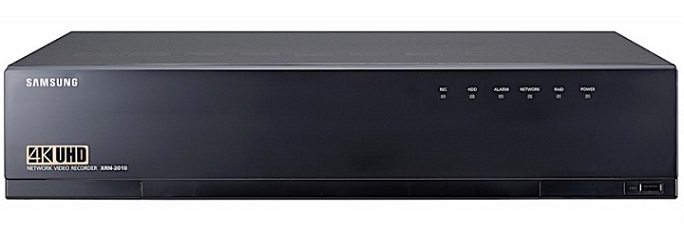

Đầu ghi hình camera IP 32 kênh Hanwha Techwin WISENET XRN-2010/KAP

-Độ phân giải: 12 Megapixel.

Danh mục: Đầu ghi hình WISENET

Mô tả
Sản phẩm liên quan

Đầu ghi hình camera IP 32 kênh Hanwha Techwin WISENET XRN-2010/KAP

-Đầu ghi hình camera IP 32 kênh.

-Độ phân giải: 12 Megapixel.

-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

-Ghi hình camera qua mạng lên đến tối đa 256Mbps.

-Support 4K video out on HDMI monitor.

-Support Dual monitor video out.

-Hỗ trợ WiseStream.

-Hỗ trợ 8 ổ cứng SATA dung lượng 48TB.

-Hỗ trợ 1 ổ cứng e-SATA.

-Đa ngôn ngữ.

-Hỗ trợ giao thức: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)

-Cổng kết nối: RJ45, Gigabit ethernet x 2.

-Hỗ trợ hệ điều hành: Windows 7, 8, 10, Mac OS X (10.8 or above).

-Nguồn điện cung cấp: 100 – 240VAC.

-Công suất tiêu thụ: Tối đa 99W.

-Kích thước: 440 x 88 x 384.8mm.

-Trọng lượng: 4.86kg.

Đặc tính kỹ thuật

Inputs	Up to 32 CH
Resolution	CIF ~ 12MP
Protocols	Samsung, ONVIF
Local Display	1x HDMI, 1x VGA dual monitor
Multi Screen Display	[Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence
Performance	[Local monitor] 12MP (30fps), 8.3MP (120fps), 1080p (480fps), 720P (960fps), D1 (1560fps)
Embedded	Linux
Compression	H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Recording Bandwidth	Max. 256Mbps
Resolution	CIF ~ 12MP
Mode	Normal, Schedule (Continuous / Event), Event (Pre/ Post)
Event Trigger	Alarm input, Video loss, Camera event (Sensor, MD, Video analytics)
Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Playback Bandwidth	32Mbps (16 CH simultaneously
Performance	Max. 4 users (Local 1, Remote 3)
Mode	Date & Time (Calendar) / Event log list / Text search / ARB search /
Mode	Smart search (Virtual line w/direction, Enter / Exit)
Simultaneous Playback	Max. 16CH (Local monitor, CMS)
Resolution	CIF ~ 12MP
Fish-eye Dewarping	WEB / CMS
Playback Control	Fast/Slow Forward/Backward, Move one step up/down
External	iSCSI storage (Max. 384TB), Promise VessRaid R2600
Internal HDD	0TB ~ 6TB / 8 (Max. 48TB)
File Backup (Via Web)	BU/Exe (GUI), JPG/AVI (Network)
RAID	RAID 5 (Array size: 4 HDD x 2 array)
Function	Multi channel (Up to 16 CH) play, Date-time/title display
Input / Output	8 / 4 (NO/NC selectable)
Input	32CH (Network)
Compression	G.711, G.726, AAC (16/48KHz)
Audio Communication	2-way
Interface	RJ-45, Gigabit ethernet x 2
Protocol Support	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS	Hanwha security DDNS
Hanwha security DDNS	512Mbps (iSCSI off ), 256Mbps (iSCSI on)
Max. Remote Users	Search 3 / Live unicast 10 / Live multicast 20
IP	IPv4 / IPv6
Security	IP address filtering, User access log, 802.1x authentication, Encryption
Language	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian,Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
OS	Window 7, 8, 10, Mac OS X (10.8 or above)
Web Browser	MS IE, Google Chrome, Mac Safari, Firefox
Viewer	Type: SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
Software	CMS Support: SDK / CGI (SUNAPI)
Camera Setup	Register: Auto, Manual
	Setup Items: IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness/
	Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),
	Fisheye dewarping mode, Hallway view setup, Camera webpage
PTZ	Control / Preset: Via GUI, Webviewer, SPC-2000 / 255 presets
Smart Phone	OS: Android, iOS
	Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
	Control: Live (16CH): Multi-profile support, Playback (1CH).
	Max. Remote Users: Search 3 / Live unicast 10
Redundancy	Failover / ARB: N + 1/ Yes
System Control	Mouse, Web, SPC-2000 (Controller)
Indicator	LED (Status indicator): 6ea
Indicator	HDD action 1, Alarm 1, Power 1, Record 1, Backup 1, Network1
HDMI	Main: 1ea (Both support Live / PB / Setup)
HDMI	Support up to 4K (3840 x 2160, Single monitor mode)
VGA	Sub: 1ea (Support live screen up to 16 div. mode)
	HDMI Main: 1ea (Both support Live / PB / Setup)
	Support up to 4K (3840 x 2160, Single monitor mode)
Audio	Out 1ea (RCA, Line)
Ethernet	RJ-45 2ea (LAN/WAN, 1Gbps)
Alarm	In 8ea (Terminal block), Alarm reset 1ea. Out 4ea (Terminal block) – Relay out1(NO/NC/COM) – Relay out 2 ~ 4 (NO/COM)
USB	2ea (Front 1, Rear 1)
Storage	1 e-SATA
Serial / Reset	RS-232C / Switch 1ea
Power Cord	1ea AC Inlet
Log	Log List: Max. 20,000 (System log, Event log each)
Electrical	Input Voltage / Current: 100 ~ 240V AC ±10%, 50/60Hz / 4 ~ 1.5A
Color / Material	Black / Metal
Dimensions	440.0 x 88.0 x 384.8mm
Weight	4.86kg (Without HDD)

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

-Sản xuất tại Korea.

-Bảo hành: 24 tháng.
