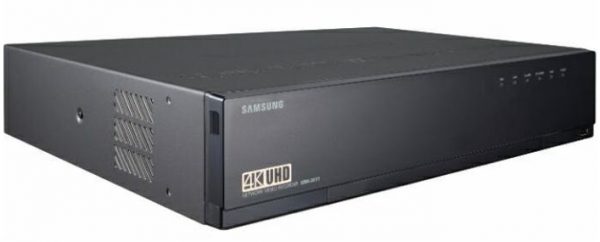

Đầu ghi hình camera IP 64 kênh Hanwha Techwin WISENET XRN-3010/KAP

-Ghi hình camera qua mạng lên đến tối đa 300Mbps.

Danh mục: Đầu ghi hình WISENET

Mô tả
Sản phẩm liên quan

Đầu ghi hình camera IP 64 kênh Hanwha Techwin WISENET XRN-3010/KAP

-Đầu ghi hình camera IP 64 kênh.

-Ghi hình camera qua mạng lên đến tối đa 300Mbps.

-Hỗ trợ 4K video out on HDMI monitor.

-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

-Chuẩn nén âm thanh: G.711, G.726, AAC (16/48KHz).

-Độ phân giải: CIF ~ 12Megapixel.

-Hỗ trợ âm thanh: 2 chiều.

-Chế độ ghi hình: Date & Time (Calendar) / Event log list / Text search / ARB search/ Smart search (Virtual line w/direction, Enter/ Exit).

-Chế độ xem lại đồng bộ: Tối đa 16 kênh.

-Hỗ trợ 8 ổ cứng SATA dung lượng lưu trữ 64TB.

-Hỗ trợ 1 ổ cứng eSATA.

-Cổng kết nối: RJ-45, Gigabit Ethernet x 2.

-8 kênh báo động ngõ vào, 4 kênh báo động ngõ ra.

-Hỗ trợ 2 cổng USB (1 trước, 1 sau).

-Hỗ trợ hệ điều hành: Windows 7, 8, 10, Mac OS X (10.8 or above).

-Hỗ trợ xem qua điện thoại di động SmartPhone: iPhone, Android.

-Đa ngôn ngữ.

-Nguồn điện cung cấp: 100 ~ 240VAC.

-Công suất tiêu thụ: 99W.

-Kích thước: 440.0 x 88.0 x 384.8mm.

-Trọng lượng: 4.86kg.

Đặc tính kỹ thuật

Inputs	Up to 64CH
Resolution	CIF ~ 12MP
Protocols	Samsung, ONVIF
Local Display	1x HDMI, 1x VGA dual monitor
Multi Screen Display	[Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence
Performance	[Local monitor] 12MP (30fps), 8.3MP (120fps), 1080p (480fps), 720P (960fps), D1 (1560fps)
Embedded	Linux
Compression	H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Recording Bandwidth	Max. 300Mbps
Resolution	CIF ~ 12MP
Mode	Normal, Schedule (Continuous / Event), Event (Pre / Post)
Event Trigger	Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics, Defocus)
Playback Bandwidth	32Mbps (16CH simultaneously
Performance	Max. 4 users (Local 1, Remote 3)
Mode	Date & Time (Calendar) / Event log list / Text search / ARB search /
Mode	Smart search (Virtual line w/direction, Enter / Exit)
Simultaneous Playback	Max. 16CH (Local monitor, CMS)
Resolution	CIF ~ 12MP
Fish-eye Dewarping	WEB / CMS
Playback Control	Fast/Slow Forward/Backward, Move one step up/down
Default Built-In	0TB ~ 8TB
Internal HDD	8 (Max. 64TB)
File Backup (Via Web)	BU/Exe (GUI), JPG/AVI (Network)
Function	Multi channel (Up to 16CH) play, Date-time/title display
Input / Output	8 / 4 (NO/NC selectable)
Input	64CH (Network)
Compression	G.711, G.726, AAC (16/48KHz)
Audio Communication	2-way
Interface	RJ-45, Gigabit ethernet x 2
Protocol Support	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS	Hanwha security DDNS
Transmission Bandwidth	512Mbps
Max. Remote Users	Search 3 / Live unicast 10 / Live multicast 20
IP	IPv4 / IPv6
Security	IP address filtering, User access log, 802.1x authentication, Encryption
Language	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian,
Language	Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
OS	Window 7, 8, 10, Mac OS X (10.8 or above)
Web Browser	MS IE, Google Chrome, Mac Safari, Firefox
Viewer	Type: SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
Software	CMS Support: SDK / CGI (SUNAPI)
Camera Setup	Register: Auto, Manual
	Setup Items: IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness/
	Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),
	Fisheye dewarping mode, Hallway view setup, Camera webpage
PTZ	Control / Preset: Via GUI, Webviewer, SPC-2000 / 255 presets
Smart Phone	OS: Android, iOS
	Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
	Max. Remote Users: Search 3 / Live unicast 10 / Live multicast 20
Redundancy	Failover / ARB: N + 1 (Include fail-back) / Yes
System Control	Mouse, Web, SPC-2000 (Controller)
Indicator	LED (Status indicator): 6ea
Indicator	HDD action 1, Alarm 1, Power 1, Record 1, Backup 1, Network1
VGA	Sub: 1ea (Support live screen up to 16 div. mode)
	HDMI Main: 1ea (Both support Live / PB / Setup)
	Support up to 4K (3840 x 2160, Single monitor mode)
Audio	Out 1ea (RCA, Line)
Ethernet	RJ-45 2ea (LAN/WAN, 1Gbps)
Alarm	In 8ea (Terminal block), Alarm reset 1ea. Out 4ea (Terminal block) – Relay out1(NO/NC/COM) – Relay out 2 ~ 4 (NO/COM)
USB	2ea (Front 1, Rear 1)
Storage	1 e-SATA
Serial / Reset	RS-232C / Switch 1ea
Power Cord	1ea AC Inlet
Log	Log List: Max. 20,000 (System log, Event log each)
Electrical	Input Voltage / Current: 100 ~ 240VAC ±10%, 50/60Hz / 4 ~ 1.5A
Electrical	Power Consumption: Max. 99W (338BTU, 8TB HDD x 8ea)
Color / Material	Black / Metal
Dimensions	440.0 x 88.0 x 384.8mm
Weight	4.86kg

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

-Sản xuất tại Korea.

-Bảo hành: 24 tháng.
