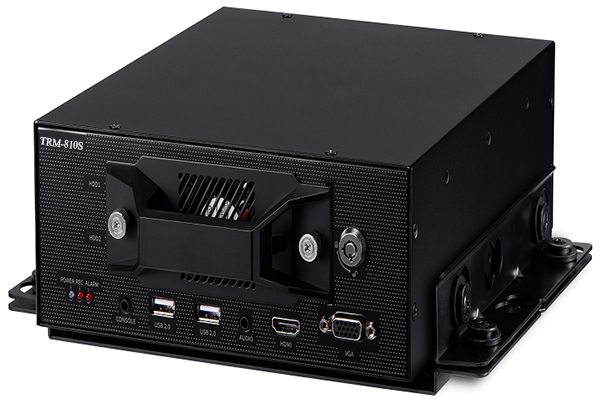

Đầu ghi hình camera IP 8 kênh Hanwha Techwin WISENET TRM-810S

– Chuẩn nén hình ảnh: H.265, H.264.

Mã: TRM-810S Danh mục: Đầu ghi hình WISENET

Mô tả
Sản phẩm liên quan

Đầu ghi hình camera IP 8 kênh Hanwha Techwin WISENET TRM-810S

– Đầu ghi hình camera IP 8 kênh.

– Chuẩn nén hình ảnh: H.265, H.264.

– Độ phân giải: 8.0 Megapixel.

– Ghi hình tối đa: 80Mbps.

– Hỗ trợ 2 ổ cứng SATA (Front-swap) dung lượng lưu trữ tối đa 2TB (HDD, Non-RAID mode).

– Hỗ trợ 2 ổ cứng SATA (Front-swap) dung lượng lưu trữ tối đa 4TB (SSD, Non-RAID mode).

– Hỗ trợ RAID.

– Ghi hình camera theo chuẩn ONVIF.

– Hỗ trợ WiseStream.

Đặc tính kỹ thuật

Model	TRM-810S
Network Camera
Inputs	Max. 8ch (4 PoE, RJ-45)
Resolution	CIF ~ 8MP
Protocols	Wisenet (SUNAPI), ONVIF
Live
Local Display	HDMI / VGA
Multi-Channel Display	[Local monitor] 1 / 2H / 2V / 3V / 4 / 6 / 8 / 9 / Auto sequence, [Web] 1 / 4 / 9 / Auto sequence
Performance	[Local Monitor] 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps)
Embedded	Linux
Record
Compression	H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Recording Bandwidth	Max. 80Mbps
Resolution	CIF ~ 8MP
Type	Manual, Schedule (Continuous / Event), Event (Pre / Post), Emergency
Retention	Retention per channel (1~400 days)
Event Trigger	Alarm Input (6), Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus) G-Sensor (3 Axis)
Event Action	e-Mail, Alarm Out, Buzzer, Monitor Out
Search & Play
Playback Bandwidth	32Mbps (8ch simultaneously)
User	Max. 4 Users (Local 1, Remote 3)
Mode	Date & Time(Calendar) / Event Log list / Smart Search
Simultaneous Playback	Max. 8ch (Local Monitor, CMS)
Resolution	CIF ~ 8MP
Fisheye Dewarping	Web / CMS
Playback Control	Fast / Slow Forward / Backward, Move one step Up / Down
Storage
Built-In	0TB ~ 4TB
Internal HDD	2 SATA (Front-Swap) – Max. 2TB (HDD, Non-RAID Mode) – Max. 4TB (SSD, Non-RAID Mode)
RAID	RAID-1
Backup
File Backup	Exe (GUI), JPG/AVI (excluding GPS information)(Network)
Function	Multic hannel (Up to 8ch) play, Date-time / Title / GPS display
Type	Auto (Wi-Fi), Manual (HDD/SSD
Wifi Backup Performance	Max. 80Mbps
Sensor
I/O	6/4
Audio
Input	8ch (Network)
Compression	G.711, G.726, AAC (16/48KHz)
Audio Communication	2-Way
Network
Interface	RJ-45 (Gigabit ethernet x1)
Protocol	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS	Hanwha DDNS
Transmission Bandwidth (Wired (LAN))	Max. 80Mbps
Max Remote Users	Search (3), Live Unicast (10), Multicast (20)
IP Version	IPv4/v6
Security	IP address filtering, User access log, 802.1x, Encryption
Wireless	WiFi: Internal (802.11 ac(5G)), 1T1R
Wireless	3G / LTE: Support external 3G/LTE router (Ethernet)
Language	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
OS	Windows 7, 8, 10, Mac OS X (10.8 or above)
Web Browser	MS IE, Google Chrome, Mac Safar
Camera Setup
Register	Auto, Manual
Setup Items	IP address, Profile add/edit, Bitrate, Compression, Camera MD setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, Iris, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye dewarping mode, Hallway view Setup, Camera webpage, Wisestream On/Of
Camera Control Max. Frame rate
PoE/PoE+ Power Control	Monitor PoE/PoE+ power consumption, On/Off control for each PoE/PoE+ camera, Remote reset for each PoE/PoE+ camera
Time Sync.	NVR time protocol for PoE/PoE+ camera (Time sync based on NVR time) GPS time sync
PTZ
Control	Via GUI, Webviewer
Preset	300 Presets
System Control	Mouse, Web
Front
Indicator	LED (Status indicator) : 3ea – Power 1, Alarm 1, Record 1
Audio	Out (1ea, Line)
HDMI / VGA	2ea (Support live monitor screen up to 9div. mode, Clone)
HDMI / VGA	HDMI: Up to 4K (3840 x 2160), VGA: Max. 1080p
USB	3ea (Front x2, Rear x1)
HDD Key Lock	1ea (Power switch)
Connections
Ethernet	Viewer: 1ea (100Mbps, RJ-45) PoE Camera Input: 8ea (100Mbps, RJ-45)
Control I/O	RJ-45 1ea (External Control Box)
	(1) Status LED
	(2) G-Sensor
	(3 Axis)
	(3) Emergency Recording button
	(4) Power Switch
	(5) Audio Out
Alarm	(1) In (6ea)
Alarm	(2) Out (4ea)
Serial	1 RS-232C (Reserved)
WiFi	1ea (RP-SMA, F)
GNSS	1ea (4pin Micro-Fit), Support GPS/Glonass
Reset	Switch (1ea, PW clear)
Power Cord	6pin connector 1ea
Power Management
Shutdown Delay	Max. 72Hrs (User selectable)shutdown / Support CGI shutdown
Startup Delay	0 (Default) sec ~ 10 Min (User selectable)
Log List	Max. 20,000 (System log, Event log each)
Environmental
Operating Temperature / Humidity	-25 to +55 °C(-13 to +131 °F): HDD installed
Humidity	20% ~ 85% RH
Power	9 ~ 36V DC Battery power detection & Low power limit setup
Power Consumption	Max. 122W
PoE Budget	Max. 64W
Mechanical
Color / Material	Black / Steel
Dimension	210mm x 80mm x 250mm
Weight	Approx. 3.4Kg

– Hãng sản xuất: Hanwha Techwin Hàn Quốc.

– Bảo hành: 24 tháng.
