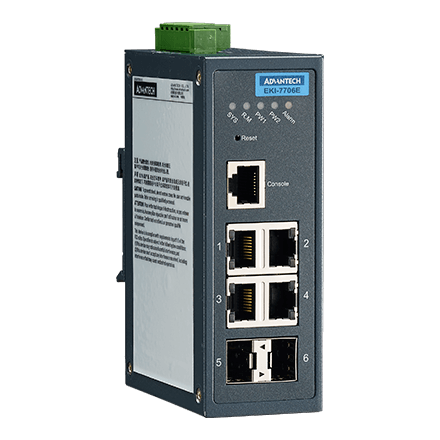

Switch Advantech EKI-7706E-2FI
4FE+2G SFP Managed Ethernet Switch, -40~75℃
- 4 Fast Ethernet ports + 2 SFP ports
- SFP socket for easy and flexible fiber expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time
- IXM function enables fast deployment
- Security: 802.1x (Port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- -40 ~ 85 °C wide-range operating temperature
- Dual 12~48 VDC power input and 1 relay output
EKI-7706E-2F/2FI supports 4 Fast Ethernet ports and 2 SFP ports. It provides abundant ports to connect many devices and it is embedded with Advantech’s IXM function, which benefits users with fast deployment and can dramatically save engineers time and costs. The EKI-7706E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7706E series is equipped with X-Ring Pro which can achieve ultra-high-speed recovery times of less than 20 ms to ensure network stability.
- Part Number
- Details
-
EKI-7706E-2FI-AE
- Total Port Number
- Description
- 6
- 4 x 10/100BaseT(X)
- Ethernet Standard
- Vibration
- Freefall
- Shock
- EMS
- EMI
- EMC
- Safety
- IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
- IEC 60068-2-6
- IEC 60068-2-32
- IEC 60068-2-27
- –
- CE, FCC Class A
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- UL 61010-2-201
- Temperature (Max. Operating)
- Temperature (Min. Operating)
- Relative Humidity
- Temperature (Operating Range)
- Humidity (Operating Range)
- Temperature (Storage Range)
- 75°C (167°F)
- -40°C (-40°F)
- 10 ~ 95%
- -40 ~ 75°C (-40 ~ 167°F)
- –
- -40 ~ 85°C (-40 ~ 185°F)
- RJ45/SFP Combo Port Speed
- RJ45/SFP Combo Port Number
- Fiber Port Supports VDSL
- Fiber Port Optical Mode
- Fiber Transmission Speed
- Fiber Port Number
- RJ45 Port Number
- Fiber Transmission Distance
- Fiber Port Connector Type
- Fiber Port Interface
- RJ45 Transmission Distance
- Ethernet Standard
- RJ45 Port Connector Type
- RJ45 Transmission Speed
- –
- –
- NO
- –
- 10/100/1000Mbps
- 2
- 4
- Up to 110km
- SFP
- SFP
- 100 m
- –
- RJ45
- 10/100Mbps
- Mounting (Panel)
- Enclosure (Plastic)
- Mounting (Pole Mount)
- Mounting (Stack)
- Mounting (Wall)
- Mounting (Rack Mount)
- Mounting (DIN-rail)
- Weight
- IP Rating
- Dimensions (W x H x D)
- Enclosure (Metal)
- –
- –
- –
- –
- Yes
- –
- Yes
- 0.45 Kg
- IP30
- 43 x 120 x 84 mm
- Yes
- Method
- Time
- Telcordia, GB
- –
- Support PoE
- PoE Output
- PoE Budget
- PoE Port Number
- –
- –
- –
- –
- Redundant Dual Inputs
- Power Input (Battery)
- Power Input (PoE)
- Power Input (AC)
- Power Operating Current
- Power Connector Type
- Power Input (DC)
- Power Consumption
- –
- –
- –
- 12 ~ 48 VDC
- 0.11A @ 48Vdc
- 6-pin removable screw terminal ((power & relay)
- 12 ~ 48 VDC
- 5.28W
- Reverse Polarity
- Overload Current
- Present
- –
- Jumbo Frame
- Switch Fabric Speed
- Packet Buffer Size
- MAC Table Size
- –
- 4.8Gbit
- 4.1MB
- 8K
- Warranty Period
- 5 years
