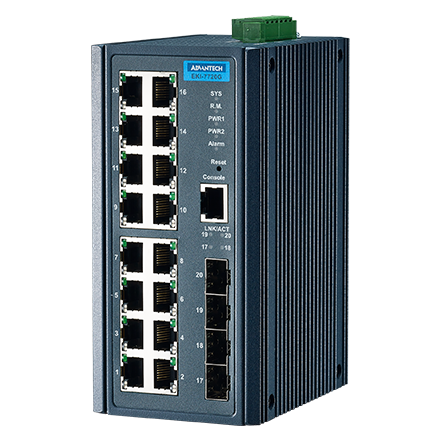

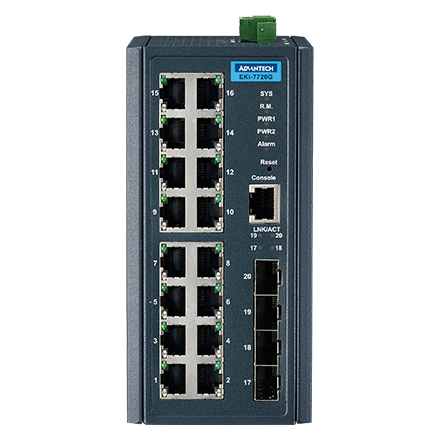

Switch Advantech EKI-7720G-4F
16GE+4G SFP Managed Ethernet Switch
- 16 Gigabit Ethernet ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- Dual 12~48 VDC power input and 1 relay output
EKI-7720G-4F/4FI supports 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advan-tech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7720G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7720G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7720G-4FI).
- Part Number
- Details
-
EKI-7720G-4F-AE
- Total Port Number
- Description
- 20
- 16 x 10/100/1000Base-T(X)
- Ethernet Standard
- Vibration
- Freefall
- Shock
- EMS
- EMI
- EMC
- Safety
- IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
- IEC 60068-2-6
- IEC 60068-2-32
- IEC 60068-2-27
- –
- CE, FCC Class A
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- UL 61010
- Temperature (Max. Operating)
- Temperature (Min. Operating)
- Relative Humidity
- Temperature (Operating Range)
- Humidity (Operating Range)
- Temperature (Storage Range)
- 60°C (140°F)
- -10°C (14°F)
- 10 ~ 95%
- -10 ~ 60°C (14 ~ 140°F)
- –
- – 40 ~ 85°C ( -40 ~ 185°F)
- RJ45/SFP Combo Port Speed
- RJ45/SFP Combo Port Number
- Fiber Port Supports VDSL
- Fiber Port Optical Mode
- Fiber Transmission Speed
- Fiber Port Number
- RJ45 Port Number
- Fiber Transmission Distance
- Fiber Port Connector Type
- Fiber Port Interface
- RJ45 Transmission Distance
- Ethernet Standard
- RJ45 Port Connector Type
- RJ45 Transmission Speed
- –
- –
- NO
- –
- –
- 4
- –
- Up to 110km
- SFP
- SFP
- 100 m
- –
- 16 x RJ-45 + 4 x SFP ports
- 10/100/1000Mbps
- Mounting (Panel)
- Enclosure (Plastic)
- Mounting (Pole Mount)
- Mounting (Stack)
- Mounting (Wall)
- Mounting (Rack Mount)
- Mounting (DIN-rail)
- Weight
- IP Rating
- Dimensions (W x H x D)
- Enclosure (Metal)
- –
- –
- –
- –
- Yes
- –
- Yes
- 1.1kg
- IP30
- 74 x 152 x 105 mm
- Yes
- Method
- Time
- Telcordia(Relax), GB
- –
- Support PoE
- PoE Output
- PoE Budget
- PoE Port Number
- –
- –
- –
- –
- Redundant Dual Inputs
- Power Input (Battery)
- Power Input (PoE)
- Power Input (AC)
- Power Operating Current
- Power Connector Type
- Power Input (DC)
- Power Consumption
- –
- –
- –
- –
- 0.25A @ 48Vdc (system)
- 6-pin removable screw terminal ((power & relay)
- 12 ~ 48 VDC
- 12.1W (system)
- Reverse Polarity
- Overload Current
- Present
- –
- Jumbo Frame
- Switch Fabric Speed
- Packet Buffer Size
- MAC Table Size
- 9,216 bytes
- 40Gbps
- 4.1M bit
- 8K
- Warranty Period
- 5 years
