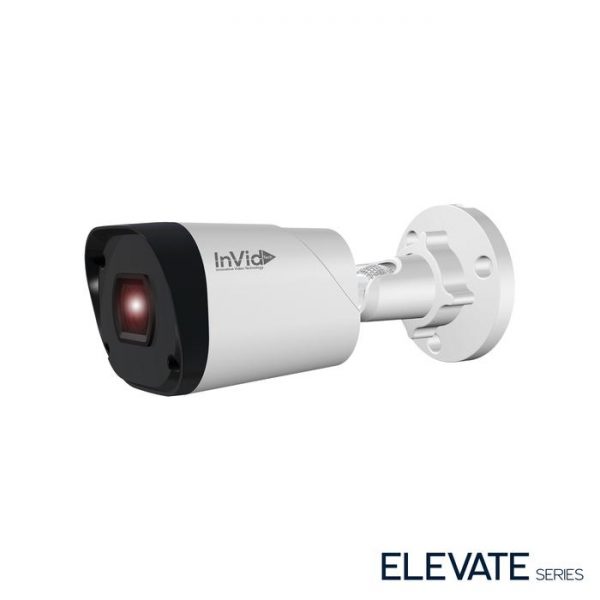

Camera Canada Invidtech ELEVI-C5BXIR: 5-2 Megapixel Bullet, Fixed Lens

5-2 Megapixel Field Selectable TVI/AHD/CVI/CVBS, Outdoor Bullet, 65’ IR Range, D-WDR, up to -40, 12VDC

5-2 Megapixel Field Selectable TVI/AHD/CVI/CVBS, Outdoor Bullet, 65’ IR Range, D-WDR, up to -40, 12VDC

**Scale down to other resolutions via camera dip switches & OSD

Model	ELEVI-C5BXIR
Image Sensor	1/2.5″ CMOS Sensor
Signal System	NTSC/PAL
Effective Pixels	2592(H) x 1944(V)
Field of View	Horizontal: 102° Vertical:74°
Electronic Shutter	AUTO/ 1/50（1/60）-1/50,000sec
Min. IIIumination	0.01Lux
Video Output	TVI:5MP 20/12.5 FPS, 4MP 30/25/12.5 FPS, 2MP 30/25 FPS AHD:5MP 20/12.5 FPS, 4 MP 30/25 FPS, 2MP 30/25 FPS CVI:4MP 30/25 FPS, 2 MP 30/25 FPS CVBS
Video Output By Default	TVI: 5MP @ 20 FPS AHD:2MP @ 30 FPS CVI: 2MP @ 30 FPS CVBS
Dip Swith	Support
UTC Control	Support
Camera Features
Mirror Image	Yes
Auto Iris	No
Sharpness	Yes
Defogging	No
BLC	Yes
D-WDR	Yes
S/N Ratio	>41dB
Noise Reduction	2DNR
Day&Night	Color / B&W/ AUTO / EXT
White Balance	Manual/Auto
AGC	Auto
IR LED	18pcs SMD IR
IR Range	Up to 65 ft
Lens
Focal Length	2.8mm Fixed Lens
Lens Type	Fixed Iris
Mount Type	M12
General
IP Rating	IP66
Casing	Metal
Power Supply	DC12V(+/-10%)
Power Consumption	IR OFF:85mA / IR ON:320mA
Working Temperature / Humidity	-40°F-140°F(—40~+60℃)
Dimensions(W×D×H)	6.06″ x 2.66″ x 2.26″
Weight	.84 lbs (380g)
