Camera IP EYENOR ENC-HBU5Z-100R-46 | Made in UK

MODEL

Model No.

ENC-HBU5Z-100R-46

Type

2MP Starlight IP H.265 LPR/ANPR Bullet Camera

CAMERA

Image Sensor

1/2.8″, 2Megapixel, Progressive scan CMOS

Lens

2.8~12mm @F1.6

Angle of View (H)

97°(wide) ~ 35°(tele)

Zoom/Focus

4X Optical Zoom / Auto Focus

Shutter

Auto/Manual, 1/10~1/100,000 s

Min. Illumination

Colour: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR

IR Range

Smart-IR, Up to 100M IR range

Day/Night

IR-Cut filter with auto switch (ICR)

S/N

>52dB

WDR

120dB

VIDEO

Max. Resolution

1920×1080

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Max. 30 fps(1920*1080)

ROI

Supported

OSD

Up to 8 OSDs

CAPTURE

Resolution

1920×1080

Compression

JPEG

OSD

Time; Place; Camera ID; Plate Number; Security Code

SMART

Vehicle Detection

Video Detection; Inductive loop detection; I/O detection

License Plate Recognition (LPR)

Support

White List

Support

Barrier Control

1 Ch relay out to control the barrier

NETWORK/INTERFACE

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,SNMP,HTTP, HTTPS, SMTP, 802.1x

Compatible Integration

ONVIF,API

Alarm I/O

2/1

Serial Port

1 RS485

Network

10M/100M Base-TX Ethernet

GENERAL

Storage

Micro SD, Max 256 GB

Power Supply

12V DC ± 25%, 24V AC ± 25% or PoE (IEEE802.3 at)

Power consumption: Max. 15W

Operating Temperature

-40°C ~ +60°C, Humidity ≤ 95% RH (Non-condensing)

Ingress Protection

IP67

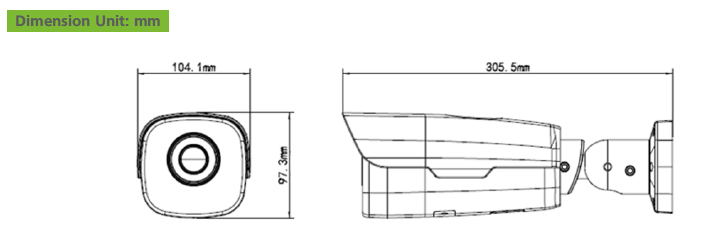

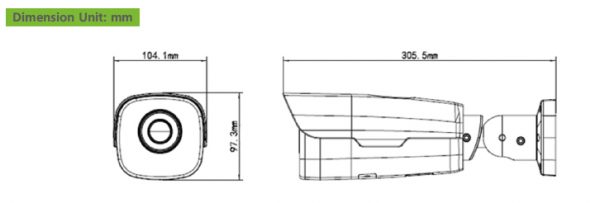

Dimensions

305.5×104.1×97.3mm

Weight

1.65Kg
