Camera IP EYENOR ENV-HCB7F-30R-20 | Made in UK
2MP IR IP H.265 Compact Bullet Camera
Overview
Day/night functionality, Smart IR, Up to 30M IR distance, Up to 120 dB Optical WDR (Wide Dynamic Range), IR anti-reflection window to increase the infrared transmittance, 2D/3D DNR (Digital Noise Reduction),H.265+, H.265, H.264, MJPEG, Embedded smart algorithm, Triple streams, Corridor mode, ONVIF (Profile S/G), IP67, SD Card
Specification
| Model |
Model No. |
ENV-HCB7F-30R-20 |
|
Type |
4MP IR IP H.265 Compact Bullet Camera |
|
|
Image Sensor |
1/3″, 4.0 Megapixel, Progressive scan, CMOS |
|
|
Lens |
4.0mm (Optional 6mm) | |
|
CAMERA |
AGC |
Auto/Manual |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
|
Shutter Speed |
Auto/Manual, 1/6~1/100000 s |
|
|
Angle of View(H) |
78.9° (49.9° for 6mm) |
|
|
Wide Dynamic Range |
120dB |
|
|
Digital Noise Reduction |
2D/3D DNR |
|
|
Min. Illumination |
Colour: 0.03 Lux @F2.0, BW: 0 Lux with IR On | |
|
S/N |
>52dB |
|
|
IR Range |
30M |
|
|
Defog |
Digital Defog |
|
|
VIDEO |
Max. Resolution |
2592×1520 |
|
Video Compression |
H.265+,H.265, H.264, MJPEG |
|
|
Frame Rate |
Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
|
|
Corridor mode |
Supported |
|
|
HLC |
Supported |
|
|
BLC |
Supported |
|
|
OSD |
Up to 8 OSDs |
|
|
Privacy Mask |
Up to 8 areas |
|
|
ROI |
Up to 8 areas |
|
|
Motion Detection |
Up to 4 areas |
|
|
Behavior Detection |
Intrusion, Cross line, Motion detection |
|
|
SMART |
Intelligent Identification |
Face detection, Defocus, Scene Change, Abandoned Object, Missing Object |
|
Statistical Analysis |
People counting |
|
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
|
|
NETWORK |
Protocols |
Ipv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,SMTP, 802.1x, SNMP,QoS |
|
Compatibility |
ONVIF (Profile S/G), API |
|
|
GENERAL |
Edge Storage |
Micro SD, up to 256GB |
|
Network Storage |
ANR |
|
|
Power |
12 V DC±25%,PoE (IEEE802.3 af) |
|
|
Power Consumption: Max 6.5W |
||
|
Ingress Protection |
IP67 |
|
|
Working Environment |
-35°C ~ +60°C, Humidity : ≤ 95% RH(Non-condensing) |
|
|

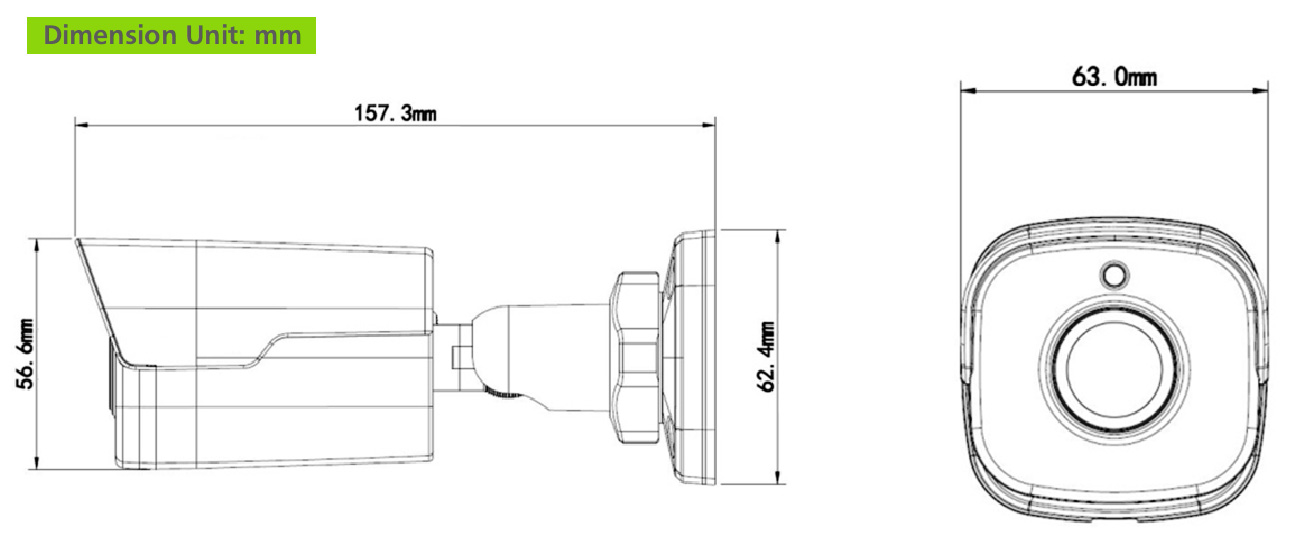

Dimensions |
157.3×62.4x63mm |
|
|
Weight |
0.45Kg |
|
|
Reset Button |
Supported |
Ordering Information
| Part Number | Description | Standard Quantity |
|
ENV-HCB7F-30R-20 |
4MP IR IP H.265 Compact Bullet camera with 3.6mm (Optional 6mm) Fixed Lens, POE, SD card Slot, WDR, Smart analytics and 30M IR support |
1 |
Downloads
| Datasheet | 270.49KB | DOWNLOAD |
