Camera IP EYENOR ENV-HBU5V-50R-20 | Made in UK

Model

Model No.

ENV-HBU5V-50R-20

ENV-HBU7V-50R-20

Type

2MP IR IP H.265 Bullet camera

4MP IR IP H.265 Bullet Camera

CAMERA

Image Sensor

1/2.8″, 2 Megapixel, Progressive scan CMOS

1/3″, 4.0 Megapixel, Progressive scan, CMOS

Lens

2.8~12mm @F1.6

2.8~12mm @F1.4

Angle of View(H)

94° ~28°

91° ~27°

Shutter

Auto/Manual, 1~1/100000s

Min. Illumination

Colour: 0.002Lux @ F1.6, 0 Lux with IR on

Colour: 0.005Lux @ F1.4, 0 Lux with IR on

AGC

Auto/Manual

IR Range

Up to 50M

Day/Night

IR-cut filter with auto switch (ICR): 50M IR Distance

S/N

>52dB

WDR

Optical WDR (up to 120 dB)

Zoom/Focus

Varifocal (Manual)

VIDEO & AUDIO

Max. Resolution

1920 × 1080

2592×1970

Video Compression

H.265+,H.265, H.264, MJPEG

Frame Rate

1080P (1920×1080): Max. 25 fps;
720P (1280×720): Max. 30 fps;
D1 (720×576): Max. 8 fps

4MP (2592×1520): Max.20 fps; 4MP (2560×1440): Max.25 fps,
3MP (2048×1520): Max.30 fps; 1080P (1920×1080): Max.30 fps

Video Streaming

Triple

Corridor Mode

Supported

ROI

Supported

HLC & BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Audio Compression

G.711U/G.711A

Two-way audio

Supported

NETWORK

Protocol

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,SMTP, 802.1x, SNMP,SSL,QoS

Compatibility

ONVIF(Profile S,G), API

SMART

Behavior Detection

Intrusion, Crossing line, Motion Detection,Abandoned Object, Missing Object

Exception Detection

Audio detection

Intelligent Identification

Face detection, Defocus, Scene Change

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

INTERFACE

Audio I/O

1/1

Alarm I/O

1/1

Network

1 RJ45 10M/100M Base-TX Ethernet

BNC Output

Supported

GENERAL

Power

12 V DC, or PoE (IEEE802.3 af)

Power Consumption: Max 9W

Edge Storage

Micro SD, up to 256 GB

Ingress Protection

IP67

Working Environment

-30°C ~ +60°C, Humidity ≤ 95% RH(non-condensing)

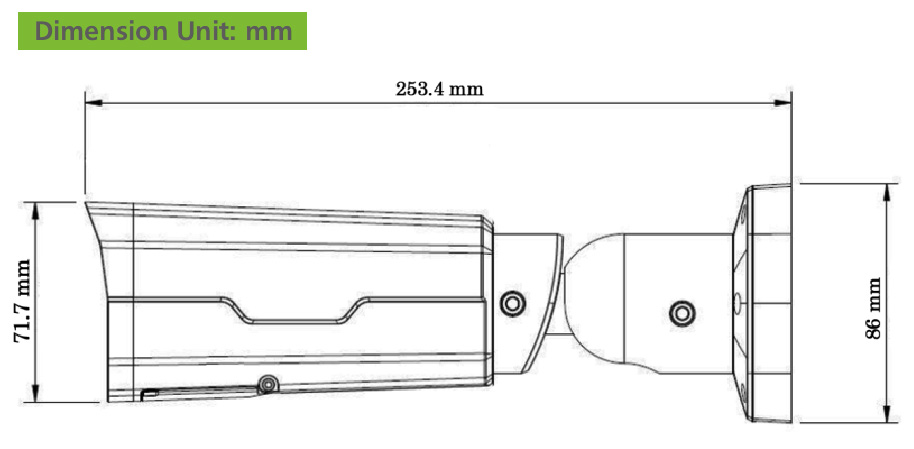

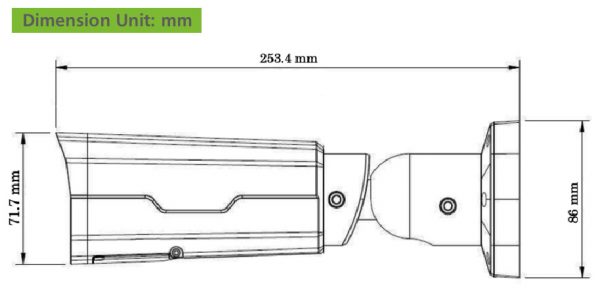

Dimensions

253.4 ×86 ×71.7 mm

Weight

1.0kg
